Appendix F: The I/O Connector (MPEG4 Cameras)

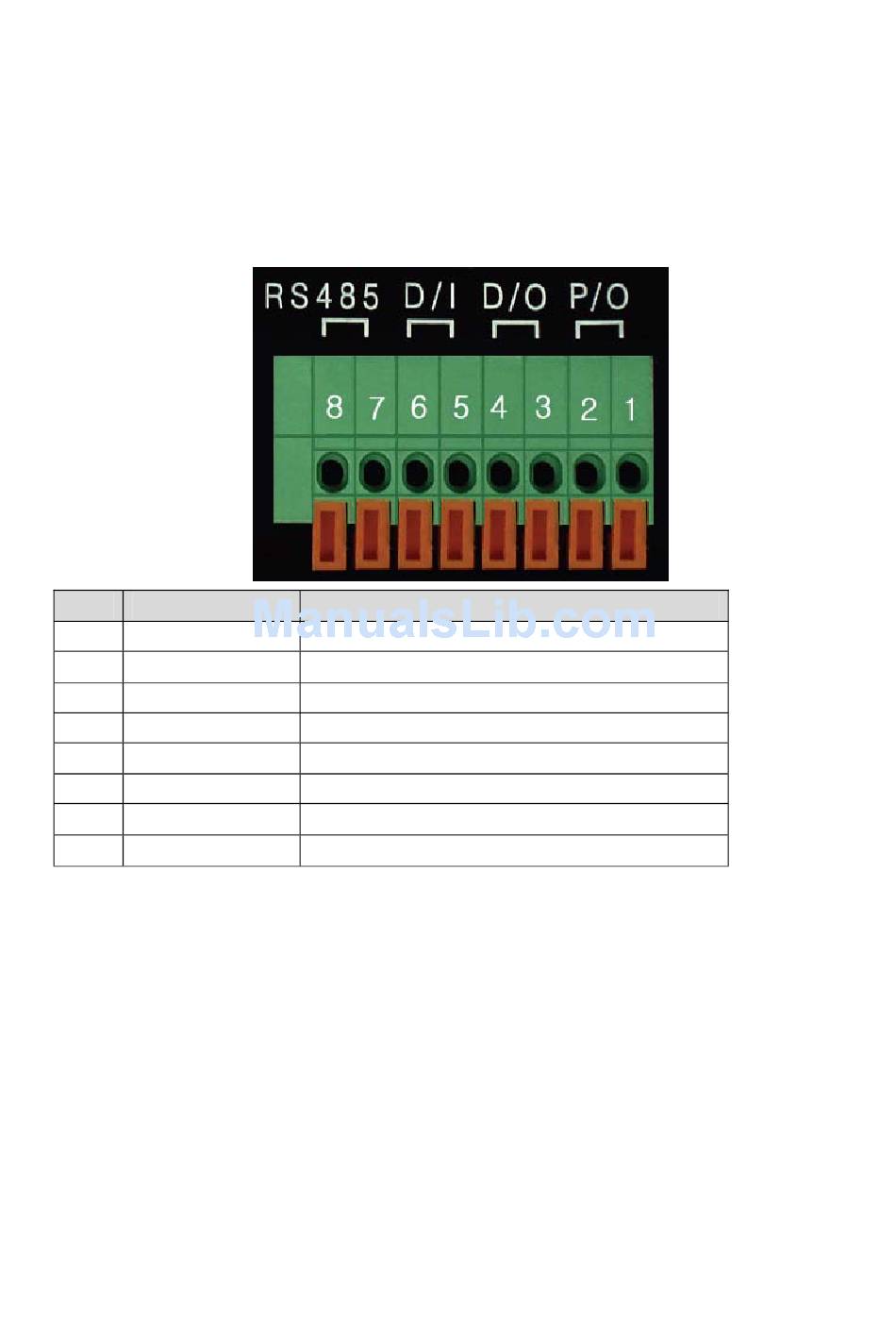

The I/O Connector provides the physical interface to a digital output and a single digital, photo-coupled
input that is used for connecting a variety of external alarm devices to the Pro Series Network Camera,
including infrared sensors, switches and alarm relays. In combination with the configurable alarm
facilities, you can quickly develop a variety of security applications that are triggered on time- or
alarm-based events.
No. Function
1 Power GND (-)
2 Power DC12V (+)
3 Digital Out (+)
4 Digital Out GND (-)
5 Digital In (+)
6 Digital In GND (-)
7 RS-485 (+)
8 RS-485 (-)
1-2 PIN
To supply external devices with power. PIN 1 is connected to the GND terminal of a device's power
and PIN 2 is connected to the positive (+) terminal. However, the external device should be less than
12 V DC and 200 mA. This is a permanent 12 V DC power source.
3-4 PIN
To supply external devices with power. PIN 4 is connected to the GND terminal of a device's power
and PIN 3 is connected to the positive (+) terminal. However, the external device should be less than
12 V DC and 200 mA. Power is only provided if an alert state has occurred in the Event Trigger
Configuration (see section 6.5).
5-6 PIN
PIN 5 and PIN 6 are connected to the signal output terminal of an external input device, such as an IR
or alarm sensor.
Description
Power for the external I/O devices (-)
Power for the external I/O devices (+)
Output for the external output devices (+)
Output for the external output devices (-)
Input to the external Input devices (+)
Input to the external input devices (-)
Not in use
Not in use
75
