Microweb PRO SERIES User Manual page 41

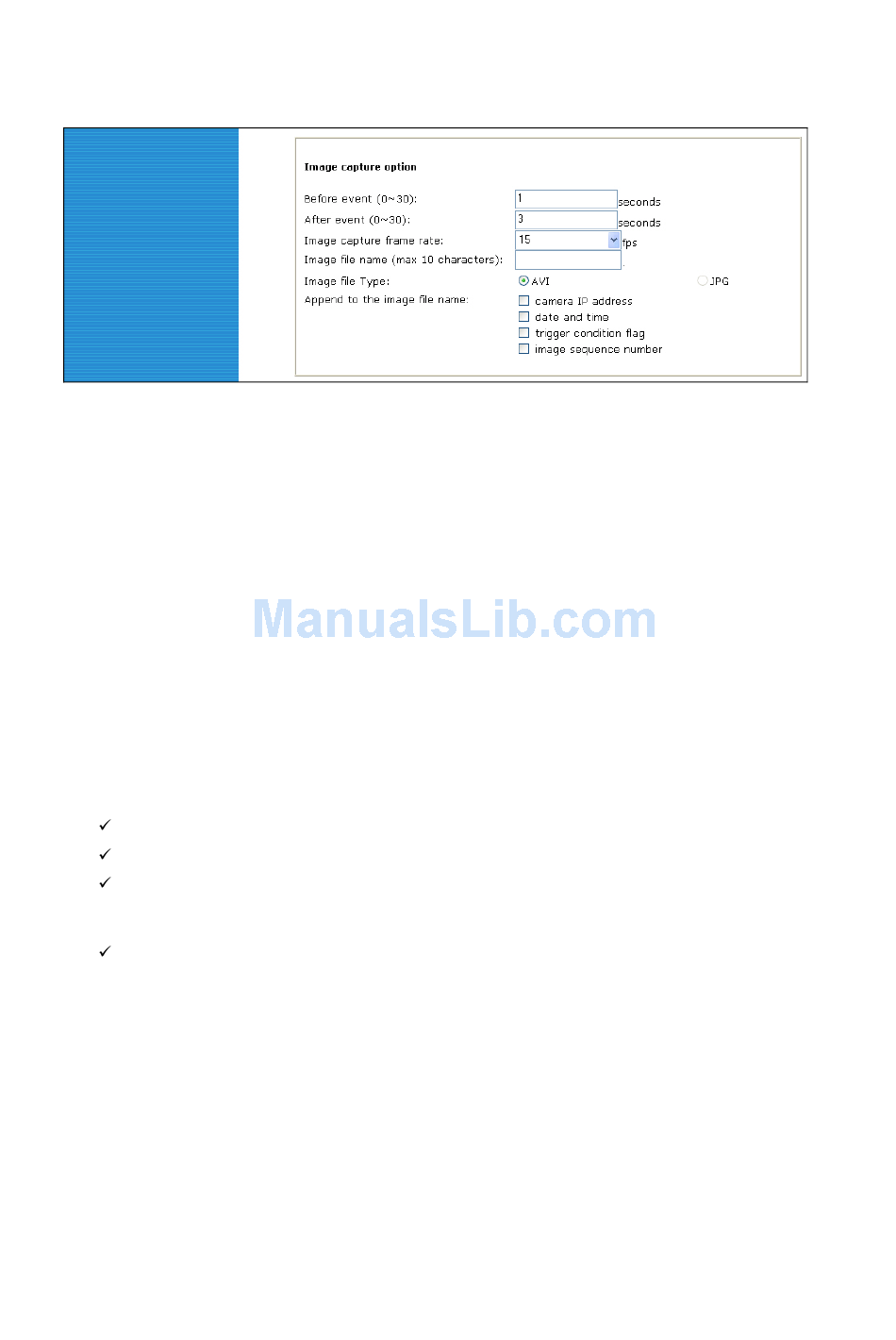

Before event:
You may set the starting time to capture an image before the event is triggered. (Input limitation is
from 0 to 30 seconds.)
After event:
You may set the finishing time to capture an image after the event is triggered. (Input limitation is
from 0 to 30 seconds.)
Image capture frame rate:
Set from 1 to 15 fps when an image is being captured.
Image file name:
You may designate the image file name to send e-mail or FPT after an image is captured. All
captured images are saved as .avi files (for example: Filename.avi).
Image file type:
You can choose between two options. AVI means that the camera transmits a video file. JPG
means that the camera transmits a series of single JPEG images.
Append to the image file name:
You may add information to the image file name.
Camera IP address (example: filename_192.168.1.19.avi).
Date and time (example: filename_20020218150030.avi).
Trigger condition flag: When selecting "Activation of digital input port," "D" may be added to
the image file name (example: filename_D.avi); when selecting "Periodically every...," "P" is
added to image file name (example: filename_P.avi).
Image sequence number: With this option, you may classify a file with the same name with
consecutive numbers from 000 to 999 (example: When you designate file name as
"camera" and select "Image sequence number," the file name appears as camera001.avi,"
"camera002.avi" and so on through "camera999.avi").
Image Capture option limitation
The configuration for the image capture option affects memory capacity. If the configuration uses
excessive memory, the warning message "Not enough memory..." will display. The total image capture
frame rate must be no more than 120 fps due to memory size. (Before event time + After event time) x
(Image capture frame rate) must be under 120.For example, if "Before event time" is 3 seconds, "After
event time" is 2 seconds and "Image capture frame" is 3 fps, the total image capture frame rate is (3 +
2) x 3 = 15 fps.
If a warning message appears, reduce the value of the option.
41
