6.6 System Configuration

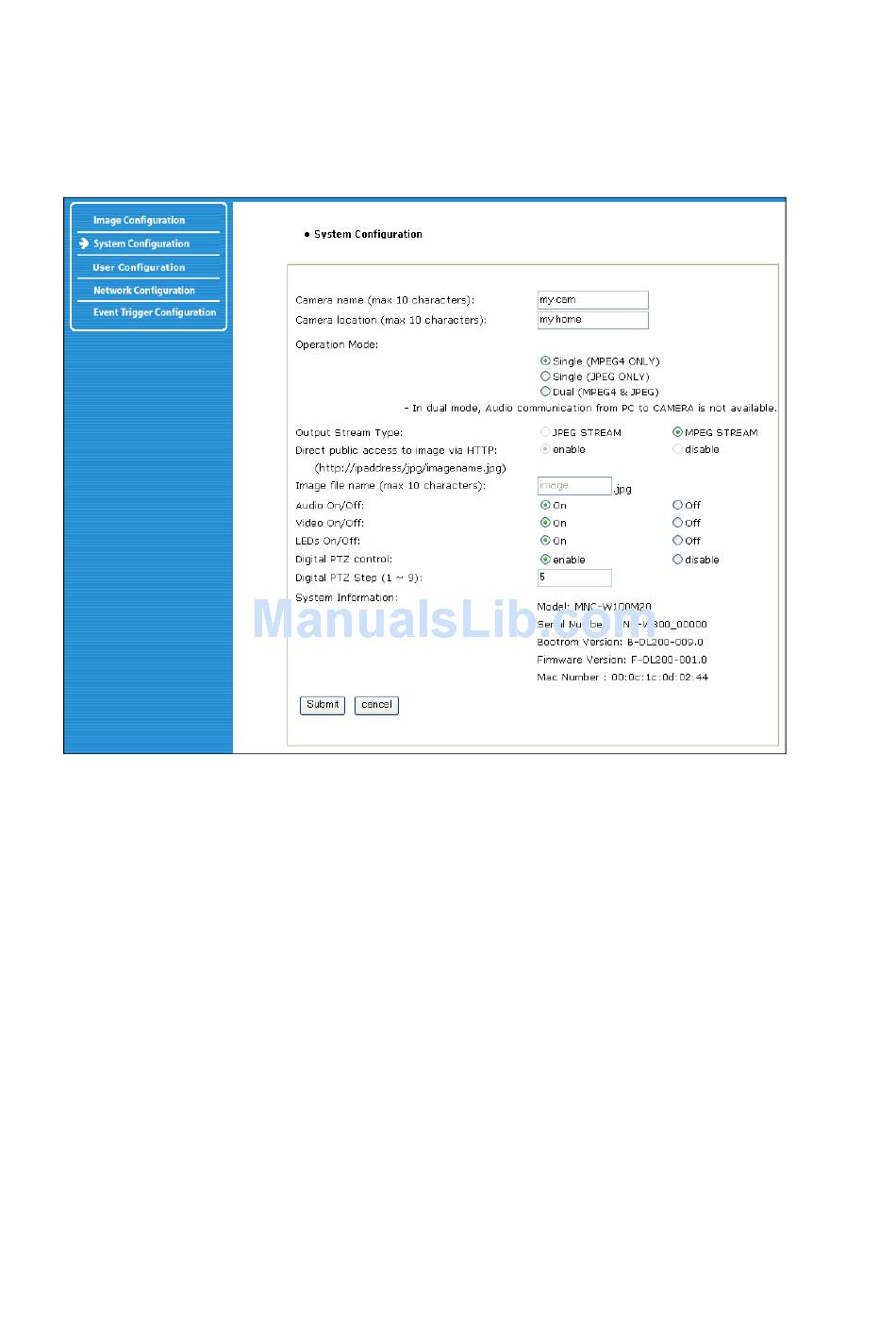

This screen is used to configure camera name, location, operation mode and system information, as
well as time configuration for the camera.
Camera Name
Define the camera name, maximum of 10 characters.
Camera Location
Define the camera location, maximum of 10 characters.
Operation Mode and Output Stream Type
There are three operation modes for the camera: Single (MPEG4 Only), Single (JPEG Only) and Dual
(MPEG4+JPEG). In Dual mode, the camera can encode and transmit both MPEG4 and JPEG images
simultaneously over the network, whereas in Single mode only MPEG4 or JPEG video will be
encoded and transmitted. In Dual (MPEG4+JPEG) mode only, the Output Stream Type is selectable
between JPEG stream and MPEG4 stream. The stream type defines which type of data is sent to
users connecting via a Web browser. Also in Dual mode, audio communication from PC to camera is
not available, whereas in Single mode (which uses MPEG4 only) bi-directional audio communication
is available.
Direct Public Access to Image via HTTP
The purpose of this function is to allow your video surveillance program to access the camera image
even if the software offers no support for MPEG4 cameras.JPEG images are only transmitted in Dual
(MPEG4+JPEG) and Single (JPEG Only) mode and are accessible through http://camera IP
(URL)/jpg/imagename.jpg. In Single (MPEG4) mode,this function is not activated. When "enabled" is
selected, anyone can access the camera imagewithout entering a username or password (example:
http://192.168.1.221/jpg/image.jpg). When "disable" is selected in order to view the image, a username
