Pan & Tilt (only certain models)
With these buttons, you can control the digital Pan Tilt Zoom of the camera. Click on "TELE" to zoom in
to the image and use the direction buttons to change the viewing area. Click on "WIDE" to zoom out to
see the entire image. This function is only available in the MPEG4 CMOS camera models.
5: Adjusting the Camera Lens

5.1 Adjusting the Focus

To get the finest image, adjust the lens focus according to your environment.
Standard Fixed Iris Lens
Before adjusting, turn the set screw counterclockwise, then turn the lens in either direction till you get
the most well-defined image edges while viewing the picture quality on your Web browser. When you
finish adjusting the lens, turn the set screw clockwise to fix it in place.
Auto-iris Vari-focal Lens
Before adjusting, turn the two set screws counterclockwise, then turn the wide-tele ring first to get the
best angle of view. After setting the angle of view by adjusting wide-tele ring, then turn the near-far ring
clockwise or counter-clockwise until you get the finest image.When you finish adjusting the lens, turn
the set screw clockwise to fix it in place.

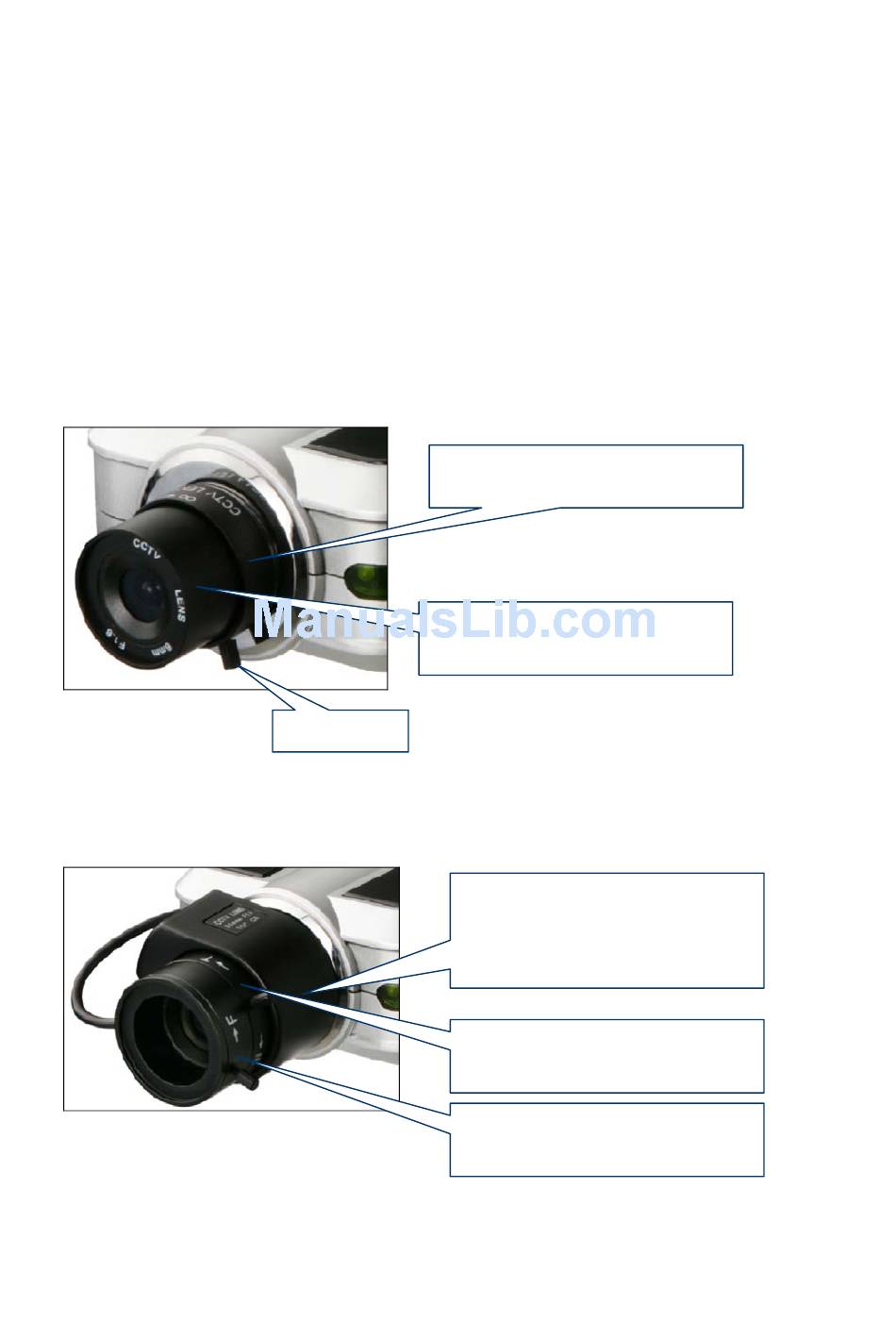

Turn this part counter-clockwise
to unscrew and replace lens
Turn this part either clockwise or
counter-clockwise until you get
the best image
Set Screw
27
Turn this part counter-clockwise
to unscrew and replace lens.
Be sure to unfix the AI lens
connector from the camera body
first.
Turn this part either clockwise or
counter-clockwise until you get
the best angle of view.
Turn this part either clockwise or
counter-clockwise until you get
the finest image.
