Microweb PRO SERIES User Manual

Pro series network camera & video server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

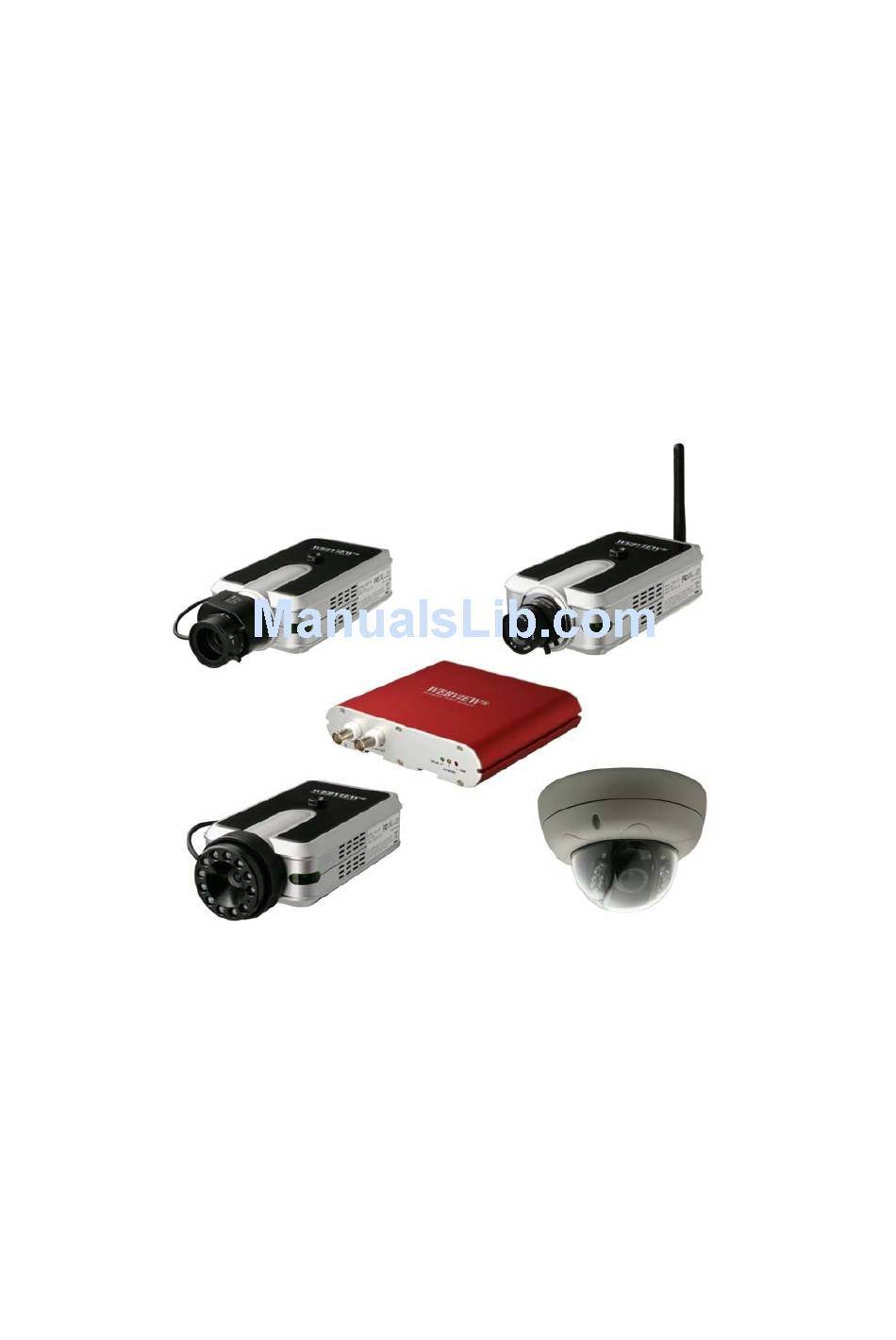

PRO SERIES Network Camera &
Video Server
USER MANUAL
Version 2.0.2
nd
Released on 2
of June, 2008
Microweb Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Microweb PRO SERIES

  • Page 1 PRO SERIES Network Camera & Video Server USER MANUAL Version 2.0.2 Released on 2 of June, 2008 Microweb Co., Ltd.

  • Page 2: Table Of Contents

    Table of Contents Safety and Regulatory Notices ....................4. Section 1: Product Overview 1.1 About the Pro Series Network Cameras and Video Servers........... 7 1.2 Main Features and Benefits .....................7 Section 2: Physical Description 2.1 Package Contents ......................8 2.2 MPEG4 CCD Camera..................... 9 2.3 MPEG4 CCD IR Camera……..................11...
  • Page 3 Section 7: PoE Support......................49 Section 8: ETSP Client Software....................50 Section 9: RTSP Video Playback ....................54 Section 10: SSL Encryption / Access via HTTPS...............56 Section 11: Remote Access to a Camera & Router Setup……..........58 Section 12: Developer Information 12.1 Software Development Kit (SDK)…………………………..........61 12.2 Direct Access to Internal JPEG…………………………..........
  • Page 4 About this Document Thank you for purchasing this WEBVIEW™ Pro Series Network Camera or Network Video Server. This user manual includes instructions for using and managing the camera on your network. Networking experience will be helpful when setting up and using this product. Updated versions of this document will be posted to www.networkipcam.com...
  • Page 5 United Arab Emirates, Yugoslavia, Zambia NTSC: Canada, Chile, Costa Rica, Cuba, Dominican Republic, Ecuador, Japan, Mexico, Nicaragua, Panama, Peru, Philippines, Puerto Rico, South Korea, Taiwan, USA. Users are asked to read the following before using the Pro Series Network Camera.
  • Page 6 1. Camera surveillance laws may differ for each country. Contact the local authorities to avoid any surveillance law violations. 2. Note that the CCD lens that comes with the Pro Series Network Camera can be damaged permanently if exposed to direct sunlight. If your application demands prolonged exposure to sunlight, you should consider equipping it with a sun visor.

  • Page 7: About The Pro Series Network Cameras And Video Servers

    Pro Series Network Cameras and Network Video Server also offer many advanced features to provide solutions such as remote surveillance, home/business security, audio/video conferencing, motion detection and more. NOTE: This user manual includes the Network Video Server whenever it refers to Pro Series Network Cameras. 1.2 Main Features and Benefits...

  • Page 8: Package Contents

    Manual, Webview Manager, etc. Power Supply AC power adapter and power cord Stand Wall & table stand* Connection (Console) Cable RS-232 cable User Manual Hard-copy book * You can use a standard camera stand or tripod for the Pro Series Network Camera.

  • Page 9: Mpeg4 Ccd Camera

    2.2 MPEG4 CCD and CMOS Camera Front View Network Activity LED Operating Status LED Power LED Power LED (Red): Once power is supplied to the camera, the red LED will light. Operating Status LED (Green): This LED indicates the camera’s operating status. Once power is supplied, the LED lights and then blinks once every second as long as the video is transmitted on the network during normal operation.
  • Page 10 MIC. NOTE: The Pro Series Network Camera is compatible with 3.5mm stereo microphones. If you are a 3.5mm mono microphone user, use the included 3.5mm stereo plug to two 3.5mm mono jack converter.

  • Page 11: Mpeg4 Ccd Ir Camera

    2.3 MPEG4 CCD IR Camera Infrared Emitter Diodes Light Sensor LED’s automatically Measures the light level and turn on in the dark activates the IR LED’s in the dark The IR camera has the exact same connectors and LED’s as the standard models. The difference is the lens and the CCD image sensor.

  • Page 12: Network Video Server

    2.4 Network Video Server Front view Video Input: To input video signal through a coaxial cable Video Output: To output video signal through a coaxial cable. On Air LED (Green): This LED indicates the Video Servers operating status. Once power is supplied, the LED lights and then blinks once every second as long as the video is transmitted on the network during normal operation.

  • Page 13: Vandal-Proof Dome Camera

    I/O Connector: To connect external devices such as infrared sensors, alarms or motion detectors (refer to Appendix F: I/O Connector). Ethernet (Network Connector): Connect 10Base-T Ethernet or 100Base-TX Fast Ethernet cable. SPK: Use to connect to an external speaker for audio communication. The audio sent over the network from a connected Video Server client can be delivered through this externally connected speaker.

  • Page 14: Section 3: Installation Summary And Examples

    See Appendix F for details. 3: Installation Summary and Examples 1. Connect the Ethernet and power to the Pro Series Network Camera. 2. Install and launch the IP Installer program on the enclosed CD. 3. Assign an IP address and network settings.
  • Page 15 Installation Example: Wired Camera LAN Switch Router Internet (WAN) Remote Access Network Cameras & Video Servers Local Access e-mail / FTP / Web Server Legend (Cable color) : - Web Browser access to camera - Access to e-mail, FTP or Web server - Transmission of AVI files by camera Installation Example: Wireless Camera Wireless...
  • Page 16 Installation Example: Network Video Server Network Video Server Analog BNC Input Network (WAN/LAN) CCTV Camera Analog BNC Output TCP/IP RJ45 Ethernet Remote Access DVR, VCR, etc.

  • Page 17: Section 4: Assigning An Ip Address And Accessing The Camera's Homepage

    4. Assigning an IP Address and Accessing the Camera’s Homepage 4.1 Connecting the Camera to a PC Connect with a direct cable (non-crossover UTP cable) when connecting the camera to a switch, hub or router. 4.2 Setting up the IP Address Using IP Installer To access the camera, you need to assign an appropriate network IP address.
  • Page 18 2. Once IP Installer is run, the panel shows every camera connected on the local network. From the cameras listed, select one to assign a new IP address (every Pro Series Network Camera has a factory default IP address).

  • Page 19: Accessing The Camera's Homepage

    - Opera (Java) - Konqueror (Java) The WEBVIEW Pro Series Network Camera supports two connection methods: ActiveX for Microsoft's Internet Explorer users on Windows systems; and Java for all other Web browsers and operating systems, including MacOS and Linux, and Windows when using a different Web browser than MS Internet Explorer.
  • Page 20 MS Internet Explorer – JPEG Stream Mode Both options, ActiveX and Java, are available in this operational mode. If you can run and install ActiveX controls, you should select ActiveX as your preferred viewing program, as it offers higher frame rates and better functions. MS Internet Explorer –...
  • Page 21 Non-MS Internet Explorer – JPEG Stream Mode Java is the only choice given. Non-MS Internet Explorer – MPEG4 Stream Mode Java is the only choice given, but the warning message tells you that even though you are able to login you won't be able to see the live image as shown in the above.
  • Page 22 router, and you will not be able to see the live image of the camera. A blocked image transfer port is the most common cause for display problems. As a rule: Whenever you can see the login page in your Web browser but no live video shows up on the main camera live screen, you should activate this option.
  • Page 23 Once the download is completed, you need to run the program by double-clicking it. You may see the following message: Click on "Run" to proceed with the installation. Click "Next" to continue with the installation.

  • Page 24: Homepage Options (Mpeg4 Cameras)

    Restart MS Internet Explorer and re-connect to the camera. 4.4 Homepage Options (MPEG4 Cameras) Once the login procedure is complete, you can view the Pro Series (MPEG4) Network Camera homepage. Below is an overview of the different pages for the different models for both Java and ActiveX.
  • Page 25 Video Size You can select a viewing image size from 0.5 to 2. This function represents a digital zoom. It does not change the physical resolution of the image. At high resolution (D1) the options "x1.5" and "x2" are not available.
  • Page 26 Administrator Menu This button is for accessing the administration menu. However, only the user who has authority as an administrator can access the page with administrator’s ID and password (see Configuring Administration Menu). Logout User can go back to the Login page by using the "Logout" button. Connected Clients Shows how many users are currently viewing the camera image.

  • Page 27: Adjusting The Focus

    Pan & Tilt (only certain models) With these buttons, you can control the digital Pan Tilt Zoom of the camera. Click on "TELE" to zoom in to the image and use the direction buttons to change the viewing area. Click on "WIDE" to zoom out to see the entire image.

  • Page 28: Replacing The Lens

    5.2 Replacing the Lens The Pro Series Network Camera is designed with a CS mount. The lens supplied with your product can be replaced with any standard C or CS lens, typically used within the surveillance industry. Follow the instructions below to replace the supplied lens with any C- or CS-type lens.

  • Page 29: Section 6: Administrator Menu

    6. Administrator Menu You can control the configurations of the camera using the administrator tools, which can be accessed only by an authorized user. If non-authorized users try gaining access, you may see a warning message "You are not an administrator." 6.1 Overview of the Administration Menu The table below provides a one-step overview of the Administrator Tools: Image Configuration...

  • Page 30: Image Configuration

    6.2 Image Configuration Rate Control The bit rate used in video encoding has a direct impact on the video quality and the bandwidth used to stream video over the network. As opposed to constant bit rate (CBR), VBR files vary the amount of output data per time segment.
  • Page 31 8 Mbps. Resolution Select the resolution for output video. Pro Series CCD Network Cameras support three types of image resolution. NTSC: D1 (720x480), VGA (640x480) and CIF (352x240); PAL: D1 (720x576), VGA (640x576) and CIF (352x288).
  • Page 32 Frame Rate Select the frame rate according to your preference. The higher value of frame rate ensures smoother video; but the higher the frame rate, the larger the network bandwidth usage. Set the size of GOP (group of pictures). MPEG4 video stream consists of continuous GOP, and one GOP consists of one "I"...
  • Page 33 De-Interlace Interlaced video is composed of two fields that are captured at different moments in time. When displayed on a typical computer screen, interlaced video frames will exhibit motion artifacts when both fields are combined and displayed at the same moment (today's computer screens are progressive scan monitors which display the image line by line from top to bottom without interlacing) These motion artifacts are visible in the form of horizontal lines.
  • Page 34 Contrast Set the image contrast in the range of 0 to 200. Most sources of visible light contain energy over a band of wavelengths. Hue is the wavelength within the visible-light spectrum at which the energy output from a source is greatest. Normally there is no need to change the default value (8), but if you wish to experiment with different hue values to achieve different effects, the camera offers 15 values to choose from.

  • Page 35: Network Configuration

    Auto White Balance Enable or disable Auto White Balance. If set to "disable," you can manually control the amount of red, green and blue color in the input fields below. Saturation Set the saturation value of images. Higher saturation values generate deeper colors (input values ranging from 0 to 9).
  • Page 36 8000 to 65535.) PTZ Port Number NOTE: PTZ control is not available on these Pro Series Network Camera models. ETSP Port Number To set the port number for ETSP (Event Trigger Setting Saving Program). The default is "11000";...
  • Page 37 1st, 2nd DNS Server Address To map between an IP address and domain name, you should enter your DNS server address. If a user sets the DNS server into the camera, users can configure the SMTP server, FTP server and NTP server with its domain name.

  • Page 38: User Configuration

    dynamic IP address complicates remote access since you may not know what your current WAN IP address is when you want to access your network over the Internet. The solution to the dynamic IP address problem comes in the form of a dynamic DNS server. ID, Password Enter the ID and password to find the registered camera on the DDNS server.

  • Page 39: Event Trigger Configuration

    Authority None – no access to the camera is possible.Viewing – access to the live image, but no access to the administrator menu. All – access to the live image and access to the administrator menu. PTZ (Only Digital PTZ Camera models) Activate this option if you wish to grant the user authority to use the Pan-Tilt-Zoom control on the camera live video page.
  • Page 40 Activate the camera's internal motion detection using this option. The camera does a real-time frame-by-frame comparison of the image material and can trigger an alert if it detects motion. The camera does not have an IR motion detection sensor. It relies on a frame-by-frame comparison, and, therefore, the internal motion detection cannot be used at night when no light is present.
  • Page 41 Before event: You may set the starting time to capture an image before the event is triggered. (Input limitation is from 0 to 30 seconds.) After event: You may set the finishing time to capture an image after the event is triggered. (Input limitation is from 0 to 30 seconds.) Image capture frame rate: Set from 1 to 15 fps when an image is being captured.
  • Page 42 Trigger Output This is to configure digital output states and control script. The Pro Series Network Camera sends captured images via e-mail or an FTP server when connected external sensors detect events. Supply voltage to output port for xxx seconds.

  • Page 43: System Configuration

    6.6 System Configuration This screen is used to configure camera name, location, operation mode and system information, as well as time configuration for the camera. Camera Name Define the camera name, maximum of 10 characters. Camera Location Define the camera location, maximum of 10 characters. Operation Mode and Output Stream Type There are three operation modes for the camera: Single (MPEG4 Only), Single (JPEG Only) and Dual (MPEG4+JPEG).
  • Page 44 and password must be given (example: http://guest:guest@192.168.1.221/jpg/image.jpg). Image File Name This option is used to for accessing the JPEG images with ".jpg" extensions. The file name should be less than or equal to 10 characters. Audio On/Off Activate or deactivate the camera's audio function. This option can be important in situations in which, by law, you are not allowed to do video surveillance that includes audio and you are required to install a camera without audio support.

  • Page 45: Wireless Configuration

    Synchronized with NTP Server The camera automatically configures the date and time through the NTP (network time protocol) server. The NTP server is based on Greenwich time. Select the NTP server, IP address and time zone to set the date and time automatically, then click "submit." NOTE: If this procedure doesn’t work, it could be due to a network error.

  • Page 46: Wireless Setup

    6.7.1 Wireless Setup Select the operation mode to determine the type of wireless communication for the Pro Series Wireless Network Camera: Infrastructure or Ad hoc. The default setting is Infrastructure. Set the service area name (SSID) in accordance with the access point settings to which the camera should connect.
  • Page 47 Example 2: If your AP uses 128-bit encryption, the default key 2, authentication is shared and the key value is 01234567890123456789012345. Your wireless camera WEP setting will be: NOTE: All four WEP keys need to be set up the exactly same way they are defined in your wireless access point.
  • Page 48 An SSID is also referred to as a network name because, essentially, it is a name that identifies a wireless network. To connect a wireless client such as a Wireless Pro Series Network Camera to a specific AP, the user of the camera should specify the SSID name in the camera’s wireless IP setting.

  • Page 49: Section 7: Poe Support

    7. PoE (Power over Ethernet) Support Power over Ethernet, or PoE, technology describes a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. This technology is useful for powering IP telephones, wireless LAN access points, network cameras, remote network switches, embedded computers, and other appliances where it would be inconvenient, expensive (mains wiring must often be done by qualified and/or licensed PoE Switch / Mid-Span / End-Span...

  • Page 50: Section 8: Etsp Client Software

    8. ETSP Client ETSP stands for "Event Triggered Saving Program." This utility allows you to automatically record video on the HDD of your computer whenever the camera detects a motion. The latest version of ETSP Client is available on networkipcamera.com as a free download. Getting Started To use ETSP Client, you first need to activate the ETSP option in the Event Trigger Configuration of the camera.
  • Page 51 Click "Add". Click "Save" to save the settings and open the main screen of ETSP Client. Click on "Login" to start the monitoring and recording process.
  • Page 52 ETSP Client is now connected to the camera.

  • Page 54: Section 9: Rtsp Video Playback

    9. RTSP Video Playback RTSP stands for "Real Time Streaming Protocol ." RTSP enabled video streaming clients, such as MPlayer, can access the video data stream of the camera directly and you can watch the live video without connecting to the camera with your Web browser first. MPlayer is freeware. RTSP Playback in MPlayer for Windows 1.
  • Page 55 3. In MPlayer, click on OPEN -> URL 3. Enter the correct address to your camera URL: rtsp://guest:guest@192.168.0.221/mp4media guest:guest = valid user name and password 192.168.0.221 = IP address or web address of your camera mp4media = fixed part of the URL...

  • Page 56: Section 10: Ssl Encryption / Access Via Https

    Note: RTSP support is limited to the Pro Series Dual Mode IP Camera models. MNC-L10M20/MNC-W10M20 and MNS-102 do not support RTSP. RTSP support may not work with all RTSP enabled clients; e.g., RTSP is incompatible to Microsoft's Windows Media Player.
  • Page 57 Click "Continue to this website (not recommended)" to proceed. Click on "View Certificate" to view the details. The image on the left shows a screenshot of MS Internet Explorer 6.x. The certificate must be issued to www.networkipcamera.com. You may be seeing the warning below: This message is shown, whenever a web site with secure and non-secure elements is shown.

  • Page 58: Section 11: Remote Access To A Camera & Router Setup

    11. Remote Access to a Camera & Router Setup To gain access to a camera in your local network over the Internet, certain ports need to be opened and forwarded in your router. The camera uses the following ports by default: - Web Server port = 80 - Image Transfer port = 40001 -Audio Send port = 40008 -Audio Receive port = 40008...
  • Page 60 Setup Example 2: Wireless Super G Router Click on Access -> Virtual Server. Check (x) Enable Virtual Server. Enter a descriptive name and the public and private ports, then select TCP as the protocol and enter the IP address of the camera as the LAN Server.

  • Page 61: Section 12: Developer Information

    Setup Example 3: Wireless G Broadband Router, 4 Port Broadband VPN Router, 8 Port Broadband VPN Router and Dual WAN Router. Click on NAT -> Port Forwarding. Enter a rule name, external port range, camera IP address and internal port range. The above example shows port 80. Click "Add" to save the rule. Repeat the steps for the other ports.

  • Page 62: Direct Access To Internal Jpeg

    image settings and network parameters remotely. Web Integration Documentation to integrate the live video of the camera in an HTML page that can be viewed with any standard Web browser. MS Visual Studio (C++, Visual Basic) Documentation helpful for Windows program developers to assist in writing custom applications for the WEBVIEW network camera.

  • Page 63: Appendix A: Frequently Asked Questions (Faq)

    often the only image format accepted by courts, who consider MPEG4 compression too lossy. Motion-JPEG video, on the other hand, cannot compress video data as effectively as MPEG4 does. Thus, the resulting video stream requires a higher network bandwidth. To utilize the Motion-JPEG stream, first enable dual mode streaming in the camera's system configuration.
  • Page 64 Windows XP SP2 is installed and the integrated firewall is active. Deactivate the Windows firewall temporarily or set up the camera without IP Installer. The network connection to the camera is not working. Verify that the camera has an active network link.
  • Page 65 requires different settings, LOGIN is the preferred choice. Other options are PLAIN and DIGEST-MD5. If your server is an Open Relay, you do not need to activate SMTP authentication. b) Camera Event Trigger Configuration 7. The camera does not send any e-mails. Why? 1.
  • Page 66 User ID (max 30 characters) Enter a valid FTP server user name. Password (max 30 characters) Enter a valid FTP server password. Directory (max 30 characters) Enter the directory on the server where the images are to be uploaded. FTP Rename enable Activate this option if you want the server to rename the image after the upload is completed.

  • Page 67: Appendix B: Accessing The Camera Via Hyperterminal

    Open "Internet Options" in MS Internet Explorer and then click on the "Security" tab to view the setting. (If set on "High," ActiveX would have a problem downloading.) You can manually install the ActiveX control as described in section 4.3 or change the security settings to a lower level. 12.
  • Page 68 3. Configure the parameters as shown below: You can see real-time messages generated by the camera operating system which can be recorded by going "Transfer" clicking "Capture Text." In case of a camera malfunction, you can record this log should the technical support team ask for the information.

  • Page 69: Appendix C: Troubleshooting

    IP address is accessible. It also provides a particularly useful method for confirming addressing conflicts with your Pro Series Network Camera on the network. After disconnecting your camera, follow the instructions below in association with Symptoms, Possible Causes and Remedial Actions and run the PING utility to troubleshoot TCP/IP problems on your network.
  • Page 70 CCD sensor. Re-position vertical white becomes your camera into a more shaded location immediately. lines appears overloaded NOTE: Damage caused to a Pro Series Network across the when the light Camera through over-exposure to direct sunlight or image is too bright, as halogen light is not covered under the product warranty.

  • Page 71: Appendix D: Utilizing Ip Addresses On A Local Network

    Noisy Video images Improve the lighting conditions. If this doesn’t help and images may be noisy if the lighting conditions within the installation area can not you are using be improved, consider replacing the basic lens with a the camera in a more sensitive lens.
  • Page 72 Among the numbers, 0 is used for Network ID, 1 is used for Router IP (gateway address)and 255 is used for a broadcast address. The numbers from 2 to 244 are IP addresses that can be assigned to a Pro Series Network Camera, PC, etc. Network ID: Identifies a network. Generally the first number assigned is Network ID.

  • Page 73: Appendix E: Updating Firmware

    Gateway Address: xxx.xxx.xxx.129 Subnet Mask: 255.255.255.128 Broadcast Address: xxx.xxx.xxx.225 IP addresses: xxx.xxx.xxx.130 -xxx.xxx.xxx.256 To use as four sub-networks (1/4 + 1/4 + 1/4 + 1/4) Sub-Network ID: xxx.xxx.xxx.0 Gateway Address: xxx.xxx.xxx.1 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.63 IP addresses: xxx.xxx.xxx.2 - xxx.xxx.xxx.62 Sub-Network ID: xxx.xxx.xxx.64 Gateway Address: xxx.xxx.xxx.65 Subnet Mask: 255.255.255.192...
  • Page 74 Install New Firmware Camera firmware can be upgraded via the LAN or remotely over the Internet. Confirm that the camera is connected to your PC. (As long as you can access your camera homepage, you can process an upgrade.) Execute the newly updated firmware and select the firmware file via the "Firmware Open" button.

  • Page 75: Appendix F: The I/O Connector

    The I/O Connector provides the physical interface to a digital output and a single digital, photo-coupled input that is used for connecting a variety of external alarm devices to the Pro Series Network Camera, including infrared sensors, switches and alarm relays. In combination with the configurable alarm facilities, you can quickly develop a variety of security applications that are triggered on time- or alarm-based events.

  • Page 76: Appendix G: Dynamic Domain Name System (Ddns)

    Appendix G: Dynamic Domain Name System (DDNS) Your Internet service provider (ISP) provides you with at least one IP address that you use to connect to the Internet. The address you get may be static, meaning it never changes, or dynamic, meaning it’s likely to change periodically.
  • Page 77 3. After you register with an ID/password normally, you can see the “Manage” page. NOTE: ods.org service is not for free. If you did not paid, click this page and follow instructions to pay for it in advance, or you can’t utilize the service. 3.
  • Page 78 then select ods.org for the domain. Otherwise, refer to the premium service. NOTE: After completing the ODS DDNS settings, complete the DDNS registration on network configuration of administrator menu of the camera. Refer to Section 6.3. How to Use the DynDNS DDNS Server 1.
  • Page 79 3. Fill your information in red circles and press “Create Account” button. 4. You will see account created message as follows.
  • Page 80 5. You will get a e-mail like bellows, then click on URL in red circle. NOTE: Confirm in 48 hours or your account will be deleted from the DDNS server. 6. Click on “Login” and log in with your user ID and password. 7.
  • Page 81 5. After successful registration, registered information will be shown as bellows. NOTE: After having registered completely with DDNS server, do the DDNS settings for the camera. DDNS Registration for the Pro Series Network Camera 1. After setting up ODS or DynDNS, open network configuration page of administrator menu.
  • Page 82 3. In the DDNS Registration section, a. click “enable”, b. click on the DDNS Server Box, c. select the DDNS server (ODS or DynDNS) you want. d. fill your registered user ID in. e. fill your registered password in g. press submit button NOTE: Fill in with full domain name like “intellinet.dyndns.org”.

  • Page 83: Appendix H: Reinstating The Factory Default Settings

    Appendix H: Reinstating the Factory Default Settings This information details how to set the default settings for the Pro Series Network Camera. In certain circumstances, it may be necessary to restart or reinstate the factory default settings for your camera.

  • Page 84: Appendix I: Glossary Of Terms

    Appendix I: Glossary of Terms ActiveX -A control (or set of rules) used by a browser. ActiveX controls are often downloaded and installed automatically as required. ARP -Address Resolution Protocol. A method for finding a host's Ethernet address from its Internet address.

  • Page 85: Appendix J: Product Specifications

    Wizard -A program designed specifically to guide the user through a procedure. Typically used for installation and configuration. InstallShield Wizard is required to download ActiveX manually. Appendix J: Product Specifications Pro Series CCD Network Camera MPEG4/M-JPEG Dual Mode, Sony Super HAD CCD, Day/Night, 2 Way Audio, PoE, NTSC/PAL Model : MNC-L200 Standard Version MNC-L200TDN True Day &...
  • Page 86 User manual • External power adapter • Software CD Pro Series Wireless Network Camera Wireless G MPEG4/M-JPEG Dual Mode, Sony Super HAD CCD, Day/Night, 2 Way Audio, PoE, NTSC/PAL Model: MNC-W200 Standard Version Model: MNC-W200TDN True Day & Night Version...
  • Page 87 • IEEE 802.3 (10Base-T Ethernet) • IEEE 802.3u (100Base-TX Fast Ethernet) • IEEE 802.3af (Power over Ethernet) General • 32-bit ARM9 RISC CPU • 16 MByte video frame buffer • 8 Mbyte flash memory • 32 Mbyte SDRAM • Supported image resolutions: NTSC D1 (720 x 480), PAL D1 (720 x 576), VGA, CIF •...
  • Page 88 External power adapter • Software CD • Camera Bracket Pro Series Night Vision Network Camera MPEG4/M-JPEG Dual Mode, Sony Super HAD CCD, Night Vision with IR Lens, 2 Way Audio, PoE, NTSC/PAL Model: MNC-L200IR Model: MNC-W200IR – Wireless G Specifications Standards •...
  • Page 89 - Mozilla 1.x, Mozilla Firefox (Java) - Netscape Navigator 6.0 or higher (Java) - Opera (Java) - Safari (Java) - Konqueror (Java) Package Contents • Pro Series Night Vision Network Camera • User manual • External power adapter • Software CD •...
  • Page 90 Pro Series Digital PTZ Network Camera MPEG4/M-JPEG Dual Mode, 2.0 Mega Pixel CMOS, 2 Way Audio, PoE, 5X Digital Zoom & Pan Tilt Operation Model: MNC-L100M20 Model: MNC-W100M20 – Wireless G Specifications: Standards ● IEEE 802.3 (10Base-T Ethernet) ● IEEE 802.3u (100Base-TX Fast Ethernet) ●...
  • Page 91 - Netscape Navigator 6.0 or higher (Java) - Opera (Java) - Safari (Java) - Konqueror (Java) Package Contents ● Pro Series Digital PTZ Network Camera ● User manual ● External power adapter ● Software CD ● Camera Bracket Vandal Dome Network Camera MPEG4/M-JPEG Dual Mode, True Day/Night, Vandal &...
  • Page 92 • Vandal Dome Network Camera • User manual • External power adapter • Software CD Pro Series Network Video Server MPEG4/M-JPEG Dual Mode, 2 Way Audio, PoE, NTSC/PAL Model: MNS-202 Specifications Standards • IEEE 802.3 (10Base-T Ethernet) • IEEE 802.3u (100Base-TX Fast Ethernet) •...
  • Page 93 - Safari (Java) - Konqueror (Java) Power • External power adapter: 12 V DC, 1.5 A • Power consumption: 6.0 Watts (maximum) Package Contents • Pro Series Network Video Server • User manual • External power adapter • Software CD...
  • Page 94 WEBVIEW™ offers a complete line-up of network video products and solution. Ask your local dealer for more information or visit www.networkipcam.com Copyright © Microweb Co., Ltd. All products mentioned are trademarks or registered trademarks of their respective owners.
