- Page 1 Essential Series YDME - 50...
- Page 2 Essential Series Essential Series YDME - 50 YDME - 50 Installation 1. Hole Drilling 1.1 Draw the center lines 1.3 Drill holes on the door faces Center line of door thickness Center line of handle From nished door, measure desired height Tips: Drill halfway from each side (950mm as recommended) on door.
- Page 3 Essential Series Essential Series YDME - 50 YDME - 50 2. Lock Installation 3. Strike Plate Installation 2.1 Install the latch 3.1 Locate the strike plate 3.2 Open the hole on the door frame with a chisel Match the strike plate on the latch properly by your hand as the above picture shows.
- Page 4 Essential Series Essential Series YDME - 50 YDME - 50 Operation Instruction 2.2 Changing Code (Master Code or User Code) 1. Important tips: Press “0” 1.1 The factory defalut master code is “11111111”. Please change the master code on the initial use refering to 2.5. After the master code is Press “*”...
- Page 5 Essential Series Essential Series YDME - 50 YDME - 50 Operation Instruction 2.8 Deleting All DIY Card User 2.5 Deleting All Code User Press “6” Press “3” “*” “#” Master Code Master Code “#” “#” Ex a m pl e 2.6 Enrolling DIY Card User 2.9 Enabling/ Disabling Passage Mode Press “5”...
- Page 6 Essential Series YDME - 50 Solutions for Common Error Phenomenon Cause Solution Four very short beeps sound Low battery voltage Change the batteries when opening the door No response when pressing No battery Change the batteries the keypad Ex a m pl e Fail to enter the enrollment l.
Need help?
Do you have a question about the Essential YDME-50 and is the answer not in the manual?
Questions and answers
초기 비밀번호인 '11111111'을 눌렀는데 작동이 안됩니다. 초기 비밀번호를 알 수있는 방법을 가르쳐주세요.
To reset the Yale Essential YDME-50 lock, follow these steps:
1. Connect the power wire on the front lock body with the batteries.
2. Press and hold the RESET button on the rear metal plate of the front lock body using a small stick for a few seconds.
3. Press any key to wake up the lock.
4. The operation is successful when you hear a confirmation sound, and all memory is cleared.
This process resets the lock, including the initial password.
This answer is automatically generated
@Mr. Anderson
I can't find the reset button

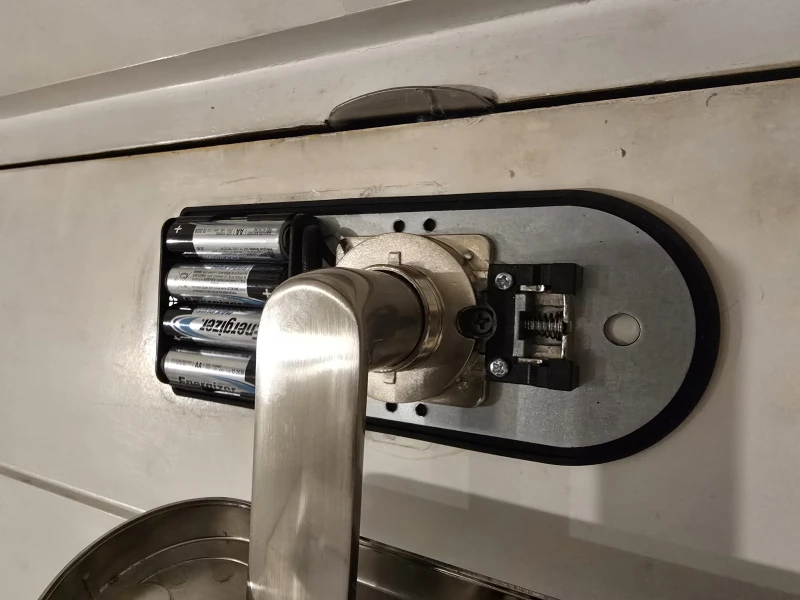

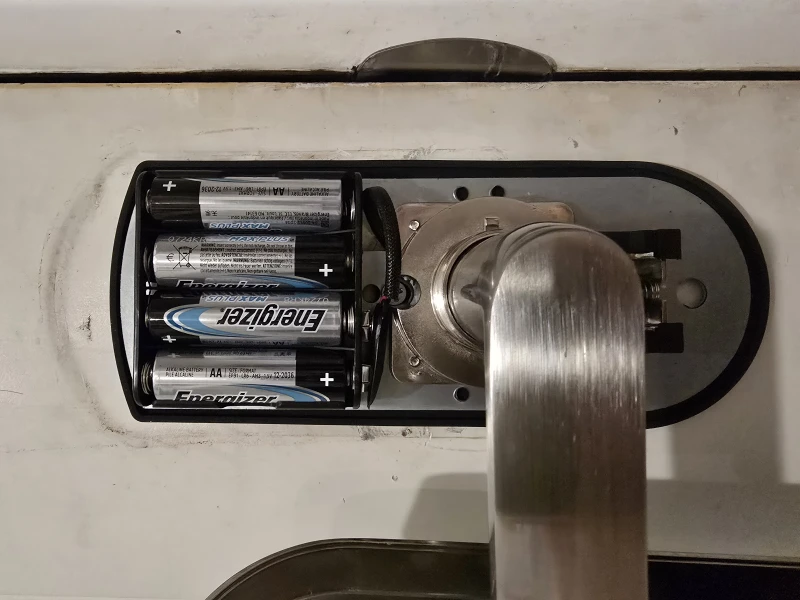

The reset button on the Yale Essential YDME-50 is located on the rear metal plate of the front lock body.
This answer is automatically generated
