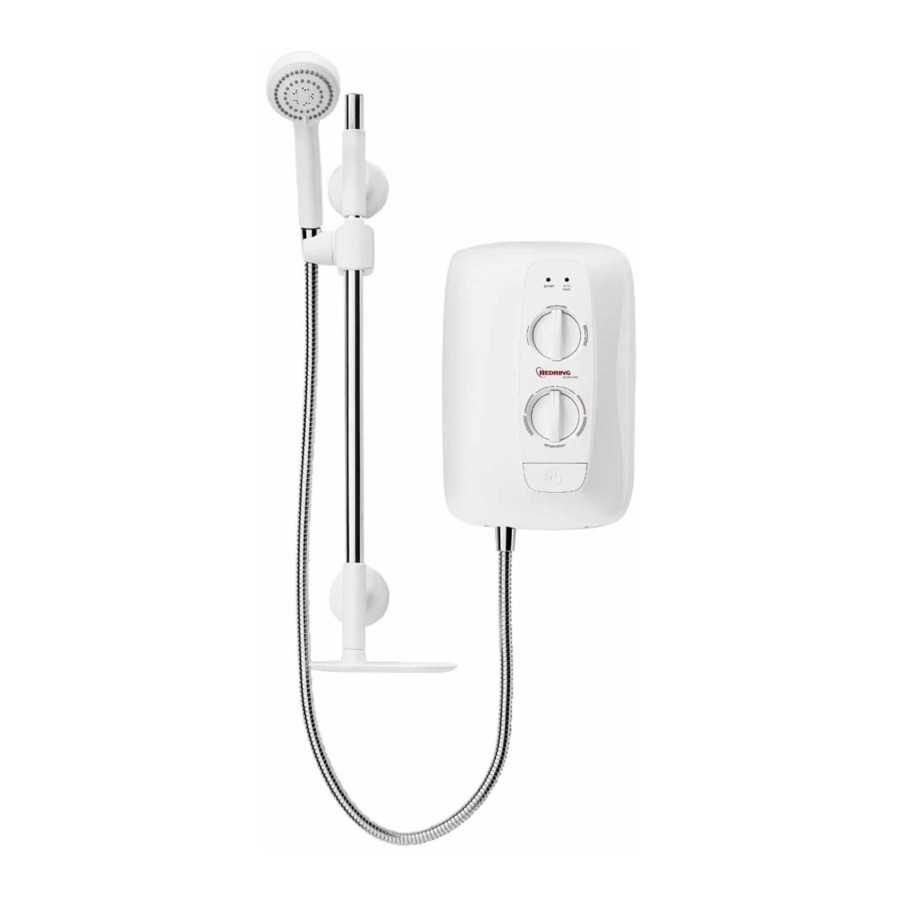

Redring Expressions 500S Installation And User Manual

HOW TO USE YOUR EXPRESSIONS 500S SHOWER (SUMMARY)

1. Ensure the electricity and water are turned on to the unit.
2. Press the start / stop button "B".
This will turn the shower on, the water will flow and the
indicator lights will glow showing chosen Power Selection.
We recommended that you do not enter the water spray
during this period, even if the shower has just been used.
3. Knob "A" controls the power selection.
Select "High", "Med (medium)" or "Cold"
4. If the water is not at your desired showering temperature,
turn knob "C" a small amount until you reach the
desired showering temperature.
Turn clockwise (follow blue arrows) for cooler .
Turn anti-clockwise (follow red arrows) for warmer.
As a helpful guide the knob position is indicated by a number being displayed in Window "D".
On the scale "1" is the coolest, whilst "9" is the hottest.
5. When you have finished showering, press the start / stop button "B" again.
6. Water will continue to flow for up to 7 seconds before switching off.
This reduces the temperature of the water in the tank for the next user.
The indicator lights will go out.
7. Wait for the water to stop, switch off the electricity supply at the ceiling switch or local isolator.
Notes
Wait 20 seconds for the temperature to stabilise after each adjustment.
The indicator lights illuminate when the heaters are on and, if the shower has been
recently used, they may take up to 20 seconds to come on.
During this time the water may go from very hot to cold before stabilising.
The position of knob "C" will be approximately the same each time the shower is
used, varying only with incoming water temperature or pressure changes
(e.g. you will only need to change from summer to winter).
During normal operation, if an overheated water temperature is sensed then the
heater will switch off and the "Overheat" light will illuminate.
Water will continue to flow and cool down before the heater switches back on again.
IMPORTANT WARNINGS!
DO NOT SWITCH THE APPLIANCE ON IF YOU SUSPECT IT OF BEING FROZEN.
WAIT UNTIL YOU ARE SURE IT HAS THAWED OUT.
DO NOT OPERATE THE APPLIANCE IF WATER DISCHARGES FROM THE PRESSURE RELIEF
VALVE. MAINTENANCE IS REQUIRED BEFORE THE APPLIANCE CAN BE SAFELY USED.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN AND
THE INFIRM) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES,
OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION
OR INSTRUCTION CONCERNING USE OF THE APPLIANCE
BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY
DO NOT PLAY WITH THE APPLIANCE.
We offer a technical advisory service on the telephone: RING 0844 372 7766 (UK ONLY)
(A4) Leaflet No. 555-2138-01e
12
REDRING EXPRESSIONS
SMART TECHNOLOGY
ELECTRIC SHOWER
Installation and User Guide
IMPORTANT:
This booklet should be left with the user after
installation and demonstration
500S
