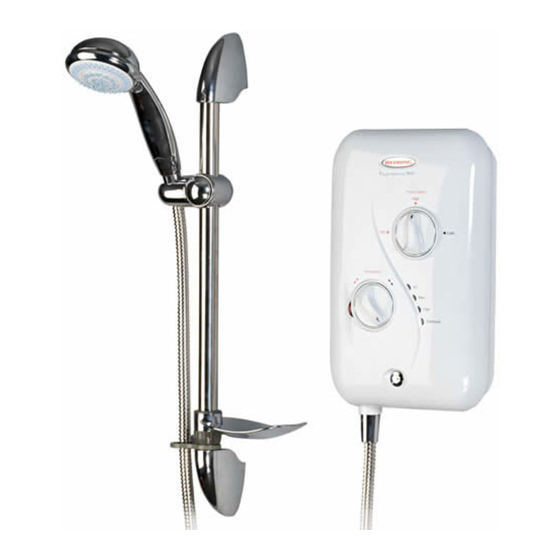

Installation and User Guide
IMPORTANT:
This booklet should be left with the user after
installation and demonstration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Expressions 500S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redring Expressions 500S

Summary of Contents for Redring Expressions 500S

  • Page 1 500S REDRING EXPRESSIONS SMART TECHNOLOGY ELECTRIC SHOWER Installation and User Guide IMPORTANT: This booklet should be left with the user after installation and demonstration...

  • Page 2: Table Of Contents

    What to do if things go wrong (2) Professional Service _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6 Redring After Sales Service _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6...

  • Page 3: How To Use Your Expressions 500S Shower (Detailed)

    HOW TO USE YOUR EXPRESSIONS 500S SHOWER (DETAILED) Ensure the electricity and water are turned on to the unit. Your shower has 2 control knobs (see diagram 1). Knob “A” controls the 3 power settings. The most popular is “High”.

  • Page 4: How Your Expressions 500S Shower Works

    WARNING: CONSIDERATION SHOULD BE GIVEN TO SUPERVISING THE YOUNG, ELDERLY AND THE INFIRM WHILST THEY USE THIS SHOWER. HOW YOUR EXPRESSIONS 500S SHOWER WORKS 1. Water is heated instantaneously as it flows over the heating elements in the copper cylinder (diagram 2).

  • Page 5: Troubleshooting

    HOW TO MAINTAIN YOUR EXPRESSIONS 500S SHOWER This will be indicated by the middle power setting indication lights flickering and going out. It is recommended that the shower unit and hose etc. be cleaned using a soft cloth and that the use of abrasive or solvent cleaning fluid be avoided.

  • Page 6: What To Do If Things Go Wrong (2) Professional Service

    “B” is pressed. Check circuit through shutdown PCB. If defective then replace. Power supply not reaching shower. REDRING AFTER SALES SERVICE We offer a technical advisory service on the telephone to contractors and other customers with problems in the field.

  • Page 7: Fixing Shower To The Wall

    Model Number: 53-67_ _ _ _ _ _ _ _ _ _ _ _ _ Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ HOW TO INSTALL YOUR EXPRESSIONS 500S SHOWER WARNING: ALL WIRING AND INSTALLATION MUST BE SUPERVISED BY A SUITABLY QUALIFIED PERSON.
  • Page 8 6. Decide the position of entry of the cold water pipe into the unit. If top, cut away the backplate. If rear, please read the section on plumbing. If bottom, remove the front cover (complete with knobs) and cut away the detachable corner section as shown.

  • Page 9: Electrical

    7. The shower is designed to have an open outlet and should only be used with ”Redring” recommended fittings. Do not connect the handset until after the shower front cover and corner section are fitted. WARNING: DO NOT FIT A TAP ON THE SHOWER OUTLET.
  • Page 10 In the main body of the shower, turn the “Numbered Dial” fully clockwise until it is at the position shown. Note:- this instruction should be used if the “Drive Dial” becomes accidentally dislodged. Fit the front cover of the shower to the main body. Ensuring that the knobs correctly engaged to their mating component.

  • Page 11: Additional Accessories And Spare Parts

    Curtain and Rail Pack Curtain and Rail Pack with Non-Slip Mat Additional accessories and spare parts can be supplied against any Credit or Debit cards from Redring Sales Hotline 08709 000420 GUARANTEE AND CONTACT DETAILS Cat No. 83792578 Front Cover Cat No. 93792452 Tank-Base Assy (7.2kW)

  • Page 12: How To Use Your Expressions 500S Shower (Summary)

    Full details of terms and conditions are available on request from:- HOW TO USE YOUR EXPRESSIONS 500S SHOWER (SUMMARY) 1. Ensure the electricity and water are turned on to the unit. 2. Press the start / stop button “B”. This will turn the shower on, the water will flow and the indicator lights will glow showing chosen Power Selection.
  • Page 13 During normal operation, if an overheated water temperature is sensed then the heater will switch off and the “Overheat” light will illuminate. The water will continue to flow and cool down before the heater switches back on again. IMPORTANT WARNINGS! DO NOT SWITCH THE APPLIANCE ON IF YOU SUSPECT IT OF BEING FROZEN.
