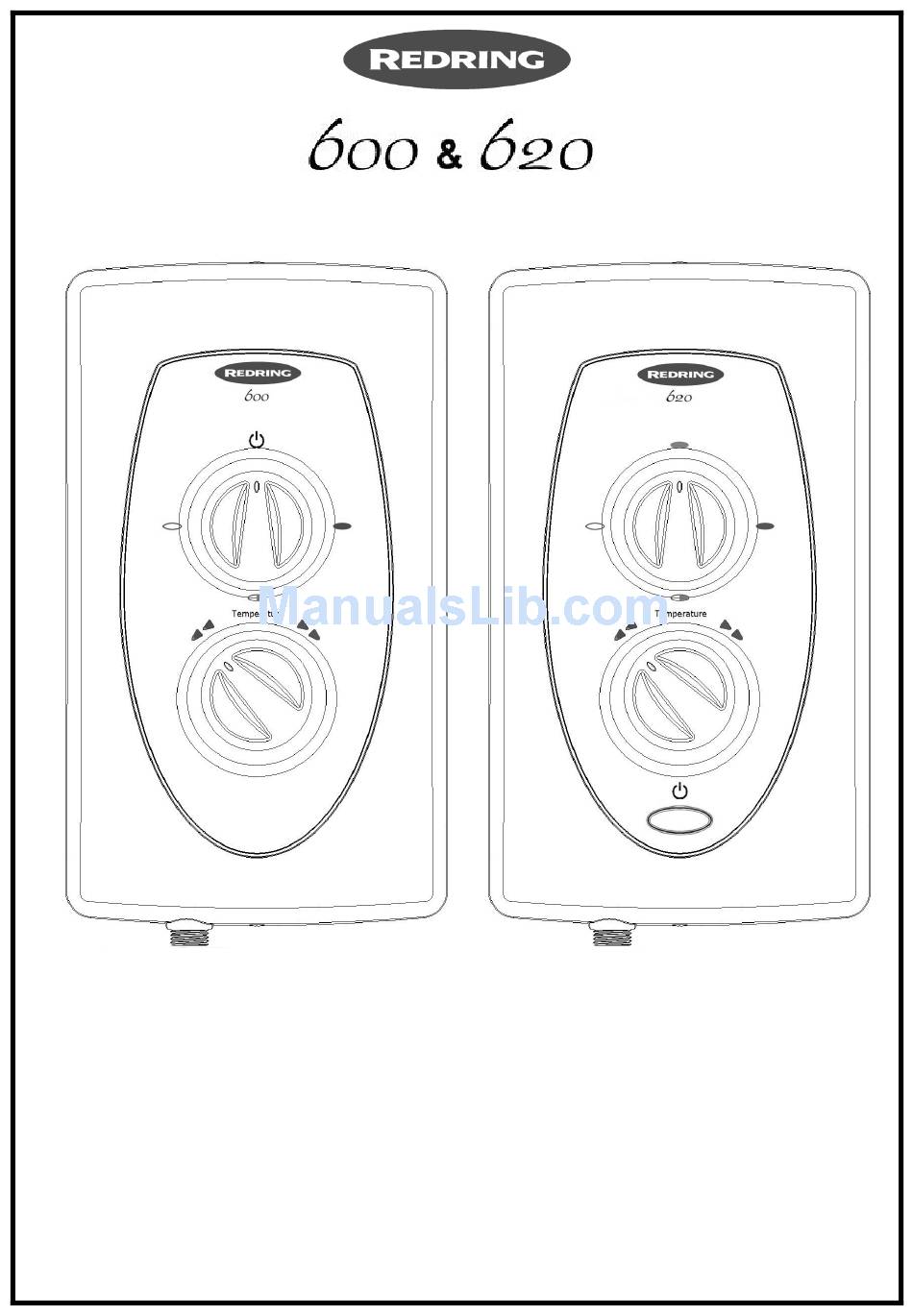

- Page 1 SHOWER HANDBOOK IMPORTANT: Please retain this booklet for future reference...
-
Page 2: Table Of Contents
Turning the unit on Model 600 – Rotate knob “A” clockwise a ¼ turn (one click) this will select full power, the normal setting, further turns change the power setting (see above). Model 620 – Press button “C”. (Rotating knob “A” selects the power level, full power being the normal setting - see above). -
Page 3: Wait Until You Are Sure It Has Thawed Out
WARNING! DO NOT SWITCH THE SHOWER ON IF YOU SUSPECT IT OF BEING FROZEN. WAIT UNTIL YOU ARE SURE IT HAS THAWED OUT. Redring After Sales Service We offer a technical advisory service on the telephone to contractors and other customers with problems in the field. - Page 4 8. There are 3 defined spray plate settings adjustable by rotating the spray plate, (see diagram 4). If desired many combinations between the 3 can be achieved. (Model 600 has a different shape handset but the modes are the same). The modes have a positive to identify them.
-
Page 5: What To Do If Things Go Wrong
Broken parts PROFESSIONAL SERVICE If the previous checks fail to restore the performance, you should either contact the Redring Technical Advisory Service or seek the assistance of a qualified plumber and / or electrician. The person who installed the shower is probably the best one to repair it and is certainly the person to contact if you have a problem in the guarantee period. -
Page 6: Installation Instructions
a) Water too HOT b) Water too COLD c) Water leaks from burst pressure relief valve d) Water does not flow when Knob “A” is rotated (when button “C” is pressed - 620 only) Installation instructions Check that the electrical rating shown on the shower matches the mains supply. A competent installer must undertake all installations. - Page 7 c) The handset must not be able to come into contact with any used water in the bath or basin. If it can, even after the hose has been retained by the hose retainer (see diagram 13), then a vacuum breaker must be fitted.
- Page 8 (particularly the handset and solenoid valve) will prevent the heater working properly. 7. The shower is designed to have an open outlet and should only be used with ‘Redring’ recommended fittings. Do not connect the handset until after the shower removable side section and front cover are fitted.
-
Page 9: Warning! This Appliance Must Be Earthed
Cable Sizes 7.5 / 6.9kW 240/230V 8.5 / 7.8 kW 240/230 V 6mm² 9.5 / 8.7kW 240/230V 10mm² You may be able to use 6mm² cable if Method 1 (clipped direct) is used. Remember to up-rate the cable if it runs in thermal insulation in a loft, or for a longer distance. -
Page 10: How To Maintain Your Shower
Miniature microswitch (600 only) Relay (620 only) Timer pcb (620 only) On/off switch (620 only) Spares / accessories can be supplied against any Visa or Access cards from Redring Sales Hotline 0870 0102 829 Diagram 12 Catalogue Number 83-593529 93-792452... - Page 11 Diagram 13...
-
Page 12: Guarantee
Full details of terms and conditions are available on request from: - APPLIED ENERGY PRODUCTS LTD. MORLEY WAY, PETERBOROUGH. PE2 9JJ. Tel +44 (0)1733 456789 Fax: +44 (0)1733 310606 Website: www.redring.co.uk 555.2067.01A...
