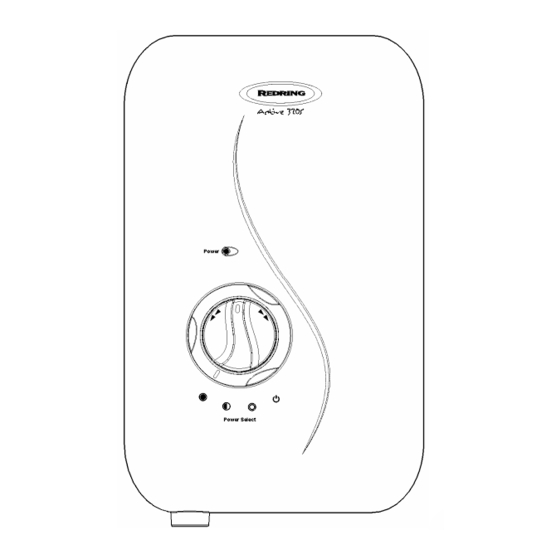

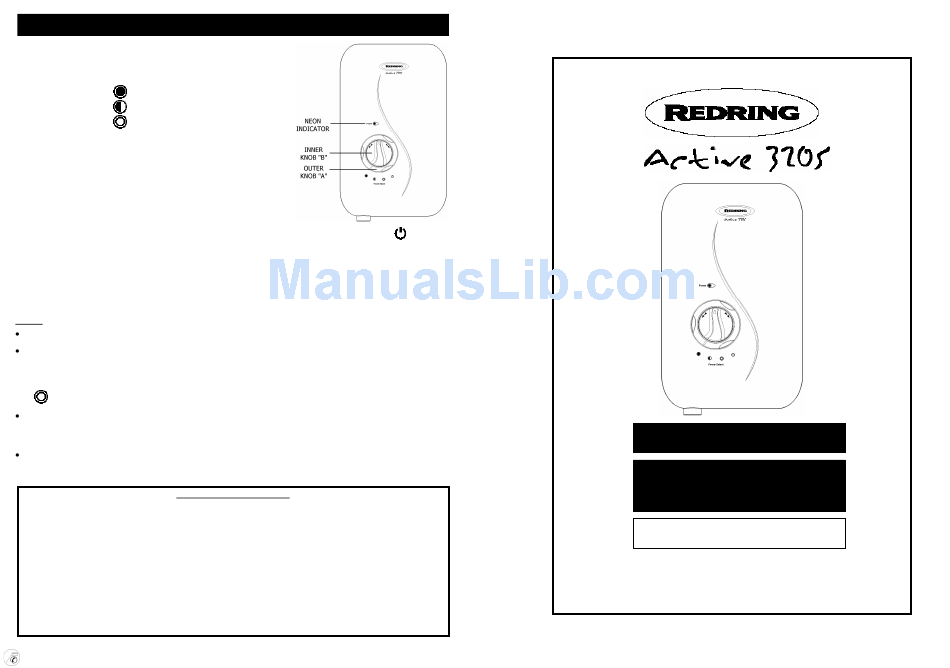

HOW TO USE YOUR ACTIVE 320S SHOWER (SUMMARY)

1. Ensure the electricity and water are turned on to the unit.
2. Turn outer knob "A" clockwise to the "Power Select"
position of your choice.
= High Power
= Medium Power
= Cold Shower
The water will flow, and the neon indicator light will glow.
It is recommended that you do not enter the spray during
this period, especially if the shower has just been used.
3. Turn inner knob "B" a small amount until you reach
the desired showering temperature.
Turn anti-clockwise (follow blue arrows) for cooler.
Turn clockwise (follow red arrows) for warmer.
4. When you have finished showering, turn outer knob "A" anti-clockwise to the "
(You have no need to adjust inner knob "B").
5. Water will continue to flow for up to 3 seconds before switching off.
This reduces the temperature of the water in the tank for the next user.
The neon indicator light will go out.
6. Switch off the electricity supply at the ceiling switch or local isolator.
Notes
Wait 20 seconds for the temperature to stabilise after each adjustment.
The neon indicates when the heaters are on and, if the shower has been recently used,
it may take up to 20 seconds to come on.
During this time the water may go from very hot to cold before stabilising.
Also, please note that the neon indicator does not light when the shower is set to the
"
" cold power setting.
The position of inner knob "B" will be approximately the same each time the shower is
used, varying only with incoming water temperature or pressure changes
(e.g. you will only need to change from summer to winter).
During normal operation, if an overheated water temperature is sensed then the heater
will switch off and the neon indicator will go out.
Water will continue to flow and cool down before the heater switches back on again.

IMPORTANT WARNINGS!

DO NOT SWITCH THE APPLIANCE ON IF YOU SUSPECT IT OF BEING FROZEN.
WAIT UNTIL YOU ARE SURE IT HAS THAWED OUT.
DO NOT OPERATE THE APPLIANCE IF WATER DISCHARGES FROM THE PRESSURE RELIEF
VALVE. MAINTENANCE IS REQUIRED BEFORE THE APPLIANCE CAN BE SAFELY USED.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN
AND THE INFIRM) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES,
OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION
OR INSTRUCTION CONCERNING USE OF THE APPLIANCE
BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY
DO NOT PLAY WITH THE APPLIANCE.
We offer a technical advisory service on the telephone: RING 0844 372 7766 (UK ONLY)
" position.
(A4) Leaflet No. 555-2136-01e
12
REDRING ACTIVE 320S
SMART TECHNOLOGY
ELECTRIC SHOWER
Installation and User Guide
IMPORTANT:
This booklet should be left with the user after
installation and demonstration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Active 3205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Redring Active 3205

  • Page 1 The position of inner knob “B” will be approximately the same each time the shower is used, varying only with incoming water temperature or pressure changes REDRING ACTIVE 320S (e.g. you will only need to change from summer to winter).
  • Page 2 Redring After Sales Service ........
  • Page 3 HOW YOUR ACTIVE 320S SHOWER WORKS HOW TO INSTALL YOUR ACTIVE 320S SHOWER 1. Water is heated instantaneously as it flows over the WARNING: ALL WIRING AND INSTALLATION MUST BE SUPERVISED BY A SUITABLY QUALIFIED PERSON. heating elements in the copper cylinder (Diagram 8). WARNING: DO NOT INSTALL THIS SHOWER WHERE IT MAY BE 2.
  • Page 4 Make a note of those numbers here, and be sure to quote 7. The shower is designed to have an open outlet and should only be used with “Redring” them if you call for advice. recommended fittings.
  • Page 5 WRAS Water Isolating Valve Cat No. 93792452 Thermal Cut-Out 50/88°C Cat No. 93597871 Handset Cat No. 93597860 Additional accessories and spare parts can be Height Adjuster Cat No. 93597861 supplied against any Credit or Debit cards from Redring Sales Hotline 0844 372 7750...
  • Page 6 (see “Effect of Other Water Devices on Incoming Water Supply” page 10). REPLACE IF NECESSARY, OR EVERY TWO YEARS, WITH A REDRING APPROVED PART. 10. Note that inner knob “B” IS NOT A TAP and does not turn the water off.
