6. Nel caso che dalla base microfonica microfono provengano stranamente odori anomali od addirittura fumo, spegnere immediatamente il sistema audio. 7. RCF S.p.A. raccomanda vivamente che l’installazione del sistema audio sia eseguita solamente da installatori professionali qualificati (oppure da ditte specializzate) in grado di farla correttamente e certificarla in accordo con le normative vigenti.

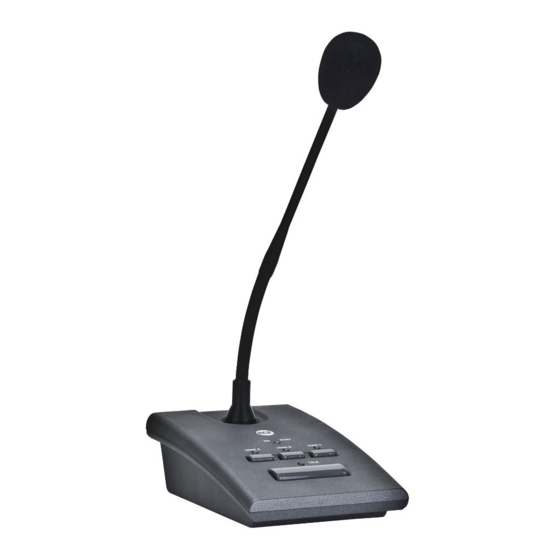

DESCRIZIONE La base microfonica da tavolo BM 3003 permette di effettuare annunci selettivi verso 3 zone ed è il complemento ideale del mixer-amplificatore RCF ES 3323 (con sintonizzatore radio e lettore CD/USB-MP3 incorporato). Gli ingressi 2 e 3 dell’amplificatore RCF ES 3323 hanno (ciascuno) un connettore RJ 45 per la rapida connessione diretta di una base microfonica BM 3003 (tramite cavo CAT5) oppure una linea composta da max.
PANNELLO POSTERIORE Ingresso per alimentatore esterno (diametro pin ø: 2,0 mm) da utilizzarsi dalla seconda base microfonica BM 3003 in poi (in quanto la prima è già alimentata dall’amplificatore ES 3323). Tensione: 24 V c.c. (corrente assorbita: 150 mA per ogni BM 3003) oppure 18 V c.a.
Page 6
è alimentata direttamente dall’amplificatore ES 3323. In presenza di forti campi interferenti e con linee molto lunghe, può risultare necessario applicare una “terminazione” (fornibile da RCF) all’ultima base microfonica della linea. IMPORTANTE: Non è ammesso collegare allo stesso ingresso dell’amplificatore ES 3323 (quindi nella stessa linea) modelli diversi...
IMPOSTAZIONI E FUNZIONAMENTO ACCENSIONE DEL SISTEMA Prima di accendere il sistema, nell’amplificatore ES 3323 (leggere il rispettivo manuale d’uso): • impostare i “dip-switch” 3 e 4 degli ingressi (2 e/o 3) dedicati per le basi BM 3003 entrambi su OFF (modalità LINE); •...
Page 8
FUNZIONAMENTO TASTO TALK Il tasto TALK attiva il microfono (permettendo la diffusione dell’annuncio). Le basi microfoniche BM 3003 funzionano in “modalità intelligente” (SMART): • se il tasto TALK è premuto e rilasciato velocemente, si attiva o disattiva il microfono in modo stabile; •...
Page 9
(dopo la pressione del tasto TALK ) grazie alla priorità superiore della base microfonica BM3003 rispetto ad un dispositivo attivato in precedenza, per poi spegnersi in seguito per via di un evento avente priorità ancora più elevata.
L’annuncio può avvenire solo se la base microfonica BM 3003 ha una priorità superiore del dispositivo che sta occupando il sistema. L’abilitazione può quindi essere: • immediata * ; • oppure ritardata dalla diffusione della melodia di preavviso “chime” (il LED TALK lampeggia) * ;...
RCF ES 3323 mixer amplifier (with tuner and CD/USB-MP3 player inside). The inputs 2 and 3 of the RCF ES 3323 amplifier have a RJ 45 port (each) to connect a BM 3003 paging microphone quickly and directly (through CAT 5 cable) or a line made of max.12 BM 3003 paging microphones by using 1 or...
REAR PANEL Power supply input (pin diameter ø: 2.0 mm) to be used on all BM 3003 paging microphones of the line, but the first one (that is already directly supplied by the ES 3323 amplifier). VOLTAGE: either 24 V dc (max. current per each BM 3003: 150 mA) or 18 V ac (max.
Page 14
In case of long lines and / or presence of significant electromagnetic fields, it may be necessary to add a line termination unit (that can be supplied by RCF) to the last paging microphone. IMPORTANT: it is NOT possible to use different models of paging microphones (i.e.
SETTINGS AND OPERATION TURNING THE SYSTEM ON ES 3323 settings before turning the system on (read the respective user manual): • Set both the dip-switches 3 and 4 of the inputs (2 and/or 3) for BM 3003 paging to OFF (LINE mode). •...
TALK BUTTON The TALK button turns the microphone on (allowing to page). BM 3003 paging microphones operate in the SMART mode: • If the TALK button is pressed and quickly released, the microphone will be turned on / off (‘toggle’). •...
Page 17
PAGING INTERRUPTED BY OTHER DEVICES (IN OTHER LINES) HAVING HIGHER PRIORITY When the ES 3323 amplifier operates in the graduated priority mode (read how to set the dip-switch 3 of the PRESET group on the respective user manual), devices having higher priority can interrupt an announcement in progress (or prevent it) from a BM 3003 paging microphone.
It is possible to page only if the BM 3003 has a higher priority level then the other device that is engaging the system. Therefore, paging can be either: • immediate * ; • or delayed by the chime (the TALK LED flashes) * ;...
Page 20
Except possible errors and omissions. RCF S.p.A. reserves the right to make modifications without prior notice. the rules of sound RCF SpA: Via Raffaello, 13 - 42124 Reggio Emilia > Italy tel. +39 0522 274411 - fax +39 0522 274484 - e-mail: rcfservice@rcf.it...
