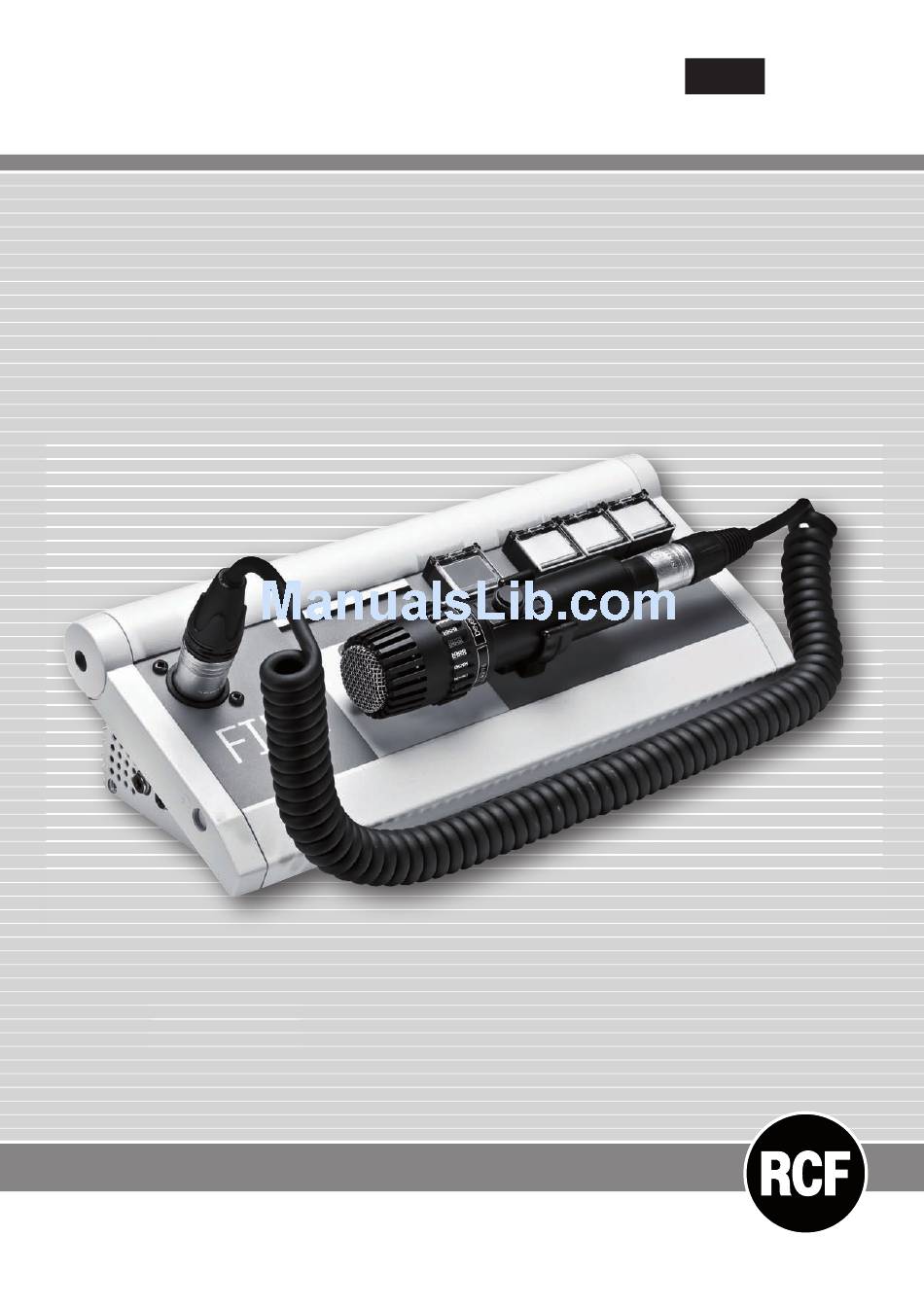

DXT7000 BM7801FM FIREMAN’S PAGING MICROPHONE FIREMAN’S PAGING MICROPHONE BASE MICROFONICA D’EMERGENZA PER VIGILI DEL FUOCO BASE MICROFONICA D’EMERGENZA PER VIGILI DEL FUOCO User manual User manual User manual Manuale d’uso Manuale d’uso Manuale d’uso the rules of sound...
INDICE - ITALIANO AVVERTENZE PER LA SICUREZZA pag. 04 1. DESCRIZIONE E PANNELLO FRONTALE pag. 05 2. FUNZIONI pag. 05 2.1. STATO D’ATTESA pag. 05 2.2. ANNUNCI DA ALTRE UNITÀ pag. 06 2.3. ANNUNCI pag. 06 3. TASTI ALLARME / FUNZIONE pag.
Page 4
6. Nel caso che dalla base microfonica microfono provengano stranamente odori anomali od addirittura fumo, spegnere immediatamente il sistema audio. 7. RCF S.p.A. raccomanda vivamente che l’installazione del sistema audio sia eseguita solamente da installatori professionali qualificati (oppure da ditte specializzate) in grado di farla correttamente e certificarla in accordo con le normative vigenti.
Page 5
1. DESCRIZIONE E PANNELLO FRONTALE BM 7001FM è una base microfonica per vigili del fuoco, appartenente al sistema RCF DXT 7000, da utilizzarsi soprattutto (ma non solo) per annunci d’emergenza prioritari. Include un microfono ad impugnatura di alta qualità con pulsante di attivazione, un tasto (rosso) per annunci e 3 di allarme / funzione protetti da coperchi di sicurezza.
Page 6
2.3. ANNUNCI Premere il tasto per annunci (3) dopo aver sollevato il suo coperchio di sicurezza: ZONE PREFIX, ALARM PAGING PLEASE WAIT ! PLEASE WAIT … : annuncio con il tono di preavviso : annuncio senza il tono di preavviso L’abilitazione per l’annuncio è...
Page 7
3.3. ANNUNCI TRAMITE UN LETTORE AUDIO ESTERNO COLLEGATO ALL’INGRESSO AUX IN Dopo aver premuto il tasto allarme/ funzione (4a, 4b, 4c) dedicato, l’ingresso AUX IN è aperto. Successivamente premere il tasto PLAY del lettore esterno; al termine dell’annuncio registrato, premere il tasto STOP del lettore e rilasciare il tasto funzione / allarme. 3.4.
Page 8
4. COLLEGAMENTI ED IMPOSTAZIONI 4.1. MICROINTERRUTTORI (“dip-switches”) DEL PANNELLO POSTERIORE Sul pannello posteriore sono presenti 8 microinterruttori per l’impostazione della base microfonica. DIP 1 ÷ 5 : indirizzo digitale dell’unità (vedere “4.2. Tabella degli indirizzi”) DIP 6 : mantenere su 0 (OFF) DIP 7 : mantenere su 0 (OFF) DIP 8 : terminazione linea RS 485 (0 = OFF ;...
4.3. PRESE RJ PER IL COLLEGAMENTO 1 2 3 4 X1 (8 poli): collegamento al SYSTEM BUS / LOCAL BUS 1 : audio +; 2 : audio –; 3 : massa audio; 4 : massa digitale 5 : +12 V; 6 : + 24 V;...
1. DESCRIPTION AND FRONT PANEL BM 7001FM is a fireman’s paging microphone for the RCF DXT 7000 system, to be used mainly (but not only) for emergency calls with high priority. It has a high quality hand-held microphone with a ‘Push To Talk’ button, a paging and 3 alarm / function buttons protected by safety covers.
2.3. PAGING Lift the paging button safety cover (3) up and push the button (3): ZONE PREFIX, ALARM PAGING PLEASE WAIT ! PLEASE WAIT … : announcement with chime : announcement without chime As soon as the system is ready for paging, the red light of the paging button (3) will turn on and the display will show: ALARM PAGING PAGE !
3.3. ANNOUNCEMENTS FROM AN AUXILIARY EXTERNAL PLAYER CONNECTED TO AUX IN After pushing the assigned alarm / function button (4a, 4b, 4c), the AUX IN input gets open. Then push the PLAY key of the connected external player; when the recorded announcement ends, push the player STOP key and release the alarm / function button.
4.3. RJ SOCKETS 1 2 3 4 X1 (8 pins): SYSTEM BUS / LOCAL BUS connection 1 : audio +; 2 : audio –; 3 : audio ground; 4 : digital ground 5 : +12 V; 6 : + 24 V; 7, 8 : data X2 (6 pins): RS232 serial port for PC 1, 6 : ground;...
Page 16
Except possible errors and omissions. RCF S.p.A. reserves the right to make modifications without prior notice. the rules of sound RCF SpA: Via Raffaello, 13 - 42010 Reggio Emilia Italy > tel. +39 0522 274411 - fax +39 0522 274484 - e-mail: rcfservice@rcf.it...
