MSB Technology Universal Media Transport plus User Manual page 9

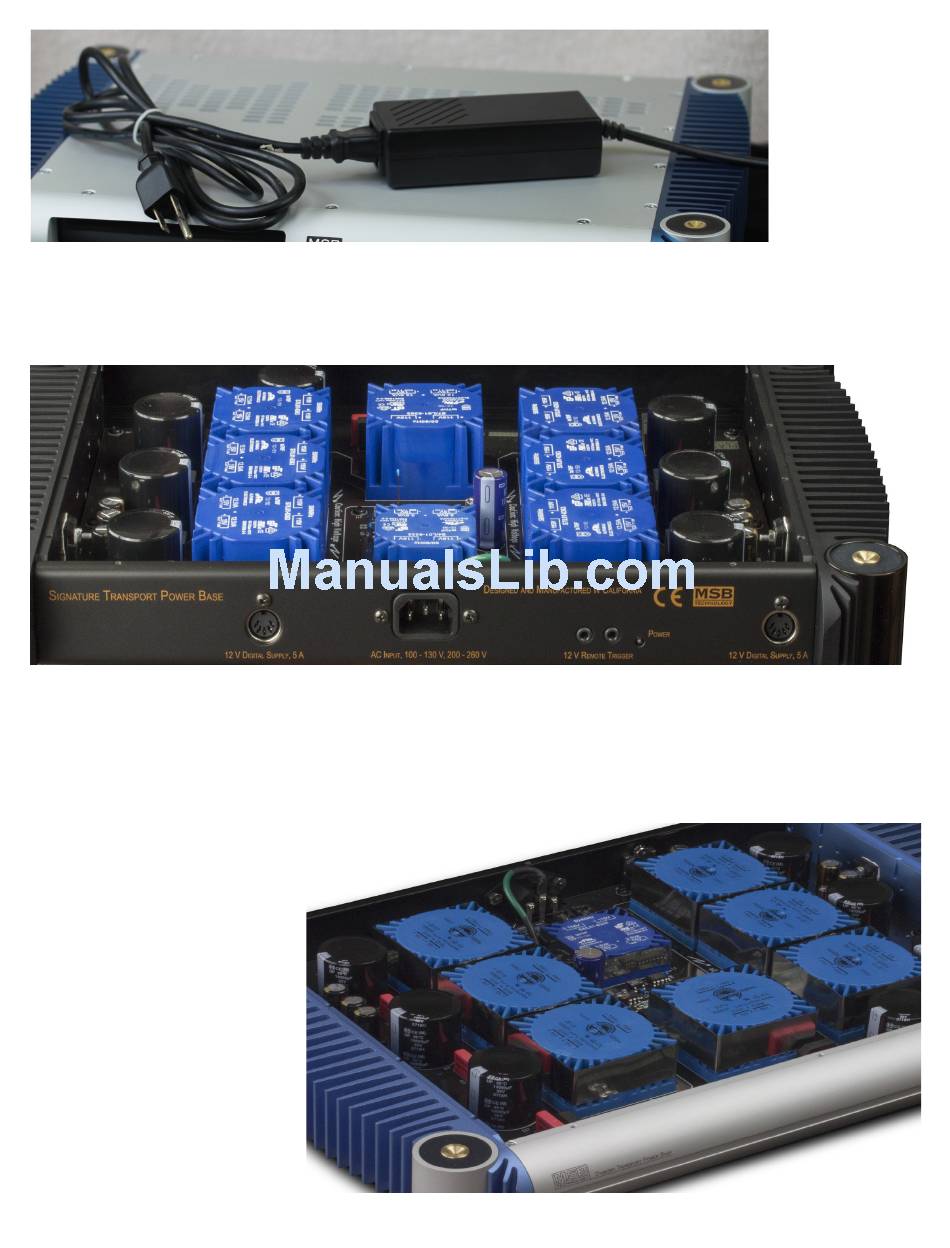

The Signature Transport Power Base is a dedicated high quality power supply for the UMT. It is a linear power supply with ultra low
noise. It can be used alone or in conjunction with any other power supply for better isolation. It should be hooked up to the audio
supply when used with a desktop supply.
The Dual Signature Transport Power Base is equivalent to two Signature Power bases combined. It has two independent linear power
The Dual Signature Transport Power Base is the perfect companion to the UMT. It has two linear power supplies, one for audio and
one for video.
supplies including separate transformers. It was designed specifically for the UMT. It is a recommended option.
The Diamond Transport Power Base has twice the power of the Signature is as the ultimate option for both the audio and video requirements
of the UMT. Again, it can be mixed with other supplies. All supplies MUST be exactly 12 V.
The second power connection can
be used. When power is detected on
this second input, the audio circuits
are disconnected from the first power
connector and operated off this second
supply. This is an automatic function.
The second supply becomes the
AUDIO supply and should be of the
highest quality.
Power consumption varies depending
on what drives or devices might be
plugged in the USB connections.
Normally the UMT draws up to about
5A on the first supply and about 0.5 A
on the secondary audio supply unless
a clock is installed and then a 1.5A
supply is needed.
The Diamond Transport Power base has twice the power of the Signature.
9
One or two
medical grade
desktop supplies
can be used with
the UMT.
