There are several special setup modes possible relating to the MSB audio processing. These modes are enabled with a special series of
remote keystrokes. When pressed correctly the UMT will acknowledge by blinking the red LED on the front panel for 5 seconds. Here
are the commands.
1.
DSD Mode: The UMT defaults with DSD output on the digital outputs. This is perfect for use with an MSB DAC. For use with a
non- DSD DAC, the DSD mode may be turned off.
•
TO SET DSD TO PCM OUTPUT: On the remote press: <DIMMER> <DIMMER> <DIMMER> <5>
The LED to the left of the display will flash ORANGE twice.
•
TO SET DSD BACK TO DoP OUPUT: On the remote press: <DIMMER> <DIMMER> <DIMMER> <4>
The LED to the left of the display will flash ORANGE once.
2.
Clock Mode: The 512x Clock jack defaults as an input clock. It can be switched to an output clock.
•
TO SET CLOCK PORT TO OUTPUT: On the remote press: <DIMMER> <DIMMER> <DIMMER> <0>
The LED to the left of the display will flash GREEN twice.
•
TO SET CLOCK PORT BACK TO INPUT: On the remote press: <DIMMER> <DIMMER> <DIMMER> <9>
The LED to the left of the display will flash GREEN once.
3.
MultiChannel: By default, the three RCA connectors on the back of the UMT output identical front channel information.
•
TO SET UMT FOR MULTICHANNEL OUTPUT: On the remote press: <DIMMER> <DIMMER> <DIMMER> <6>
The LED to the left of the display will flash ORANGE three times.
•
TO SET BACK TO 2 CHANNEL OUTPUT: On the remote press: <DIMMER> <DIMMER> <DIMMER> <4>
The Setup Menu of the UMT presents many setup and configuration options. For most users, the default configuration will be sufficient
and will not require any changes to the settings. However if you need to configure the player to perfectly match your home theater setup
and viewing preferences, please refer to the following sections for details about each configuration option.
Using the Setup Menu System
In many places of this guide, the player's Setup Menu needs to
be adjusted to match your specific audio/video configuration.
When performing menu adjustments, we will use the following
terminology to indicate the location of the desired function:
Setup Menu Section > Menu Item > Selection
Setup Menu Section is the uppermost Setup Menu level. With
the UMT there are six (6) Setup Menu sections listed in the left
column of the Setup Menu screen. They are: Playback Setup,
Video Setup, Audio Format Setup, Audio Processing, Device
Setup, and Network Setup.
Menu Item is the parameter to be adjusted which appears in
the center column of the Setup Menu. Once you enter a Setup
Menu Section, the list of Menu Items and their current value
are displayed in a box.
Selection is the actual numeric or descriptive element that
represents the change being made to the selected parameter. It
is the item located to the right of its corresponding Menu Item.
A Scroll Mark appears at the top or bottom of the menu when there are more Menu Items or Selections than what can fit in a screen. You
may use the UP and DOWN ARROW buttons to scroll the display in order to access additional items.

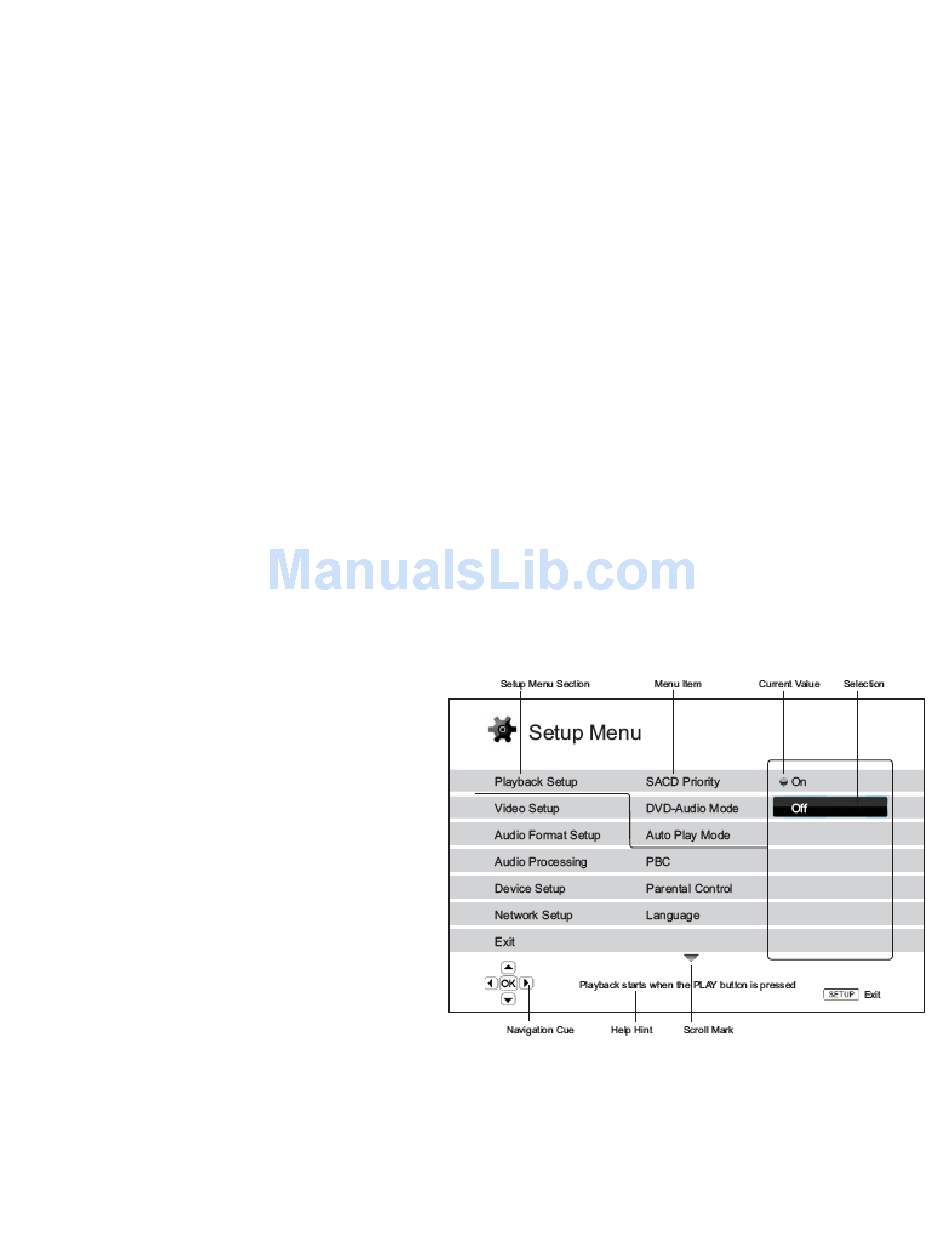

The preceding diagram should give a good description of the various elements and their context. In this screen we could, for example,
instruct you to set the Auto Play Mode parameter to Off in the Playback Setup section. To indicate where we were, you would see the
following: Playback Setup > Auto Play Mode > Off.
NOTE: It is possible that some setup items may be grayed-out and inaccessible. This can be caused by a disc being played back or having
changed a prerequisite setup item. Please stop playback or eject the disc before trying to change these setup items. If you still cannot
