• Area Code – Some Blu-ray Discs may have different parental control ratings for different geographical areas. At this time the
player only supports the parental control ratings used in the United States.
• Change Password – To change the parental control password, enter a 4-digit number as the new password. Enter the new password
again to confirm. If the two entries are matching, the new password replaces the old parental control password.
6. Language: To configure language preferences. The menu contains the following sub-items:
• Player Language – To choose the display language for the player's Setup Menu and the on-screen display. At this time only
English is available.
• Disc Menu Language – To choose the preferred language for displaying DVD and Blu-ray Disc menus. If a disc menu of the
selected language is available, that menu will be shown instead of the default disc menu.
• Audio Language – To choose the preferred audio language for DVD and Blu-ray Discs. If an audio track of the selected language
is available on the disc, the audio track will be played back.
• Subtitle Language – To choose the preferred subtitle language for DVD. If a subtitle of the selected language is available, it will
be displayed. When "Auto" is selected, the subtitle display is decided by the disc.
NOTE: If your preferred language is not listed in the Audio, Subtitle or Disc Menu options, select "Other" and enter the Language Code
found in this manual.

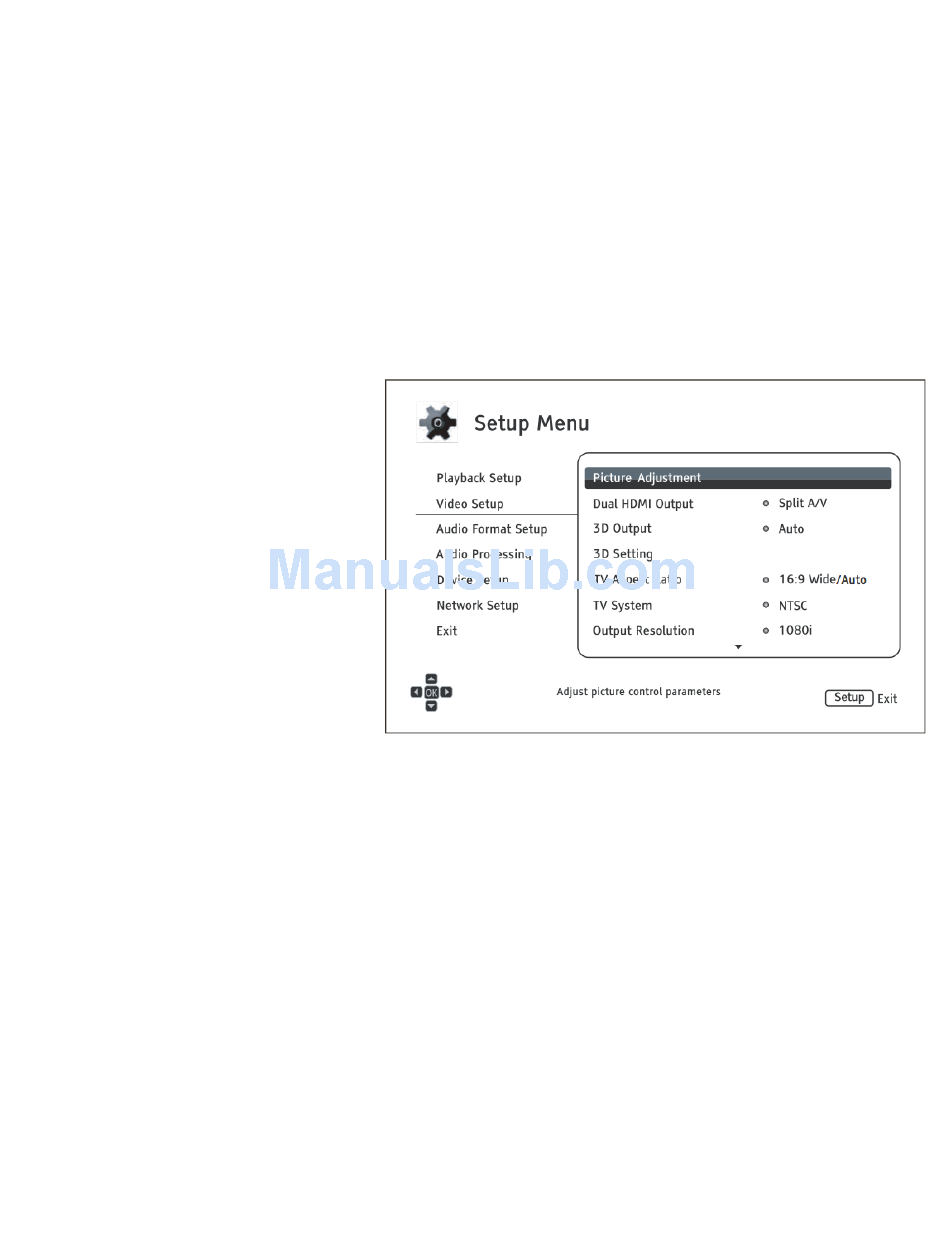

Video Setup

The "Video Setup" section of the Setup Menu system
allows you to configure video output options. MSB
has set the video setup to what we think are the best
settings, assuming you have a wide-screen display
with HDMI inputs. With any other display options
you will need to make the adjustments below. The
menu items in this section are:
1. Picture Adjustment: To adjust picture control
parameters. The UMT provides a wide array
of picture controls. Please refer to the Picture
Adjustment section of this manual for details of
each control.
2. Dual HDMI Output: Allows you to select the
output mode when both HDMI Output ports are
in use. If only one HDMI Output is active, this
selection will not apply.
• Split A/V (recommended) – Use HDMI 1 OUT as the dedicated video output port and HDMI 2 OUT as the dedicated audio
output port. This setting will ensure the best possible picture quality and the highest possible audio resolution.
• Dual Display – Send digital audio and video signals to both HDMI Outputs simultaneously. This setting is only recommended
when two HDMI displays are required, since the surround sound audio signal may be down-mixed to stereo and the original
audio quality may be lost.
NOTE: The player can automatically adjust the resolution of digital audio and video signals depending on the capabilities of the connected
television and receivers. For HDMI 1 OUT, the dedicated QDEO video processor will be used unless Source Direct is selected, in which
case QDEO is bypassed. In Split A/V mode, HDMI 1 OUT has video only with no audio, but HDMI 2 OUT will have audio and possibly
video. This is because HDMI embeds audio into video data so there must always be a video signal, even if it's only a blank screen, to
carry audio through.
3. 3D Mode: To choose the video output mode for available 3D contents at the HDMI output ports.
The options are:
• Auto – Output 3D if supported both by the disc content and the display. The player automatically checks for the existence of
3D content on the disc and the 3D compatibility of the TV or projector. If both are qualified, the player sends 3D video from
its HDMI output terminals, otherwise only 2D video is sent out. Active shutter 3D-compatible glasses (which are not sold by
MSB) are required to enjoy the 3D movie on your TV.
• Off – Always output 2D video format, even when 3D video exists on the disc. This guarantees the video quality if your TV is
not 3D compatible, or some necessary part (such as the 3D glasses) is missing.
• Forced – Always output 3D video format for 3D Blu-ray Discs. You may experience a black screen (no video output) if your
TV is not 3D compatible.
4. 3D Setting: Adjusts the playback settings for better 3D visual quality.
16
