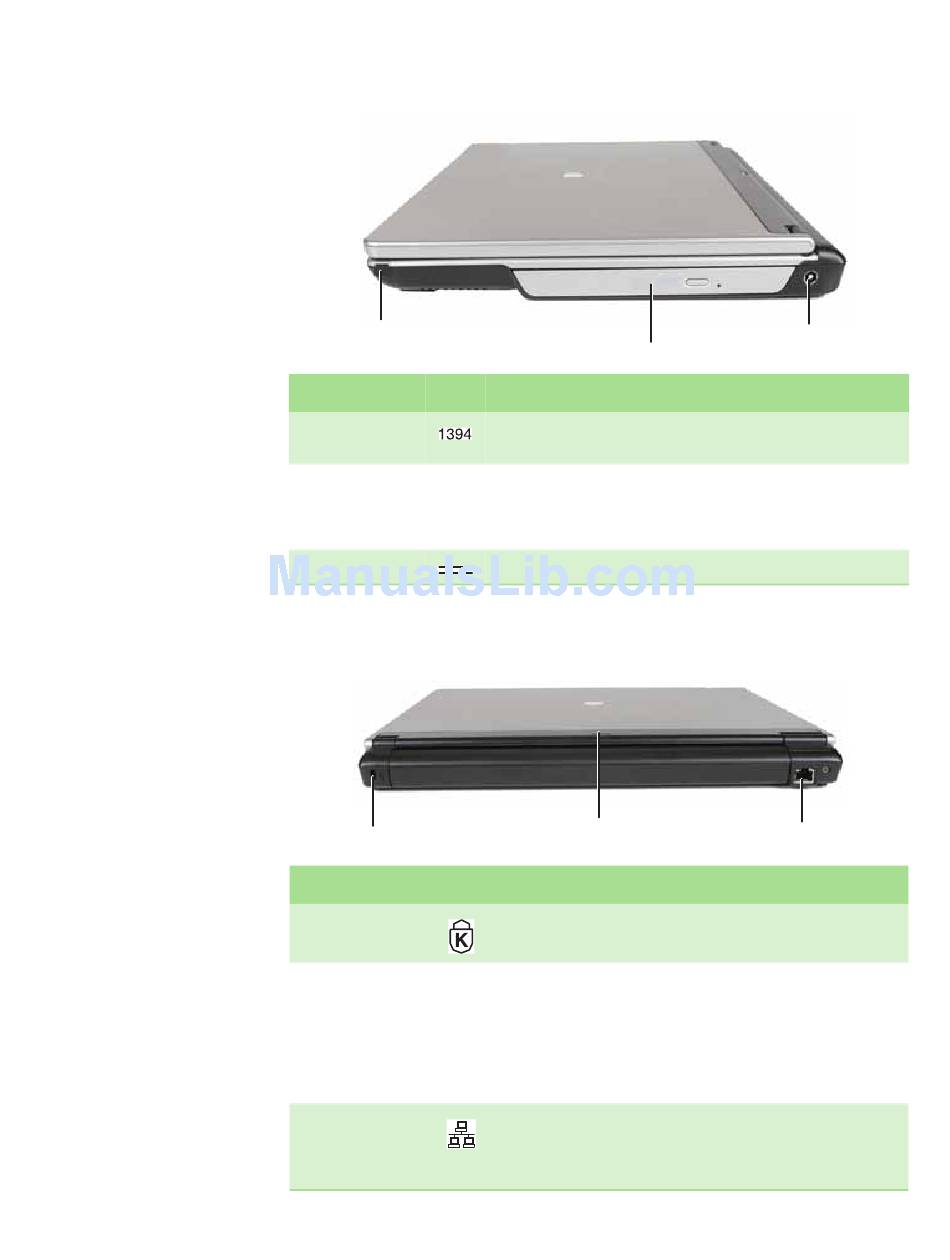

CHAPTER 2: Checking Out Your Gateway Notebook

Right

Back

8
IEEE 1394 port
Component Icon
IEEE 1394 port
DVD drive
Power connector
Kensington lock slot
Component Icon
Kensington™ lock slot
Power/ battery charge
indicator
Ethernet jack
DVD drive
Description
Plug an IEEE 1394 (also known as Firewire® or i.Link®) device (such as a digital
camcorder) into this 4-pin IEEE 1394 port.
Insert CDs or DVDs into this drive. For more information, see
drive" on page 23. To determine the type of drive in the notebook, examine
the drive tray's plastic cover and compare the logo to those listed in
"Identifying drive types" on page
Plug the AC adapter cable into this connector.
Power/battery charge indicator
Description
Secure your notebook to an object by connecting a Kensington cable lock
to this slot.
LED solid blue - notebook is on, and if the notebook is connected to AC power,
■
the battery is fully charged.
LED blinking blue - notebook is in Standby mode.
■
LED solid purple - battery is charging.
■
LED blinking purple - battery is charging and notebook is in Standby mode.
■
LED blinking red - battery charge is very low and has insufficient power to turn
■
on the notebook.
LED off - notebook is off.
■
Plug an Ethernet network cable into this jack. Plug the other end of the cable
into a cable modem, DSL modem, or an Ethernet network jack. For more
information, see "Connecting to a cable or DSL modem or to an Ethernet
network" on page 13.
www.gateway.com
Power connector
"Using the DVD
23.
Ethernet jack
