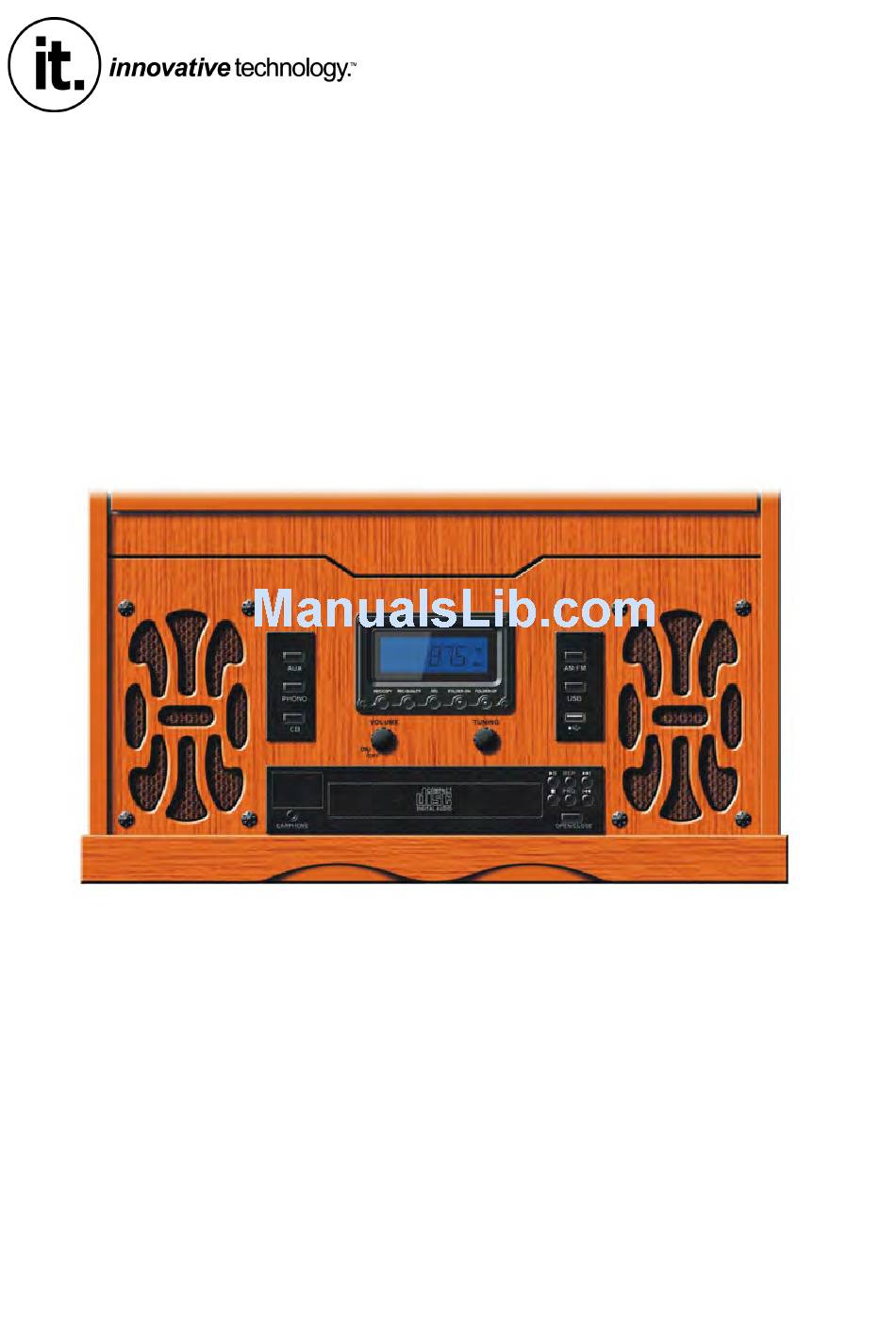

OPERATING MANUAL
MODEL: ITRR-700
RETRO USB TURNTABLE
1

Advertisement

Table of Contents
loading

Related Manuals for Innovative Technology ITRR-700

Summary of Contents for Innovative Technology ITRR-700

  • Page 1 OPERATING MANUAL MODEL: ITRR-700 RETRO USB TURNTABLE...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS FOR AUDIO PRODUCTS-READ ALL OF THE FOLLOWING IMPORTANT SAFEGUARDS CAREFULLY When using electrical products, basic precautions should always be followed including: Read Instructions-All the safety and operating instructions should be read before the product is operated. Retain Instructions-The safety and operating instructions should be retained for future reference.
  • Page 3 13. Lightning-For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

  • Page 4: Safety Information

    Precautions Safety Information CAUTION: 1. In order to shut off the power to this product completely, unplug the power cord from the wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period of time such as a vacation.
  • Page 5 WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 6: Before Use

    Before Use 1. Choose the location of the unit’s installation carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors. 2.
  • Page 7 Handing Compact Disc or Tape Compact Disc Handing the Discs: This unit has been designed specifically for sound reproduction from compact discs bearing the mark. No other discs can be used. 1. Always place the compact disc in the disc tray with the label facing upward.

  • Page 8: Preparation For Use

    Cassette Tape Tape Handling: Do not store tapes in the following places: 1. On top of heaters, exposed to direct sunlight or in any other places with high temperatures. 2. Near speakers, on TV sets or amplifiers or where they would be exposed to strong magnetic fields. 3.

  • Page 9: How To Replace The Turntable Stylus

    How To Replace The Turntable Stylus Removing old stylus 1. Set a screwdriver at the tip of the stylus and push down to the direction shown in "A". 2. Remove the stylus by pulling it down and forward. Installing a new stylus 1.

  • Page 10: Listening To A Record

    Listening to a Record 1. Press the PHONO button. 2 Select player speed. 3. Put a record onto the turntable (use the 45 rpm adaptor provided when playing a single record). 4. Remove the tone arm-rest holder. 5. Lift the Que-lever and move the tone arm gently to the desired position over the record.
  • Page 11 Listening to a CD/MP3 1. Press the CD button. 2. Press the OPEN/CLOSE button to open the tray, and place the CD/MP3 disc on the tray. Press the OPEN/CLOSE button again to close the tray. 3. Press the button to start playing the CD/MP3 disc.
  • Page 12 Fast Reverse ( ) and Fast Forward ( You can reverse or forward to any point in a selected track by pushing and holding the button. NOTE: Do not push both buttons together as this may damage the unit. As the unit is tracking quickly, forward or backward you will hear your selection playing at a distorted speed.

  • Page 13: Listening To The Radio

    Listening to the Radio 1. Press the AM/FM button to listen the radio. 2 . Tune to the desired frequency. 3. Antenna For optimal FM reception be sure to stretch the built-in FM antenna wire located at the lower back of the unit and move it around until the station you have tuned in is being received clearly.

  • Page 14: Listening To Tape

    Listening to TAPE (1) Load Cassette Tape into the unit (located on side of the unit) Playback will automatically begin. (2) Press the button halfway to Fast Forward the Tape. Press the button lightly and playback will resume. (3) Press button all the way to end playback and eject Tape. NOTE: When a cassette tape is inserted, the CD/radio/phono will automatically shuts off.
  • Page 15 USB Host-Playback of MP3 song via USB storage media The system is able to decode and playback MP3 files stored on various memory media by using the USB connection port. 1. Press the USB button. “USB” will flash on the display. 2.
  • Page 16 7. Press the PROG button, the unit will begin the program function. In stop state, press the PROG button, the LCD display will show 01, and “MEMORY” will flash on the left corner. Then press the F.F or F.R button to select the desired tracks. Press the PROG. button to repeat the step.
  • Page 17 NOTE : REMOVING OF USB Before removing USB memory devices, turn off the power to the unit, or switch the function mode to either CD, Radio or Aux first. NOTE : If the system is connected to an MP3 player via the USB socket, due to variances in MP3 encoding format, some MP3 files may not be able to play (or be copied) via the USB socket.
  • Page 18 D. PHONO/AUX INPUT/TAPE ENCODING. 1. Set the function to the desired media: Phono, Aux, or tape mode. Begin playing the turntable, Aux input, or tape you want to record. 2. Press the REC/COPY button to start recording. 3. Press the REC/QUALITY button to select encoding quality. 4.

  • Page 19: Specifications

    Specifications AMPLIFIER section Output Power…………………………..2.0 W + 2.0 W Frequency Response………………….60 TO 20, 000 Hz TUNER section FM Section Frequency Range……………………..87.5 to 108 MHz AM Section Frequency Range………………….……530 to 1700 KHz CD PLAYER section Frequency Response……………….…..60 to 20, 000 Hz +/-4 Db Signal-to-Noise Ratio……………….…..55 dB (IEC-A) CASSETTE DECK section Track System...........4 Track, 2 channels stereo...
  • Page 20 Dimensions ( Lx D x H )…………..……..18.4’’x13.2’’x9.6’’(approx.) Weight……………………….………….…18 Ibs. (approx.) Standard Accessories………..………..…Operating Instruction Booklet 45 rpm Adapter Auxiliary Cable...

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide In case of trouble with the unit, please look through this chart and see if you can solve the problem by yourself before contacting your dealer. Problem Cause Solution Power does not come on Unit is unplugged. Connect the unit to the AC when the power switch is power supply.
  • Page 22 The sound is distorted or The tape heads are dirty. Clean the tape heads. faint. Cannot listen to any station, station tuned-in Properly tune-in or signal appears weak. properly. desired station. A TV set is being used nearby Turn-off the interfering TV The sound is distorted The antenna is not oriented Re-orient the antenna until...
  • Page 23 No return will be shipped back to a PO Box. Please include your check or money order in the amount of $12.00, payable to Innovative Technology Electronics Corp. to cover handling and return shipping charges. (IT) will not be responsible for delays or unprocessed claims resulting from a purchaser’s failure to provide any or all of the necessary...
