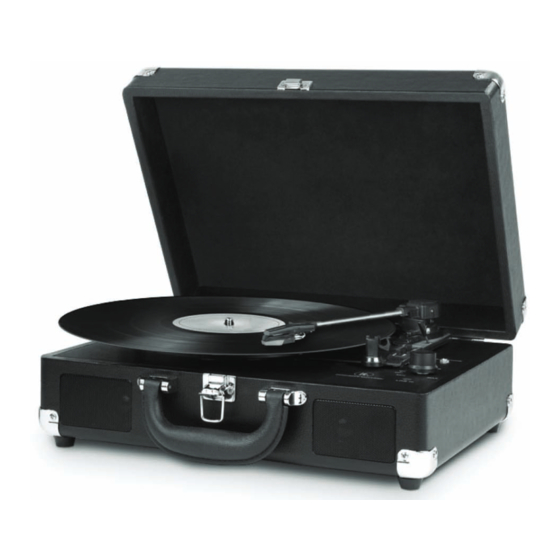

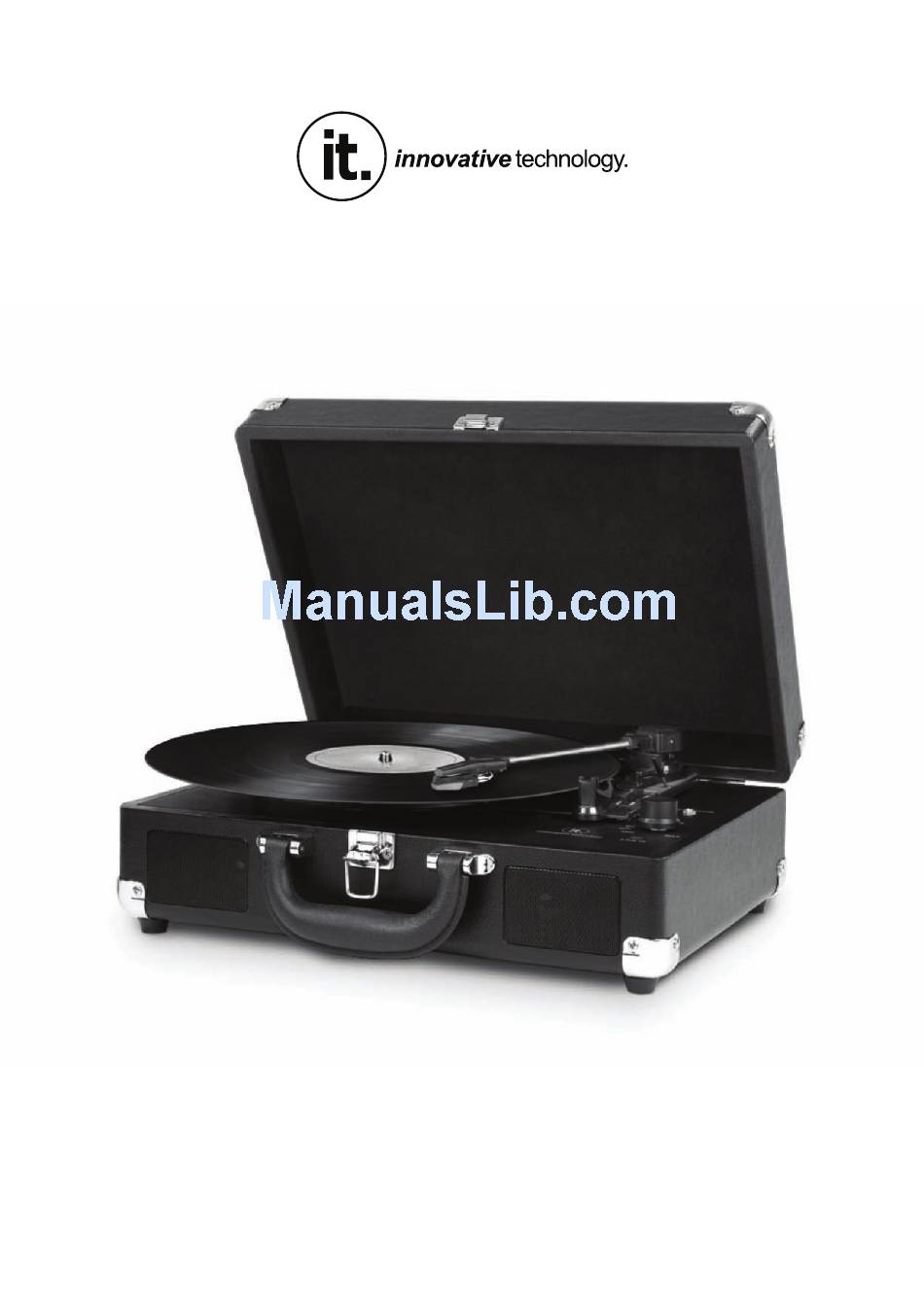

- Page 1 3-Speed Vintage Turntable Model: ITVS-550 Instruction Manual PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ................2 SPECIFICATIONS .................... 3 TURNTABLE LAYOUT..................4 TURNTABLE OPERATION ................5 POWER SUPPLY ..................5 BASIC OPERATION ..................5 TURNTABLE NEEDLE REPLACEMENT............. 5 AUX-IN OPERATION..................6 EARPHONE OPERATION ................6 FCC STATEMENT .................... 6 CALIFORNIA PROP 65 WARNING..............6 IT WARRANTY.................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. -
Page 4: Specifications
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO PREVENT The exclamation point within an equilateral The lightning flash with arrowhead within an equilateral triangle is intended to alert the user... -
Page 5: Turntable Layout
TURNTABLE LAYOUT TURNTABLE PLATTER TURNTABLE SHAFT 45 RPM ADAPTOR LIFT LEVER TONE ARM SPEED SELECTION SWITCH HEADPHONE JACK AUTO AND MANUAL STOP SELECTION SWITCH TONE ARM CLIP POWER LIGHT INDICATOR POWER ON/OFF AND VOLUME KNOB STYLUS CARTRIDGE LINE-IN JACK BUCKLE HANDLE SPEAKERS POWER ADAPTOR JACK... -
Page 6: Turntable Operation
TURNTABLE OPERATION POWER SUPPLY Insert the adaptor plug into the DC IN jack on the rear of the unit, then connect the AC/DC adaptor (5V, 1A AC100-240V, 50-60Hz) to a AC/DC wall outlet. BASIC OPERATION 1. Lift the BUCKLE on the front of the turntable and open the lid. 2. -
Page 7: Aux-In Operation
AUX-IN OPERATION An external (auxiliary) audio source (i.e. personal CD/MP3 Player/Mobile phone or computer) can be connected to this apparatus via the LINE-IN JACK. 1. Plug a detachable Aux Cable (not provided) into the LINE-IN socket on the function panel of the apparatus. 2. -
Page 8: It Warranty
Limited Warranty: 90 Days Labor, One Year Parts Innovative Technology Electronics Corp. (IT) warrants the product to be free from “Defects” in materials under normal use for a period of “One Year” from the date of the original purchase. The Warranty is “Not”...
