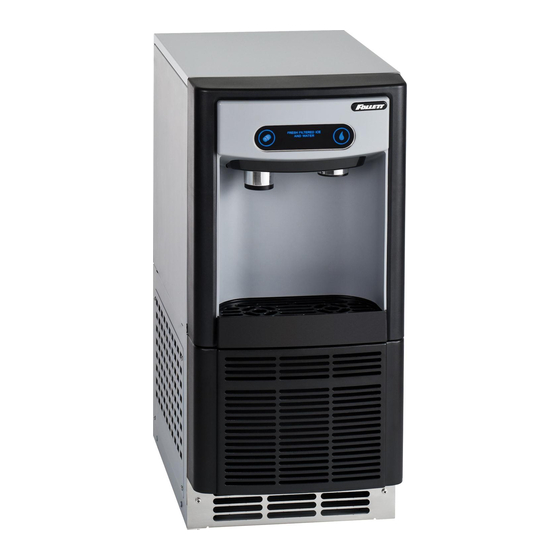

Undercounter Ice and Water Dispenser
®
with Chewblet
Ice Machine
E7UC100A, E7UD100A
Installation, Operation and Service Manual
Serial numbers E01087 and above
E7UC100A
E7UD100A
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
00976746R04
Advertisement
Table of Contents
Related Manuals for Follett E7UC100A
Summary of Contents for Follett E7UC100A
- Page 1 Undercounter Ice and Water Dispenser ® with Chewblet Ice Machine E7UC100A, E7UD100A Installation, Operation and Service Manual Serial numbers E01087 and above E7UC100A E7UD100A Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 •...
- Page 2 Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
-
Page 3: Table Of Contents
Evaporator Assembly ..............32 Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 4: Welcome
Children should be supervised to ensure that they do not play with the appliance. Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 5: Specifi Cations
80 cm (31.50") Unit Shipping Weight 50 kg (110 lb) 50 kg (110 lb) Ambient Information CAUTION! The E7UC100A and E7UD100A are for indoor use only. Maximum Minimum Air Temperature* 38 C (100 F) 10 C (50 F) Water Temperature 32.2 C (90 F) -
Page 6: Detailed Drawing
37.0 cm (14.55") Dimension E7UC100A E7UD100A (ADA) 85.1 cm (33.50") 80.0 cm (31.50") 60.7 cm (23.91") 55.7 cm (21.91") 57.6 cm (22.69") 52.6 cm (20.69") 61 mm 76 mm (2.40") (2.98") 1/4" MPT water inlet Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 7: Installation
4. Install the angle bracket inside the cabinet,18.15" (461 mm) Fig. 2 from the toe kick (Fig. 2.1). The bracket prevents the dispenser from being located/pushed beyond the recommended cabinet space depth. Do not attach the bracket to the dispenser. 46.1 cm (18.15") Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... - Page 8 9. Install fi lter as shown. Turn fi lter clockwise until it is fully seated (Fig. 4.3). 10. Connect power supply. 11. Sanitize the dispenser prior to use (see Cleaning and Sanitizing on page 11). Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
-
Page 9: Maintenance/Cleaning Mode
5. Remove and set aside the front panel (Fig. 6.4) - do not disengage the plug on the back of the User Interface or the tubing at the water dispenser chute (if so equipped). Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 10: Filter Display Indicator Activation
No internal filter Internal filter supplied or to display "Fresh Filtered" Not used (OFF position) Not used (OFF position) 15 minute delay 30 minute delay Not used (OFF position) Six-month PM enabled Six-month PM disabled Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 11: Cleaning And Sanitizing
Place a bucket under the dispense chute and remove cap. Note: Some sanitizing solution will remain and drain out when cap is removed. Reposition cap on bin lid spout. Reinstall front panel, ice dispense chute, and drip tray. Press and hold maintenance/clean switch to exit Maintenance Mode. Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 12: Service
12 hours has elapsed or ice or water has dispensed. Making ice Green Gearmotor, compressor, and fan motor energized. Low bin Green Bin switch closed calling for ice. Power on Green Power supplied to unit. Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 13: Evaporator Disassembly
User Interface. Lift and remove the top panel, set aside (Fig. 11.5). 8. Remove two screws (Fig. 11.6) and remove left side panel. 9. Remove two screws (Fig. 11.7) and remove right side panel. Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... - Page 14 § Pull gear motor from auger (Fig. 13.3). § Remove main housing insulation (Fig. 13.4). 13. Remove all traces of petro-gel from auger shaft. 14. Remove compression nozzle: Fig. 14 § Loosen hose clamp (Fig. 14.1). § Remove transport tube (Fig. 14.2). Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
- Page 15 17. Remove compression nozzle (Fig. 15.3). 18. Remove main housing: Fig. 16 § Disconnect vent line from T fi tting (Fig. 16.1). 19. Remove three M6x25 socket head allen screws Fig. 17 (Fig. 17.1). 20. Remove main housing (Fig. 17.2). Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
-
Page 16: Evaporator Assembly
5. Install auger (Fig. 19.4). 6. Install main housing: Fig. 20 § Slide main housing onto auger shaft (Fig. 20.1). § Install three M6x25 allen screws (Fig. 20.1). § Connect vent line to T fi tting (Fig. 20.1). Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... - Page 17 Fig. 22 9. Tighten hose clamp (Fig. 22.2). 10. Install gear motor: Fig. 23 § Install main housing insulation (Fig. 23.1). § Slide gear motor onto auger shaft (Fig. 23.2). § Install two M6x90 allen screws (Fig. 23.3). Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
- Page 18 13. Install spacer, ensure that key is captured in slot Fig. 25 (Fig. 25.1) 14. Insert screwdriver into groove of auger shaft and pry Fig. 26 shaft outwards (Fig. 26.1). 15. Insert retainer into groove (Fig. 26.2), ensure that retainer is aligned with hole in spacer. Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
- Page 19 16. Install screw and tighten (Fig. 27.1). Fig. 27 17. Plug in gear motor (Fig. 28). Fig. 28 § BLUE to BLUE § BLACK to BLACK § WHITE to WHITE § Connect ground wire with ground screw. Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
-
Page 20: Water Feed Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––– (continued) Water Feed Schematic Evaporator Float Water Chute (optional) Water Solenoid Valve Filter (optional) (optional) Water Solenoid Valve Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 21: Bin Melt Water/Evaporator Feed/Clean Out System Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Melt Water/Evaporator Feed/Clean Out System Schematic Storage Bin Vent System Schematic Storage Bin Vent Tube Reservoir Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 22: Refrigeration Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Refrigeration Schematic CONDENSER FILTER-DRIER CAP TUBE COMPRESSOR EVAPORATOR ACCUMULATOR LOW PRESSURE LIQUID HIGH PRESSURE VAPOR HIGH PRESSURE LIQUID LOW PRESSURE VAPOR Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 23: Condenser Fan Motor Removal
Service –––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Condenser Fan Motor Removal Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 24: User Interface Display Identifi Cation
Service - 8000 Call Follett Technical Service Group hr bushing at (877) 612-5086 or +1 (610) 252- check 7301. The fl ashing wrench indicates that the 8000 hr bushing check is required. Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... - Page 25 Internal leak in dispenser Locate leak and repair - Press reset on control board. Contact Follett if ice machine is leaking. Sleep mode Press either dispense button to return to normal operation. Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
-
Page 26: Electrical Wiring Diagram
Service –––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Electrical Wiring Diagram Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... -
Page 27: Parts
Panel, Top Left 00924761 Panel, Top Right 00924779 Panel, Top 00957654 Panel, Rear 00968909 Panel, Lower, E7UC100A Height: 12.0" (304.8 mm) 00924738 Panel, Lower, E7UD100A Height: 10.0" (254 mm) 00924746 Panel, Intake 00924787 Not Shown Packaging for Returns, Dispenser 00957993... -
Page 28: Interior
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Interior Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... - Page 29 00924753 Bracket, Stop 00924795 Power Input 00968974 Not Shown Cord, Power IEC60320-C13 to BS 1363 00976753 Not Shown Cord, Power IEC60320-C13 to AS 3112 00976761 Not Shown Cord, Power IEC60320-C13 to CEE 7/7 00976779 Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
-
Page 30: Bin Assembly
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Assembly Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... - Page 31 Ice Chute Assembly 00957670 Ice Transport Tubing with Insulation 00957746 Switch, Shuttle 00957753 Shuttle, Complete Assembly 00957761 Lid, Bin Assembly 00957779 Bin, Assembly 00957787 Auger, Dispense 00957795 Motor, Dispense 00968982 Cap and Insulation, Bin 00957936 Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
-
Page 32: Evaporator Assembly
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Evaporator Assembly Undercounter Dispenser and Ice machine E7UC100A/E7UD100A... - Page 33 Not Shown Water fi lter cartridge, 5 micron 00968107 Not Shown Cleaning and sanitizing kit, single use 00979856 Not Shown SafeClean, case of 24 00132001 Not Shown IMS II sanitizer concentrate, 16 oz 00979674 Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
- Page 34 Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
- Page 35 Undercounter Dispenser and Ice machine E7UC100A/E7UD100A...
- Page 36 Follett Europe Polska Sp. z o.o. 801 Church Lane • Easton, PA 18040, USA Mokry Dwór 26 c • 83-021 Wiślina, Poland Toll free (877) 612-5086 • +1 (610) 252-7301 +48 (58) 785-6140 • Fax +48 (58) 785-6159 www.follettice.com 00976746R04 www.folletteurope.com © Follet Corporation 8/13...
