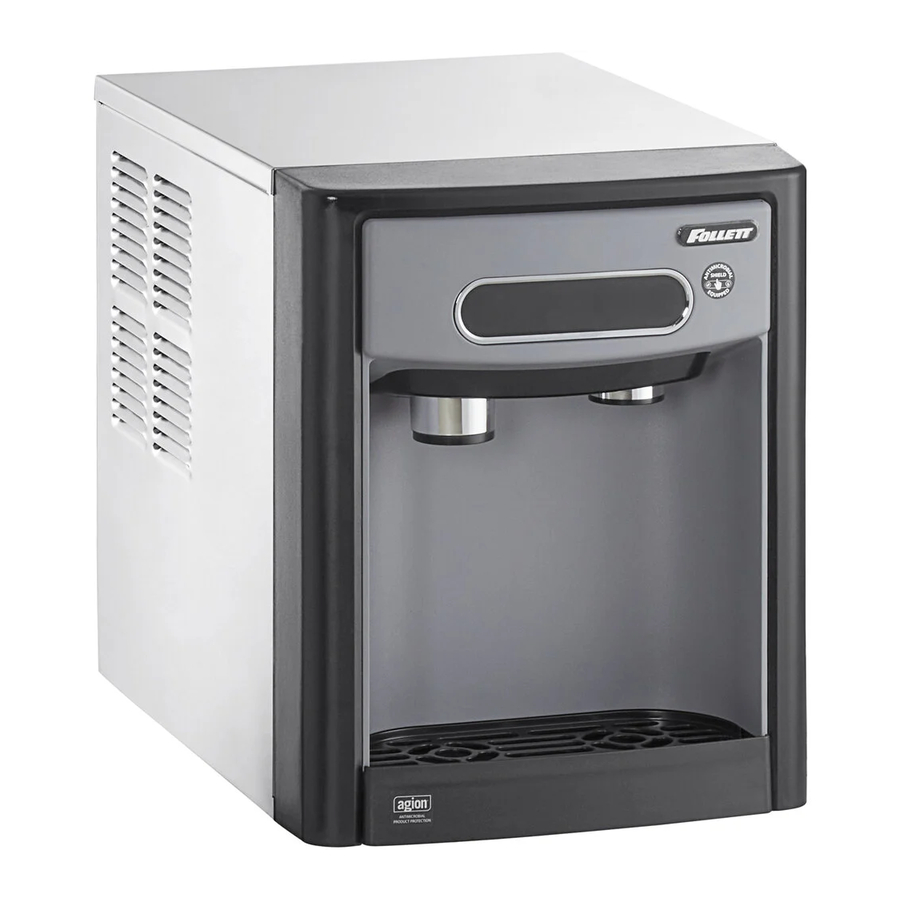

Countertop and Freestanding Ice and Water
®
Dispenser with Chewblet
Ice Icemaker
7CI100A, 7FS100A
Installation, Operation and Service Manual
Serial numbers D25455 to E01086
7CI100A
7FS100A
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
00951640R06
Advertisement
Table of Contents
Related Manuals for Follett 7CI100A
Summary of Contents for Follett 7CI100A
- Page 1 Countertop and Freestanding Ice and Water ® Dispenser with Chewblet Ice Icemaker 7CI100A, 7FS100A Installation, Operation and Service Manual Serial numbers D25455 to E01086 7CI100A 7FS100A Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 •...
-
Page 2: Table Of Contents
Base Stand ................30 Dispenser and Icemaker 7CI100A/7FS100A... -
Page 3: Welcome
The following is an explanation of the different model numbers. Dispenser Storage Confi guration Icemaker Capacity Condenser Capacity 7 lb Countertop lb per day Air-cooled Freestanding Dispenser and Icemaker 7CI100A/7FS100A... -
Page 4: Important Safety Information
17.53" (450 mm) 41.93" (1065 mm) Unit Shipping Weight 90 lb (41 kg) 120 lb (54.4 kg) Ambient Information CAUTION! The 7CI100A and 7FS100A are for indoor use only. Maximum* Minimum* Air Temperature † 100 F (38 C) 50 F (10 C) Water Temperature 90 F (32.2 C) -
Page 5: Specifi Cations
Must be grounded - requires 3-prong outlet. Do not remove ground. Refrigeration WARNING! Do not damage the refrigerant circuit. Refrigerant can cause personal injury and/or damage dispenser. Refrigerant R134a – 7.2 ounces (204 grams) Heat Rejection 1700 BTU/hr (498 W) Dispenser and Icemaker 7CI100A/7FS100A... -
Page 6: Detailed Drawing
14.55" (370 mm) NEMA 5-15 right angle 17.54" 17.54" (446 mm) (446 mm) 6.79" 6.72" (172 mm) (171 mm) power cord 2.40" 2.98" (61 mm) (76 mm) 1/4" MPT water inlet 24.39" (620 mm) 22.05" (560 mm) Dispenser and Icemaker 7CI100A/7FS100A... -
Page 7: Installation
Follett recommends installing the water fi lter just prior to initial sanitizing. Valve 5. Connect power supply. 6. Sanitize the dispenser prior to use (see Cleaning and Sanitizing on page 13). 1/4" MPT Dispenser and Icemaker 7CI100A/7FS100A... -
Page 8: Freestanding Installation
8 ft. (2.4 m) cord and plug. Water: supply line (with shut-off valve) connects to the dispenser's 1/4" MPT inlet. NOTICE! If installing optional Leg Accessory, complete those steps before proceeding. See page 10 for Leg Accessory instructions. Dispenser and Icemaker 7CI100A/7FS100A... - Page 9 Follett recommends installing the water fi lter just prior to initial sanitizing. Valve Connect power supply. 8. Sanitize the dispenser prior to use (see Cleaning and Sanitizing on page 13). 1/4" MPT Dispenser and Icemaker 7CI100A/7FS100A...
- Page 10 2. Lift and remove the top panel, set aside (Fig. 9.1). 3. Remove two screws (Fig. 9.2) and remove left side panel. 4. Install fi lter as shown. Turn fi lter clockwise until it is fully seated (Fig. 9.3). Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 11: Maintenance/Cleaning Mode
5. Remove and set aside the front panel (Fig. 11.4) - do not disengage the plug on the back of the User Interface or the tubing at the water dispenser chute (if so equipped). Dispenser and Icemaker 7CI100A/7FS100A... -
Page 12: Filter Display Indicator Activation
Ice only Internal filter supplied or to display "Fresh Filtered" No internal filter Not used (OFF position) Not used (OFF position) 30 minute delay 15 minute delay Not used (OFF position) Six-month PM disabled Six-month PM enabled Dispenser and Icemaker 7CI100A/7FS100A... -
Page 13: Cleaning And Sanitizing
8. Place a bucket under the dispense chute and remove cap. Note: Some sanitizing solution will remain and drain out when cap is removed. Reposition cap on bin lid spout. 9. Reinstall front panel, ice dispense chute, and drip tray. 10. Press and hold maintenance/clean switch to exit Maintenance Mode. Dispenser and Icemaker 7CI100A/7FS100A... -
Page 14: Service
12 hours has elapsed or ice or water has dispensed. Making ice Green Gearmotor, compressor, and fan motor energized. Low bin Green Bin switch closed calling for ice. Power on Green Power supplied to unit. Dispenser and Icemaker 7CI100A/7FS100A... -
Page 15: Water Feed Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Water Feed Schematic Evaporator Float Water Chute (optional) Water Solenoid Valve Filter (optional) (optional) Water Solenoid Valve Dispenser and Icemaker 7CI100A/7FS100A... -
Page 16: Bin Melt Water/Evaporator Feed/Clean Out System Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Melt Water/Evaporator Feed/Clean Out System Schematic Storage Bin Vent System Schematic Storage Bin Vent Tube Reservoir Dispenser and Icemaker 7CI100A/7FS100A... -
Page 17: Refrigeration Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Refrigeration Schematic CONDENSER FILTER-DRIER CAP TUBE COMPRESSOR EVAPORATOR ACCUMULATOR LOW PRESSURE LIQUID HIGH PRESSURE VAPOR HIGH PRESSURE LIQUID LOW PRESSURE VAPOR Dispenser and Icemaker 7CI100A/7FS100A... -
Page 18: Condenser Fan Motor Removal
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Condenser Fan Motor Removal Dispenser and Icemaker 7CI100A/7FS100A... -
Page 19: User Interface Display Identifi Cation
Service - Call Follett Technical Service Group at 8000 hr (877) 612-5086 or +1 (610) 252-7301. bushing check The fl ashing wrench indicates that the 8000 hr bushing check is required. Dispenser and Icemaker 7CI100A/7FS100A... - Page 20 Internal leak in Locate leak and repair - Press reset dispenser on control board. Contact Follett if icemaker is leaking. Sleep mode Press either dispense button to return to normal operation. Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 21: Electrical Wiring Diagram
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Electrical Wiring Diagram COMPRESSOR AUGER Dispenser and Icemaker 7CI100A/7FS100A... -
Page 22: Parts
Parts ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Exterior Dispenser and Icemaker 7CI100A/7FS100A... - Page 23 00957993 Not Shown Fitting, Elbow - 1/4" FPT x 1/4" Tube 00974261 Not Shown Drip Tray Drain Kit 00956375 Not Shown Drip Tray Drain Kit with 4" legs 00981977 Not Shown Covers, Agion, User Interface 00969030 Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 24: Interior
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Interior Dispenser and Icemaker 7CI100A/7FS100A... - Page 25 Valve, Failsafe Solenoid 00957738 Compressor with Mounting Hardware 00958009 Condenser 00958017 Condenser Fan and Cord 00958025 Control Board with Stand-offs 00958033 Capacitor, Gearmotor 00958041 Sensor, Retainer Hardware Kit 00958066 Relay and Overload 00958090 Refrigeration, Piping Assy 00958132 Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 26: Bin Assembly
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Assembly Dispenser and Icemaker 7CI100A/7FS100A... - Page 27 00957761 Lid, Bin Assy 00957779 Bin, Assy 00957787 Auger, Dispense 00957795 Motor, Dispense 00957803 Cap and Insulation, Bin 00957936 Not Shown For serial numbers D17619 and below: Bin Cap 00931519 Ice Chute 00927210 Chute Adapter 00926550 Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 28: Evaporator Assembly
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Evaporator Assembly Dispenser and Icemaker 7CI100A/7FS100A... - Page 29 Housing, Bushing with Insulation 00957886 Hardware kit, Gearmotor 00957894 Reservoir and Float Complete Assy 00957902 Lid, Reservoir with Insulation and O-Ring 00957910 Float Valve 00957928 “T” Fitting - 1/4" 502923 Tubing - 1/4" (sold in 12" increments) 502079 Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 30: Base Stand
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Base Stand Dispenser and Icemaker 7CI100A/7FS100A... - Page 31 SafeClean, case of 24 00132001 Not Shown IMS II sanitizer concentrate, 16 oz 00979674 Not Shown 6" Legs for base stand, set of 4 00956318 Not Shown 4" Legs for countertop dispenser, set of 4 00956300 Dispenser and Icemaker 7CI100A/7FS100A...
- Page 32 SafeCLEAN is a trademark of Follett Corporation. Chewblet and Follett are registered trademarks, and Horizon is a trademark of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00951640R06 Toll free (877) 612-5086 • +1 (610) 252-7301 © Follet Corporation 5/13 www.follettice.com...
