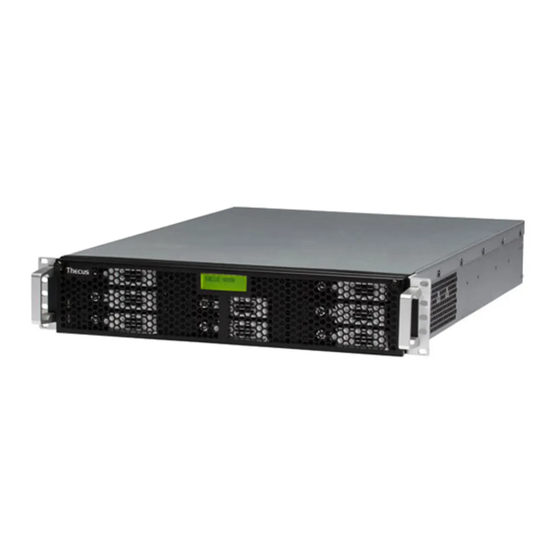

Thecus N8800 Manual
Motherboard replacing sop
Hide thumbs
Also See for N8800:
- User manual (125 pages) ,
- User manual (153 pages) ,
- Quick installation manual (6 pages)
Related Manuals for Thecus N8800
Summary of Contents for Thecus N8800
- Page 1 N8800 motherboard replacing SOP Purpose: N8800 motherboard replacement. Procedures: Remove the N8800 Motherboard 2.1 Please prepares (Crosshead) Screwdriver 2.2 Using screw drive to cover panel’s screw. N8800 motherboard replacing SOP 6/13/2013...
- Page 2 N8800 motherboard replacing SOP 2.3 Overlook of inside 2.4 Remove the Riser Card Without the riser card N8800 motherboard replacing SOP 6/13/2013...
- Page 3 N8800 motherboard replacing SOP 2.5 Remove the BP board Lift it. N8800 motherboard replacing SOP 6/13/2013...
- Page 4 N8800 motherboard replacing SOP 2.6 Remove all the connector. N8800 motherboard replacing SOP 6/13/2013...
- Page 5 N8800 motherboard replacing SOP N8800 motherboard replacing SOP 6/13/2013...
- Page 6 N8800 motherboard replacing SOP 2.7 Here’s without any connector and remove MB’s stable screws. 2.8 Remove the DOM. N8800 motherboard replacing SOP 6/13/2013...
- Page 7 N8800 motherboard replacing SOP 2.9 Remove the CPU’s cooler and DRAM. N8800 motherboard replacing SOP 6/13/2013...
- Page 8 N8800 motherboard replacing SOP 2.10 Install the N8800 Motherboard Reverse above steps 2-1 to 2-9 to assemble the NAS unit with new motherboard. N8800 motherboard replacing SOP 6/13/2013...
- Page 9 N8800 motherboard replacing SOP Warning 3.1 When attach cable connectors to the motherboard in step 2-6, make sure the pin1 location. 3.2 Beware 2-8 DOM pin location in the middle of the bracket, otherwise the DOM may be burnt 3.3 Make 2-9 CPU pin 1 location should easily & smoothly installed.
