ANS Z21.97-2010, Outdoor Decorative Gas Appliances
CGA CR 97-003 Outdoor Gas Fireplaces
Questions, problems, missing parts?
Before returning to your retailer, call our customer service hotline at 1-866-985-7877,
9 a.m - 6 p.m., EST, Monday - Friday or email at cservice@welltraveled.net.

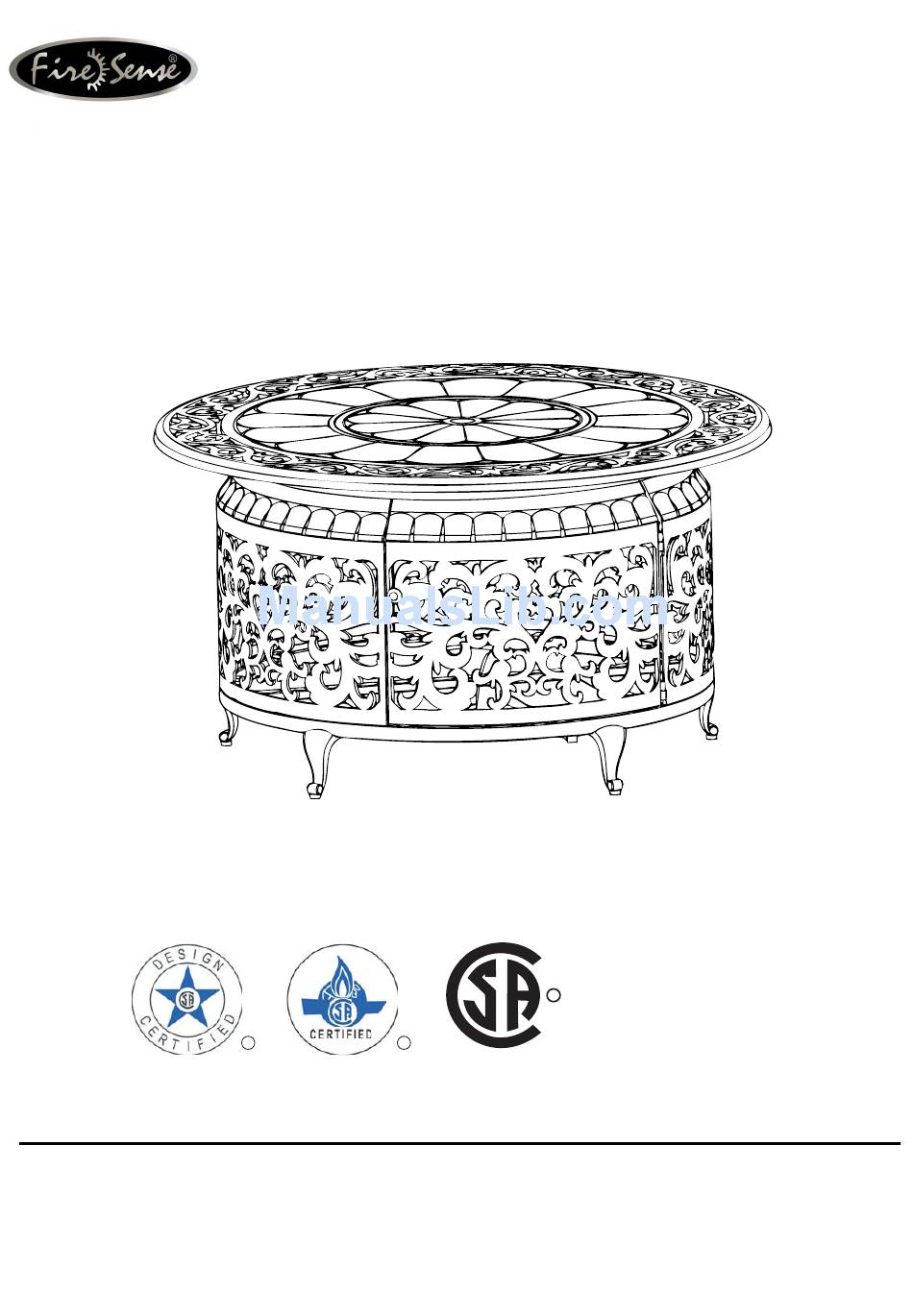

Owner's
Manual
OUTDOOR
FIRE PIT
ITEM # 61168
Attach your receipt here
Serial#___________Purchase Date___________
R
R
R
C
US
1
Advertisement
Table of Contents
Related Manuals for Fire Sense 61168
Summary of Contents for Fire Sense 61168
- Page 1 Owner’s Manual OUTDOOR FIRE PIT ITEM # 61168 Attach your receipt here Serial#___________Purchase Date___________ ANS Z21.97-2010, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces Questions, problems, missing parts? Before returning to your retailer, call our customer service hotline at 1-866-985-7877,...
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY l a t Bracket Stud Washer,Spring washer & nut (8mm) Bolt (6*22), Washer,Spring washer & nut Latch plate... -
Page 3: Hardware Contents
HARDWARE CONTENTS Bolt (6*22), Washer, Stud (8*40) Washer, Wrench, Spring washer & nut Qty. 1 Spring washer & nut Qty. 4 Qty. 20 (8mm) Qty. 4 Latch plate Qty.2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product.If you have any questions regarding the product, please call customer service 1-866-985-7877, 9 a.m. - Page 4 SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This fire pit is a combustion appliance. All combustion paper or cardboard, a safe distance away from the appliances produce carbon monoxide (CO) during the fire pit as recommended by the instructions.
-
Page 5: Burn Hazard
SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”... -
Page 6: Operation Checklist
OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating: 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3. - Page 7 ASSEMBLY INSTRUCTIONS 1. Fix the Gas Tank Support (K) onto the Pedestal (B). 2. Use Bolt (6*22), Washer,Spring washer & nut J to connect and fix the side Panel C1 and C2 onto the unit.(Refer to the following figures, and DO NOT OVER TIGHTEN the screws) Hardware Used Bolt (6*22),...
- Page 8 ASSEMBLY INSTRUCTIONS 4.Fix the Burner Bracket (E) to the unit using Bolt (6*22), Washer, Spring washer & nut (J). Place the Burner (F) on the Burner Bracket (E). Hardware Used Bolt (6*22), Washer, Spring washer & nut 5. Fix the Table Top (A) onto the Unit with Stud (8*40)(H), Washer,Spring washer &...
- Page 9 ASSEMBLY INSTRUCTIONS 6. Put the Removeable Burner Cover (G) on the burner. 7. Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20 lb. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system.
- Page 10 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
- Page 11 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection...
- Page 12 OPERATION INSTRUCTIONS DANGER WARNING • CARBON MONOXIDE HAZARD Very hot while in a operation! Never lean over the fireplace while in use. • For outdoor use only. Never use inside house, or other Do not touch tile of spark guard while the fire pit is in unventilated or enclosed areas.
-
Page 13: For Your Safety
OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When fire pit is ON: Burner will display tongues of blue and yellow flame. - Page 14 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Fire pit does NOT reach the desired temperature. Fire pit glow is excessively uneven. Fire pit makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.
-
Page 15: Troubleshooting
TROUBLESHOOTING Propane cylinder is empty Replace propane cylinder Burner won’t light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and fill the Gas pressure is low cylinder Outdoor temperature is less than 40ºF and Burner flame is low Use a full cylinder... - Page 16 Customer Service Hours:Mon.– Fri.9:00 a.m.–6:00 p.m. (EST) Fire Sense®, Mojave Sun ®, and Well Traveled Living® are registered trademarks of Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.® and are protected by U.S. copyrights and trademarks. All rights reserved.
