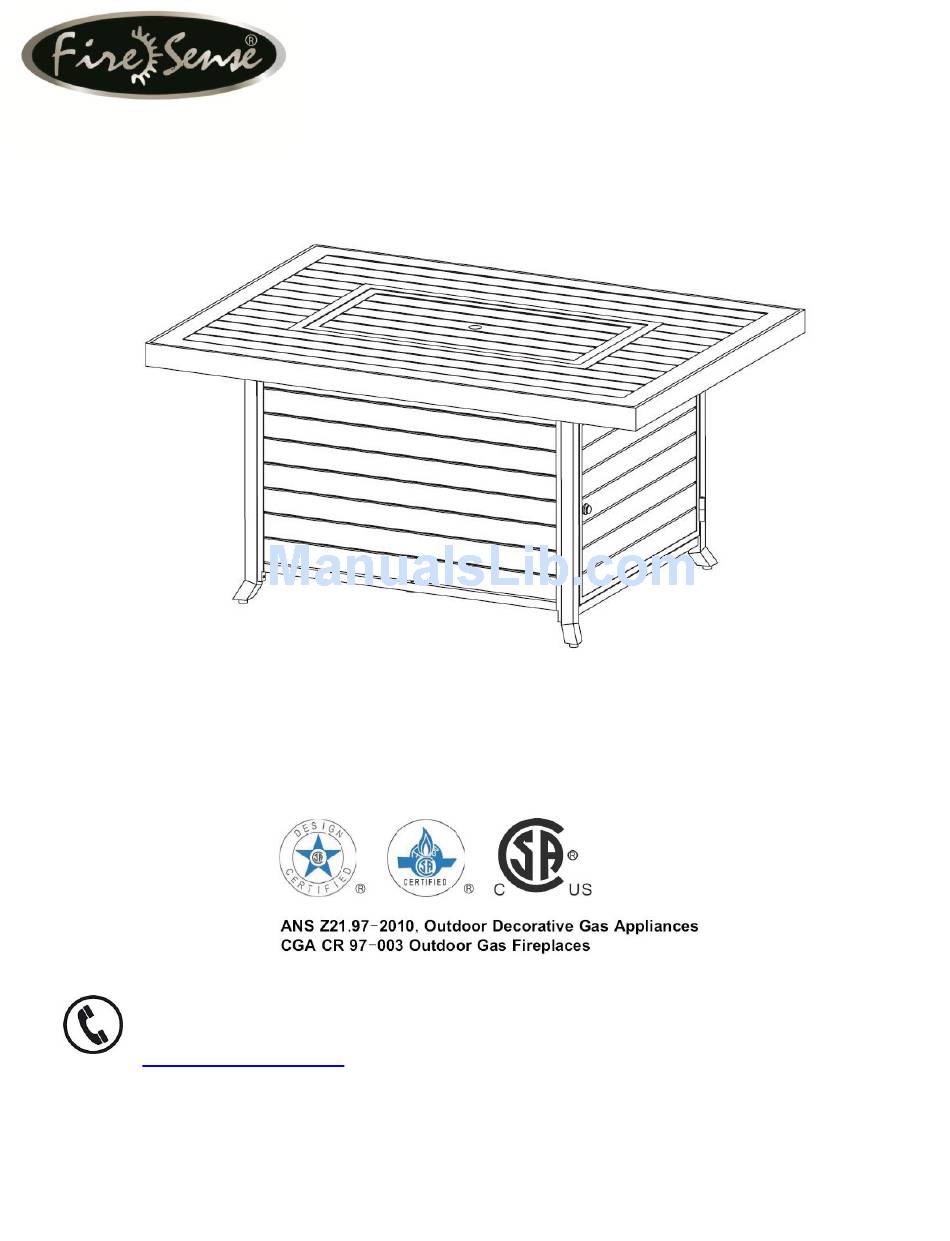

Owner's
Manual
OUTDOOR FIRE PIT
ITEM # 61898
ATTACH YOUR RECEIPT HERE
Serial Number ___________ Purchase Date _____________
Manufacturer: Changzhou Wellife Furnace Co., Ltd
Questions, problems, missing parts? Before returning to your retailer, call our customer
service hotline at 1-866-985-7877, 9 a.m. – 6 p.m., EST, Monday – Friday or email at
cservice@welltraveled.net.
.
1
Advertisement
Table of Contents
Related Manuals for Fire Sense 61898
Summary of Contents for Fire Sense 61898
- Page 1 Owner's Manual OUTDOOR FIRE PIT ITEM # 61898 ATTACH YOUR RECEIPT HERE Serial Number ___________ Purchase Date _____________ Manufacturer: Changzhou Wellife Furnace Co., Ltd Questions, problems, missing parts? Before returning to your retailer, call our customer service hotline at 1-866-985-7877, 9 a.m. – 6 p.m., EST, Monday – Friday or email at...
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Burner Cover Table Top Burner Burner Bracket Side Panel 1 Side Panel 2 Side Panel 3 Side Panel 4 (Door Frame/Burner Controls) Gas Tank Bracket (side) Gas Tank Support (bottom) Guard Bar Bolt(8*50mm)/Nut(M8)/Washer(M8)/Spring Washer Bolt(6*20mm)/Washer(M6) Screwdriver Wrench Allen Wrench... -
Page 3: Hardware Contents
HARDWARE CONTENTS SAFETY INFORMATION SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install this appliance. If you have any questions regarding the product, please call customer service 1-866-985-7877, 9 a.m. – 6 p.m., EST, Monday – Friday. -
Page 4: Explosion - Fire Hazard
SAFETY INFORMATION DANGER DANGER EXPLOSION - FIRE HAZARD CARBON MONOXIDE HAZARD Keep solid combustibles, such as building materials, This fire pit is a combustion appliance. All combustion paper or cardboard, a safe distance away from the appliances produce carbon monoxide (CO) during the fire pit as recommended by the instructions. -
Page 5: Burn Hazard
SAFETY INFORMATION WARNING WARNING California Proposition 65 This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and "... -
Page 6: Operation Checklist
OPERATION CHECKLIST Operation Checklist For a safe and pleasurable heating experience, perform this check before each use. Before Operating: 1. I am familiar with entire owner’s manual and understand all precautions noted. 2. All components are properly assembled, intact and operable. 3. - Page 7 ASSEMBLY NOTE: It is best to use TWO PEOPLE for assembly of this gas fire pit. 1. Connect Side Panels (E,F,G,H) at top and bottom of each panel with Bolt(6*20mm)/Washer(M6) (M) as shown in Figure 1 using Allen Wrench. (Make sure that holes found in the Side Panels of E and F are at the BOTTOM of the panels as these holes will help secure the Gas Tank Bracket and Gas Tank Support in Step 2 .) 2.
- Page 8 ASSEMBLY 3. Place the Burner Bracket (D) onto the assembled panels. Turn the Burner (C) so that the burner controls are facing Panel H (NOTE: There will be a notch at the top of Panel H to accommodate the control knob on the burner.) Then set the Burner (C) onto the Burner Bracket.
- Page 9 ASSEMBLY 5. Pour the Glass Beads (Q) around the Burner (C). Put the Burner Cover (A) on the Burner when the fire pit is NOT in use. When the fire pit is completely cool, you may cover it with the Protective Fire Pit Cover (R).
- Page 10 ASSEMBLY A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation(DOT) or the standard for cylinders, spheres and tubes for transportation of dangerous goods and commission, CAN/CSA-B339.
- Page 11 OPERATION INSTRUCTIONS Leak Check WARNING Perform all leak tests outdoors. Extinguish all open flames. NEVER leak test when smoking. Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection connection 1.
- Page 12 OPERATION INSTRUCTIONS DANGER WARNING • CARBON MONOXIDE HAZARD Very hot while in operation! Never lean over the fireplace while in use. • For outdoor use only. Never use inside house, or other Failure to comply with these instructions may result in unventilated or enclosed areas.
-
Page 13: For Your Safety
OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this fire pit. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When fire pit is ON: Burner will display tongues of blue and yellow flame. - Page 14 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Fire pit does NOT reach the desired temperature. Fire pit glow is excessively uneven. Fire pit makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage fire pit and render it unsafe for use.
-
Page 15: Troubleshooting
TROUBLESHOOTING Wait until the propane cylinder Propane cylinder is frosted over warms up and becomes unfrosted Burner won`t light Blockage in orifice Clear blockage Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and fill the Gas pressure is low cylinder Outdoor temperature is less than 40ºF and... - Page 16 Customer Service Hours: Mon. – Fri. 9:00 a.m. – 6:00 p.m. (EST) Fire Sense®, Mojave Sun ®, and Well Traveled Living® are registered trademarks of Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.® and are protected by U.S. copyrights and trademarks. All rights reserved.
