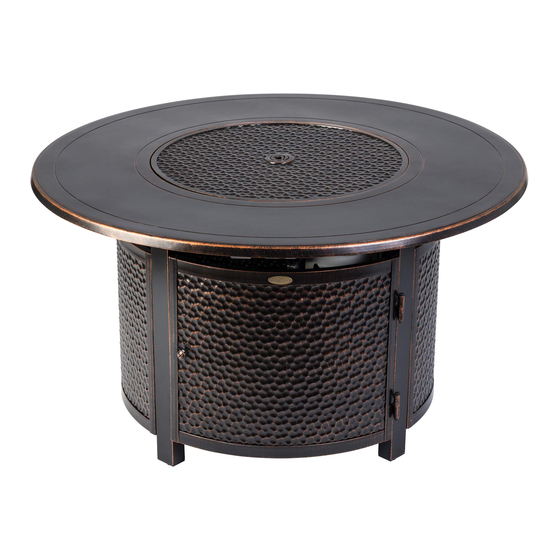

Leeward Hammered Aluminum Round LPG Fire Pit
INSTALLATION PRECAUTION:
This fire pit requires a minimum 18 inches of cross
ventilation in all directions. Failure to provide proper
ventilation can void the warranty.
ATTACH YOUR
RECEIPT HERE
Keep a cop y of your proof of purchase
or order confirmation which will be
needed if you need to contact us about
warranty coverage.
Purchase Date: _____ _
Questions, problems, missing parts?
Before returning to your retailer, our exceptional customer service is available.
Call us toll-free at (866) 985-7877, email us at cservice@welltraveled.net. or go online and
live chat at www.wtliving.com. Our hours are: 9 a.m. - 6 p.m., EST, Monday- Friday.
Item#: 62353
Burner#: ULC-PY54-C-E
WARNING
FOR YOUR SAFETY
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions
could result in fire or explosion, which
could cause property damage, personal
injury, or death.
WARNING
For Outdoor Use Only
WARNING
This product can expose you to chemicals including
Carbon Monoxide, Lead, Chromium (hexavalent
compounds), Di(2-ethylhexyl) phthalate (DEHP) and
Diisononyl phthalate (DINP), which are known to the
State of California to cause cancer and birth defects
or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
Manual updated Mar 2019
Advertisement
Table of Contents
Related Manuals for Fire Sense 62353
Summary of Contents for Fire Sense 62353
- Page 1 Leeward Hammered Aluminum Round LPG Fire Pit Item#: 62353 Burner#: ULC-PY54-C-E WARNING FOR YOUR SAFETY 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
-
Page 2: Table Of Contents
www.wtliving.com TABLE OF CONTENTS Page 2 Before You Begin Package Contents Page 3 Safety Information Page 4 Assembly Pages 5-8 Operating Instructions Pages 9-12 Conversion to Natural Gas Pages 13-15 Care and Maintenance Page 16 Troubleshooting Page 17 Warranty Information Page 18 BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this... -
Page 3: Package Contents
Remo va ble Burner Cover Burner Table Top Door Panel Panels Door Frame Leg Support Legs Tank Support Bar Tank Support Ring Protective Cover Fire Glass HARDWARE CONTENTS Washer/Spring Washer/ Stud (8x30mm) Nut (8mm) Stud (6x40mm) Bolt (6x20mm) Washer (M6) Spring Washer (M6) Qty 5 Qty 5... -
Page 4: Safety Information
SAFETY INFORMATION DANGER DANGER This appliance has been tested to and FOR YOUR SAFETY EXPLOSION—FIRE HAZARD • Keep solid combustibles, such as building If you smell gas: complies with the ANSI Z21.97-2014, Outdoor materials, paper, or cardboard Decorative Gas Appliances CGA CR 97-003 1. -
Page 5: Assembly Pages
PREPARATION Before beginning assembly, empty contents of carton and make sure all parts are present. Place all parts on a soft, level surface for assembly. NOTE: It is best to use TWO PEOPLE to assemble this gas fire pit. Estimated Assembly Time: 60 Minutes | DO NOT over tighten hardware! Assemble the fire pit base: Locate Door Panel D, three Side Side Panel Panels E, Door Frame Leg F, and two Support Legs G . - Page 6 Attach Tank Support Ring J to Tank Support Bar I by aligning holes in the center of Tank Support Bar with holes in the end of Tank Support Ring. Insert Bolt P through Washer Q and then into holes. Tighten with Hex Key W. Hardware Used: P Bolt (6x20mm) x 2 Q Washer (M6) x 2 Attach Tank Support Bar I to Door Frame Leg F and Support...
- Page 7 When all panels and the tank support have been secured, turn Burner Control (facing door) the table upright. Place the Burner B into the hole in the Table Top, rotated toward the left side of the door. NOTE This fire pit is constructed of aluminum, a relatively soft and flexible metal.
- Page 8 Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20Ib propane cylinder only. Use this fire pit only with a propane vapor withdrawal supply system. See chapter 5 of the standard storage and handling of liquefied petroleum gas, ANS/NFPA 58.
-
Page 9: Operating Instructions Pages
OPERATING INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. - Page 10 OPERATING INSTRUCTIONS LEAK CHECK WARNING! • Perform all leak tests outdoors. • Extinguish all open flames • NEVER leak test when smoking. • Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder Connection...
- Page 11 OPERATING INSTRUCTIONS CAUTION Do not attempt to operate until you have read and understand all General Safety Information in this manual, all assembly is complete, and leak test has been performed. WARNING DANGER! WARNING Very hot while in operation! FOR OUTDOOR USE ONLY Never lean over the fire pit while in use.
- Page 12 OPERATING INSTRUCTIONS DANGER! NOTE: This model has an Electronic Igniter and FOR OUTDOOR USE ONLY requires one AAA battery. Unscrew IGNITER Electronic igniter requires BUTTON to install. CARBON MONOXIDE HAZARD AAA battery Never use this fire pit inside a house or BEFORE LIGHTING : other unventilated or enclosed areas.
-
Page 13: Conversion To Natural Gas Pages
CONVERSION TO NATURAL GAS WARNING Make sure all control knobs and cylinder valves are in OFF position before converting. tanks and their use are covered elsewhere in this manual). If a Natural Gas connection is available, the user may wish to change the gas delivery system to the more permanent Natural Gas Supply. - Page 14 CONVERSION TO NATURAL GAS WARNING! To avoid the possibility of burns conversion should only be done when the fire pit is completely cool. Ensure burner is turned off. Turn gas off at source and disconnect the appliance before beginning conversion. WARNING! Fire Glass may have sharp edges.
- Page 15 CONVERSION TO NATURAL GAS Natural Gas Hook-Up The gas appliance is designed to operate at an inlet pressure of 7 inches water column. The piping up to the appliance is the responsibility of the installer. Connect the inlet valve to rigid pipe, copper tube or an approved flexible metal connector, which complies with Z21.4/CSA 6.10.
-
Page 16: Care And Maintenance
CARE & MAINTENANCE STORAGE: To enjoy years of outstanding performance from your fire pit, make sure between uses: you perform the following maintenance activities on a regular basis: • Turn control knob OFF. • Disconnect LP source. 1. Use warm soapy water for cleaning. Never use flammable or corrosive •... -
Page 17: Troubleshooting
TROUbl ESHOOTING CORRECTIVE ACTION PROBLEM POSSIBLE CAUSE Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Blockage in orifice Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than... -
Page 18: Warranty Information
THE PURCHASER. EXTEND YOUR WARRANTY When you purchase a Fire Sense, Patio Sense, or Avalon Home product, you have the peace of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year when you write a review of your purchase on www.wtliving.com within 365 days of purchase.
