Summary of Contents for Fire Sense Sporty 62133

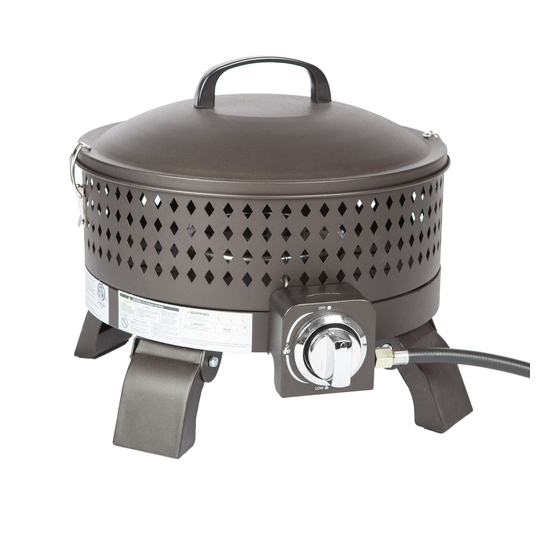

- Page 1 Comfort, Quality & Style Since 1998 Sporty Portable Gas Fire Pit Item#: 62133 e b h...
- Page 2 TABLE OF CONTENTS Table of Contents Page 2 Before You Begin Page 2 Package Contents Page 3 Safety Information Page 4-5 Assembly Page 6-7 Operating Instructions Pages 8-11 Care and Maintenance Page 12 Troubleshooting Page 13 Warranty Information Page 14...
- Page 3 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Handle Fire Ring Fire Bowl Buckle Fire Bowl Base Isolation Plate Ignition Box Control Valve Valve Base Ignition Button Isolation Plate Support Ignition Needle Ignition Cap Folding Leg Lava Rocks 3.3 lbs Regulator/Hose Assembly Tank Stand...
- Page 5 ASSEMBLY PREPARATION Before beginning assembly, be sure to empty contents of carton and make sure all parts are present. If any parts are missing, please con Place all parts on a soft, level surface for assembly. Estimated Assembly Time: 15 Minutes | DO NOT over tighten hardware! Locate the Folding Legs on the underside down the lock button located at the base of the leg.
- Page 6 ASSEMBLY Connect the Hose and Regulator cylinder. Place cylinder in the Tank Stand and tighten the screw at the base of the stand. indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of reach of children.
- Page 7 OPERATING INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the or the standard for cylinders, spheres and tubes for transportation of dangerous goods and commission, CAN/CSA-B339.
- Page 8 LEAK CHECK Perform all leak tests outdoors. NEVER leak test when smoking. Hose / Regulator Connection Underside of Burner Regulator / Cylinder Connection 1. Make 2-3 oz. of leak test solution (one part liquid dishwashing detergent and three parts water). 2.
- Page 9 OPERATING INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONLY Very hot while in operation! Safety Information in this manual and CARBON MONOXIDE HAZARD all assembly is complete and leak Never use this inside a house, or other test has been performed.
- Page 10 OPERATING INSTRUCTIONS OPERATION INFORMATION OPERATION CHECKLIST: AND SAFETY: For a safe and pleasurable heating experience, perform this check before each use: BEFORE OPERATING: alerted to the hazards of high surface I am familiar with entire owner’s manual and understand all temperatures and should stay away precautions noted.
- Page 11 CARE & MAINTENANCE STORAGE: Between uses: perform the following maintenance activities on a regular basis: cleaning agents. from direct contact with 2. While cleaning your unit, be sure to keep the area around the burner and inclement weather (such control compartment dry at all times. Do not submerge the control valve as rain, sleet, hail, snow, dust assembly.
- Page 12 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Propane cylinder is empty Replace propane cylinder Burner will Clear blockage not light Control knob is not in ON position Turn control knob to ON Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than Use a full cylinder is low 40°F and tank is less than 1/4 full...
- Page 13 1 YEAR LIMITED WARRANTY – Customers in the Conti All components are warranted for a period of 1 year after date of purchase by the original owner against defects in materials and workmanship under normal use. This warranty does NOT cover normal wear and weathering, assembly and/or maintenance OR use in a commercial application if model is not designated as a commercial model.
