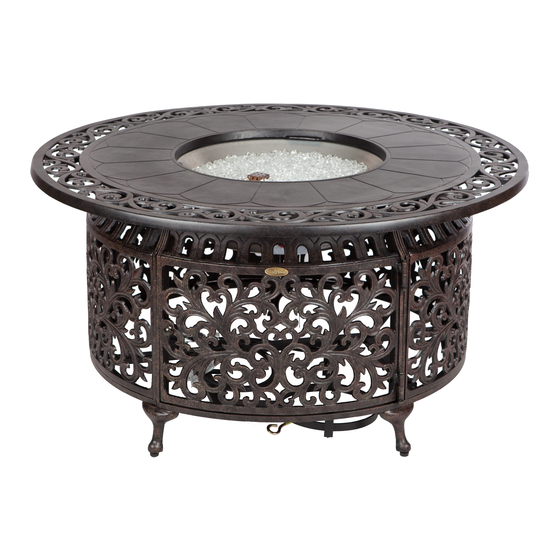

Sedona Aluminum Round LPG Fire Pit
TT
H YOUR
RE EIPT HERE
Keep a copy of your proof of
purchase or order confirmation
which will be needed if you contact
us about warranty coverage.
Purchase Date:
Questions, problems, missing parts?
efore returning to your retailer, our exceptional customer service is available.
all toll-free (866) 985-7877 9 a.m. – 9 p.m., EST.
Email us
Live chat
cservice@welltraveled.net
www.wtliving.com. 9 a.m. – 4 p.m., EST.
Item#: 61168
W RNING
FOR YOUR S FETY
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions
could result in fi e or explosion, which
could cause property damage, personal
injury, or death.
W RNING
For Outdoor Use Only
W RNING
This product can expose you to chemicals including
arbon Monoxide, Lead, hromium (hexavalent
compounds), Di(2-ethylhexyl) phthalate (DEHP) and
Diisononyl phthalate (DINP), which are known to the
State of alifornia to cause cancer and birth defects
or other reproductive harm. For more information,
go to www.P65Warnings.ca.gov.
09232019
