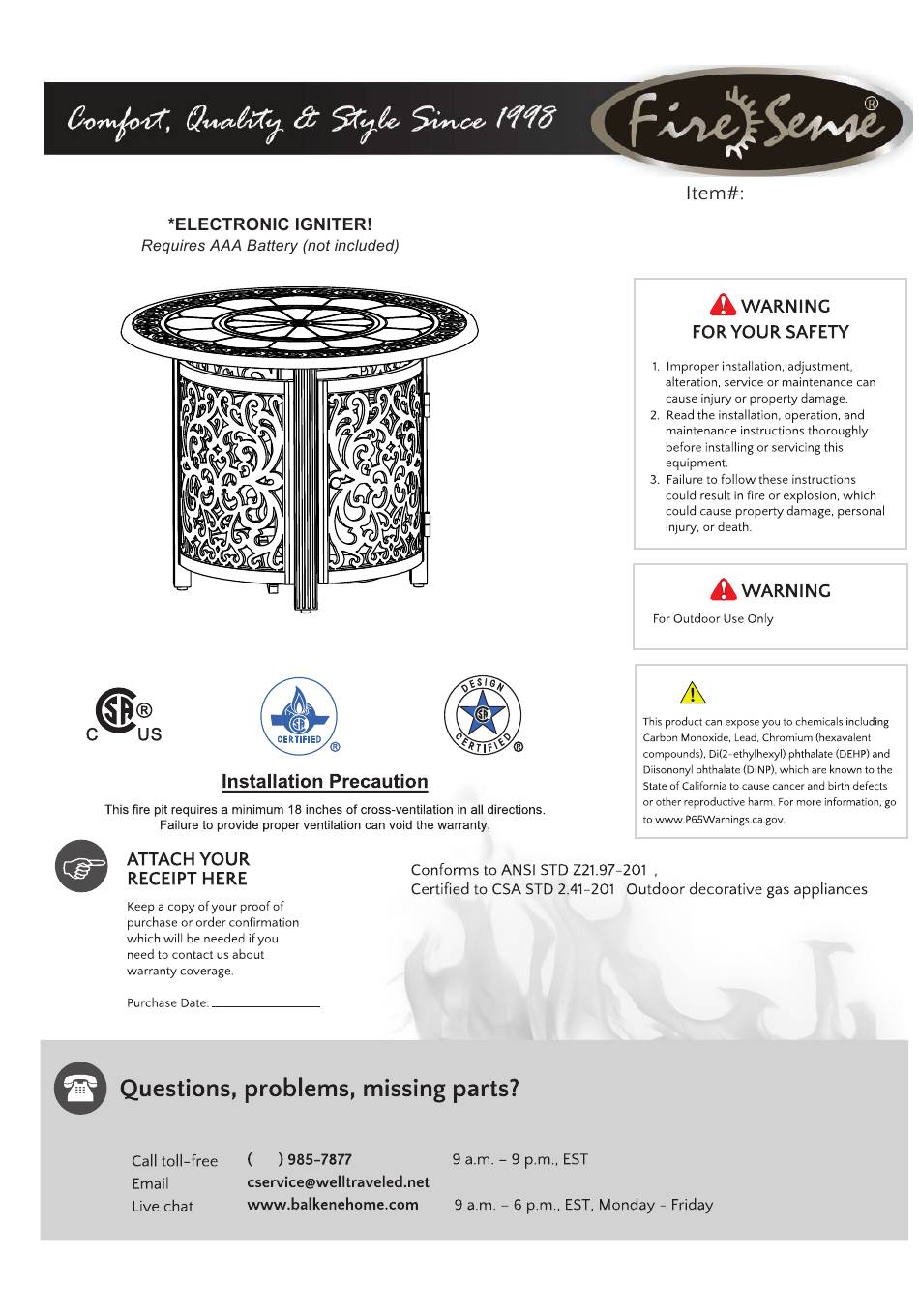

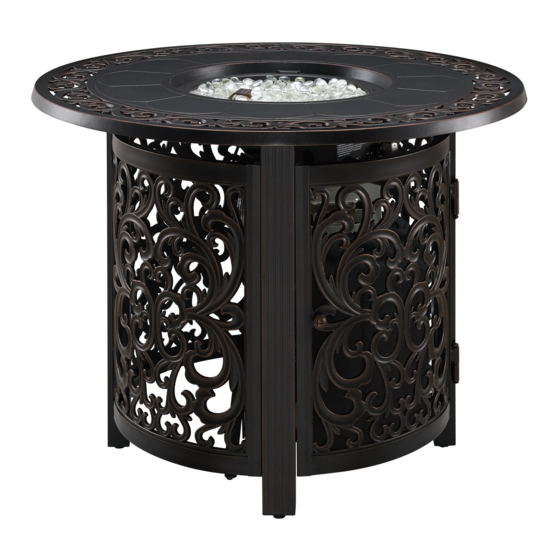

- Page 1 Jackson Round Aluminum LPG Fire Pit 63689 WARNING Before returning to your retailer, our Florida-based customer service team is available to help: 10112021...
- Page 3 Stud (8x30mm) Washer/Spring Stud (6x40mm) Bolt (6x16mm) Washer (M6) Spring Washer (M6) Washer/Nut (8mm) Qty: 5 Qty: 13 Qty: 4 Qty: 16 Qty: 13 Qty: 5 (4 for assy. +1 extra) (12 for assy. +1 extra) (3 for assy. +1 extra) (15 for assy.
- Page 5 Assemble the fire pit base: Locate Door Panel D, 3 Side Panels E, Door Frame Leg F, and 2 Support Legs G. Panel Screw Studs O into the holes in the sides of all four Legs, including the leg pre-assembled to the door. Beginning with Door Frame Leg F join the Legs and Panels Spring together by fitting the holes on the sides of the Side Panels onto...
- Page 6 Once all panels are bolted together,turn the table base upside-down,then attach Tank Support Bar to Leg F/G by aligning the holes at each end of Tank Support Bar with the holes at the bottom of each Leg. Insert Bolt P through Washer Q then into holes.Tighten gently with Hex Wrench W.
- Page 7 Burner Control (controls should face door, rotated toward left side of opening.) Tank Access Door Fire Glass Burner Removable Burner Cover Burner.
- Page 8 Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20lb propane cylinder have this book. Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children.
- Page 10 is at hose/...
-
Page 11: For Your Safety
FOR YOUR SAFETY... - Page 12 NOTE: If burner fails to remain lit, close all valves and wait at least 5 minutes before attempting to light. Figure A Figure B Figure...
- Page 16 Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal. Frequently check for corroded areas and repair them promptly. Caution: before attempting service.
- Page 18 an additional year...
