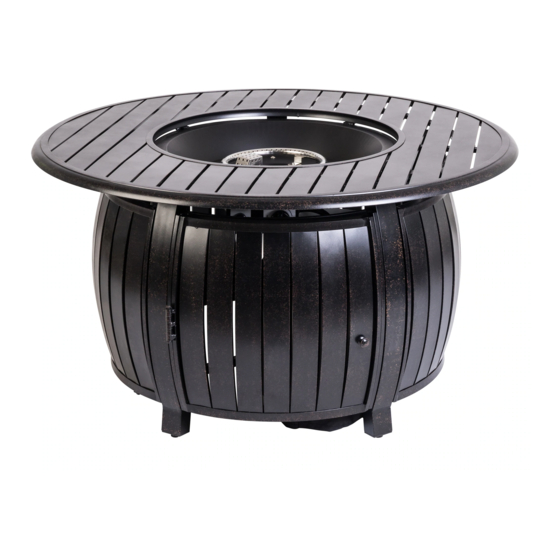

Grand Cooper Round Aluminum LPG Fire Pit
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
purchase or order confirmation
which will be needed if you
need to contact us about
warranty coverage.
Purchase Date:
Questions, problems, missing parts?
Before returning to your retailer, our exceptional customer service is available.
Call us toll-free at (866) 985-7877, email us at cservice@welltraveled.net, or go online and
live chat at www.wtliving.com. Our hours are: 9 a.m. – 6 p.m., EST, Monday – Friday.
Item#: 61832
WARNING
FOR YOUR SAFETY
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions
could result in fire or explosion, which
could cause property damage, personal
injury, or death.
WARNING
For Outdoor Use Only
WARNING
This product can expose you to chemicals
including carbon monoxide which is known to the
State of California to cause birth defects or other
reproductive harm. For more information go to
www.P65Warnings.ca.gov.
WARNING
This product can expose you to chemicals
including Di(2-ethylhexyl)phthalate (DEHP) which
is known to the State of California to cause cancer
and reproductive harm. For more information go
to www.P65Warnings.ca.gov.
Manual updated June 2018
Advertisement
Table of Contents
Related Manuals for Fire Sense 61832
Summary of Contents for Fire Sense 61832
- Page 1 Comfort, Quality & Style Since 1998 Grand Cooper Round Aluminum LPG Fire Pit Item#: 61832 WARNING FOR YOUR SAFETY 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
-
Page 2: Table Of Contents
www.wtliving.com TABLE OF CONTENTS Table of Contents Page 2 Before You Begin Page 2 Package Contents Page 3 Safety Information Page 4 Assembly Page 5-7 Operating Instructions Pages 8-11 Conversion to Natural Gas Pages 12-14 Care and Maintenance Page 15 Troubleshooting Page 16 Warranty Information... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Removable Burner Cover Burner Table Top Side Panel 1 Side Panel 2 Side Panel 3 Door Hole Tank Support Bar Tank Support Ring LPG Tank Cover Protective Table Cover Fire Glass Hole NOTE: Distinguish between Side Panels D/E/F by looking at the bottom edges of each panel. -
Page 4: Safety Information
SAFETY INFORMATION SAFETY INFORMATION DANGER DANGER This appliance has been tested to and FOR YOUR SAFETY EXPLOSION—FIRE HAZARD complies with the ANSI Z 21.97-2010, Outdoor • Keep solid combustibles, such as If you smell gas: building materials, paper, or cardboard Decorative Gas Appliances CGA CR 97-003 1. -
Page 5: Assembly
ASSEMBLY PREPARATION Before beginning assembly, be sure to empty contents of carton and make sure all parts are present. If any parts are missing, please contact Customer Service at (866)-985-7877, Monday-Friday, 9 a.m. - 6 p.m. EST, or email cservice@welltraveled.net. Place all parts on a soft, level surface for assembly. - Page 6 ASSEMBLY With assistance, carefully turn the assembled base back upright, then center Table Top C on the base, aligning holes on underside of Table Top with holes on the top of Legs. Place a Spring Washer/Washer O onto each of 5 Bolts N and insert into each hole.
- Page 7 ASSEMBLY Connect hose and regulator to cylinder. The propane gas and cylinder are sold separately. Use a standard 20lb propane cylinder only. Use this fire pit only with a propane vapor withdrawal supply system. See chapter 5 of the standard storage and handling of liquefied petroleum gas, ANS/NFPA 58.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications or LP gas cylinders of the U.S. - Page 9 OPERATING INSTRUCTIONS lEAK CHECK WARNING! • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the fire pit until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder Connection...
- Page 10 OPERATING INSTRUCTIONS CAUTION WARNING DANGER! Do not attempt to operate until you FOR OUTDOOR USE ONLY have read and understand all General Very hot while in operation! Never lean over the fire pit while in use. Safety Information in this manual and CARBON MONOXIDE HAZARD Do not touch Table Top or burner all assembly is complete and leak...
- Page 11 OPERATING INSTRUCTIONS OPERATION CHECKLIST: WARNING For a safe and pleasant heating experience, perform this check before each use: Very hot while in operation! Never lean over the fire pit while in use. BEFORE OPERATING: Do not touch the Burner Assembly while the fire pit is in operation.
-
Page 12: Conversion To Natural Gas Pages
CONVERSION TO NATURAl GAS WARNING Make sure all control knobs and cylinder valves are in OFF position before converting. This appliance is portable and configured for use with Liquid Propane (LP) Gas, which is delivered via removable tanks (LP tanks and their use are covered elsewhere in this manual). If a Natural Gas connection is available, the user may wish to change the gas delivery system to the more permanent Natural Gas Supply. - Page 13 CONVERSION TO NATURAl GAS CONVERSION TO NATURAL GAS WARNING! To avoid the possibility of burns conversion should only be done when the fire pit WARNING! To avoid the possibility of burns conversion should only be done when the fire pit is completely cool.
-
Page 14: Conversion To Natural Gas
CONVERSION TO NATURAl GAS Natural Gas Hook-Up The gas appliance is designed to operate at an inlet pressure of 7 inches water column. The piping up to the appliance is the responsibility of the installer. Connect the inlet valve to rigid pipe, copper tube or an approved flexible metal connector, which complies with Z21.4/CSA 6.10. -
Page 15: Care And Maintenance
CARE & MAINTENANCE STORAGE To enjoy years of outstanding performance from your fire pit, make sure (Between uses): you perform the following maintenance activities on a regular basis: • Turn control knob OFF. • Disconnect LP source. 1. Use warm soapy water for cleaning. Never use flammable or corrosive •... -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Wait until the propane cylinder warms up and becomes Propane cylinder is frosted over unfrosted Burner will not light Clear blockage Blockage in orifice Control knob is not in ON position Turn control knob to ON Gas pressure is low Turn cylinder valve OFF and replace cylinder Outdoor temperature is less than...
