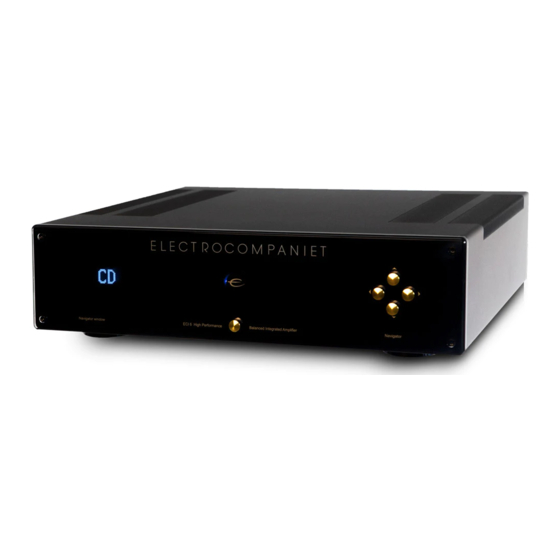

ELECTROCOMPANIET ECI 6D Owner's Manual

Balanced integrated amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

ECI 6D
Balanced Integrated Amplifi er
(with a built-in DAC)
Owner's Manual
EN
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECI 6D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELECTROCOMPANIET ECI 6D

Summary of Contents for ELECTROCOMPANIET ECI 6D

  • Page 1 ECI 6D Balanced Integrated Amplifi er (with a built-in DAC) Owner's Manual ENGLISH...
  • Page 2 • 2 pcs. Batteries Set up procedure Before connecting the ECI 6D to the AC Power outlet, check that the main voltage indicated on the rear panel corresponds to the line voltage in the country were you intend to use the unit.

  • Page 3: Preamp Out

    RCA shorting plug. HT (Home Theatre) HT is a direct input where the volume control is bypassed. ECI 6D will work like a power amplifier with fixed gain. When selected the output will be muted for a few seconds as a safety against accidental overload.

  • Page 4: Spdif Inputs

    CD-player (or other equipment with 12V trigger input) when ECI 6D is powered up. When ECI 6D powers up the 12V trigger output will be set to 12V and will support up to 75 mA current output. Please keep the cur- rent draw below 75 mA by limiting the number of devices connected to the 12V trigger output.

  • Page 5: Navigator Window

    When the ECI 6D is not to be used for a long period of time, use the main switch to turn the unit off. Then disconnect the AC main cord for maximum safety.

  • Page 6: Error Codes

    Error codes If the ECI 6D is not working properly, the display will show an error code. The error codes are: Display Error Description What to do text DC FAULT LEFT DC voltage left channel Please contact service center. DC FAULT...

  • Page 7: Input Configurations

    Speaker: Red = positive Black or White = ground ECP5XLR: RCA to XLR adapter: 1 & 3; ground and negative = shorted 2 = positive Updating the ECI 6D firmware Please download the update instruction from our website at: "Downloads - Firmware" area.

  • Page 8: Preamplifier Section

    Technical specifications ECI 6D: The following technical data were measured on randomized test objects and are typical data. All measurements are made at 120V / 240V // 50Hz / 60Hz. Clipping point of the amplifier is set to a level where total harmonic distortion (THD) is 0.2 %.
  • Page 9 ECI 6D Front panel illustration...
  • Page 10 ECI 6D Rear panel illustration...
  • Page 11 How to connect the system (Analog Inputs)
  • Page 12 How to connect the system (Digital Inputs)

  • Page 13: Remote Control

    Remote control 1. Mute - on/off. Standby mode - hold mute1-2 sec. to set the ECI 6D into a standby mode. 2. CD - switch to CD input 3. COAX1 - switch to COAX 1 input. 4. TosLink1 - switch to Toslink1 input.

  • Page 14: Important Notice

    For optimal sonic performance, the ECI 6D should be burned in for a minimum time of 72 hours. The easiest way to burn in your ECI 6D is to put a signal at any input, without the speakers connected In daily operation, switch off the ECI 6D by using the MUTE button on the remote control.
  • Page 15 Verify line voltage before use. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personal. The warranty is void if the product is tampered with by non-authorised personnel. Use only authorized Electrocompaniet service center. Made in Norway www.electrocompaniet.no...
