Stanley SC50T Safety Instructions

Stanley SC50T Safety Instructions

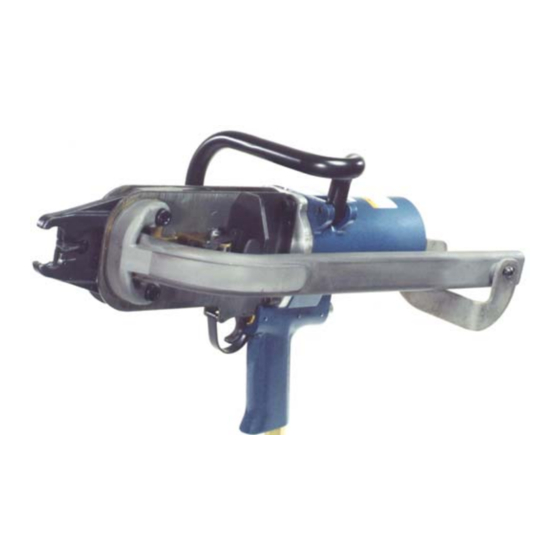

Pneumatic c-ring tool

Advertisement

Quick Links

WARNINGS
• Always read tool manual before operating.
• Always wear safety glasses while operating or
while in the vicinity of a tool in operation.
• For testing, always cycle tool away from work
to insure proper ring closure.
reasons, an improperly functioning tool must
not be used. When operating tool, never point
or actuate tool other than into work.
• Operate tool in an unobstructed work area.
• Disconnect air supply prior to servicing,
maintenance/repairs and when tool is not in use.
• Use clean dry air to maximize efficiency. Do
Not Exceed 105 P.S.I. (7.2 bars)
• Do not use bottled gases such as oxygen,
hydrogen, carbon dioxide, acetylene, etc.
• Tools shall be operated with a fitting or hose
coupling on or near the tool in such a manner
that all compressed air in the tool is discharged
at the time the fitting or hose coupling is
disconnected.
Use ¼-18 NPT or equivalent
fitting when connecting to the tool.
WARNING:
The employer and/or user must ensure that proper eye
protection is worn. Eye protection equipment must
conform to the requirements of the American National
Standard Institute, ANSI Z87.1-1989 and provide
frontal and side protection. Eye protection shall be
worn by the operator and others in the work area when
loading, operating, or servicing this tool.
protection is required to guard against possible flying
particles and/or debris, which could cause severe eye
injury.
NOTE: Non-side shielded prescription glasses and
faceshields alone do not provide adequate protection.
For safety
Always handle tool with care:
Never engage in horseplay.
Never pull the trigger unless nose of tool is
directed toward the work.
Keep others at a safe distance from the tool while
the tool is in operation as actuation occurs,
possibly causing injury. Keep hands and body
away from the jaw mechanism of the tool.
LOADING TOOL
When loading tool:
Never place a hand or any part of body in jaw
mechanism area of tool.
Never point tool at anyone.
Never actuate tool when loading, accidental injury
may occur.
AIR CONSUMPTION
SC50T Tool require 10.4 cubic feet per minute (.293
cubic meters per minute) of free air to operate at a rate
of 100 cycles per minute, at 100 P.S.I. (6.9 bars).

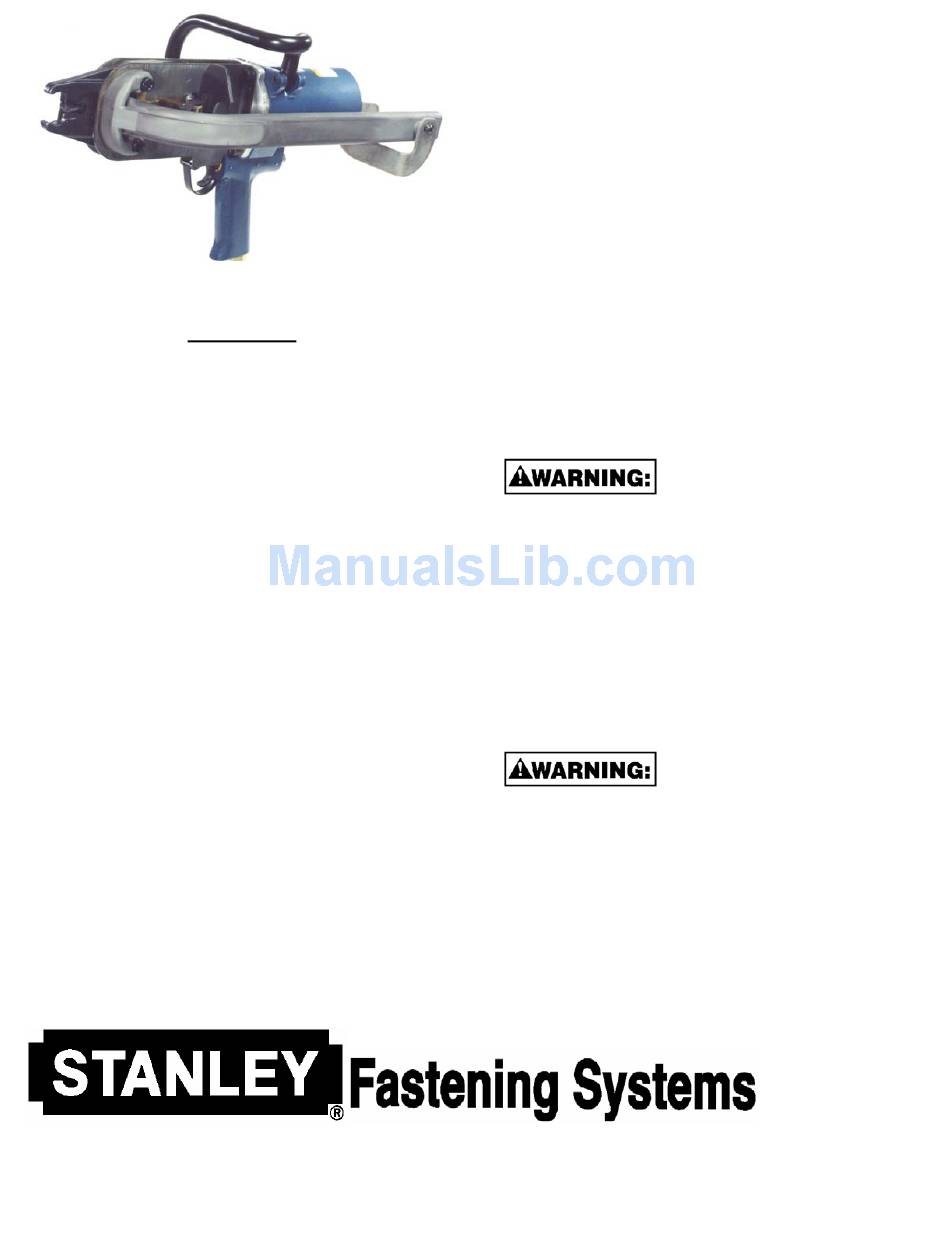

1 of 6
PNEUMATIC C-RING TOOL
SC50T

SAFETY INSTRUCTIONS

OPERATION
Eye
01/03
