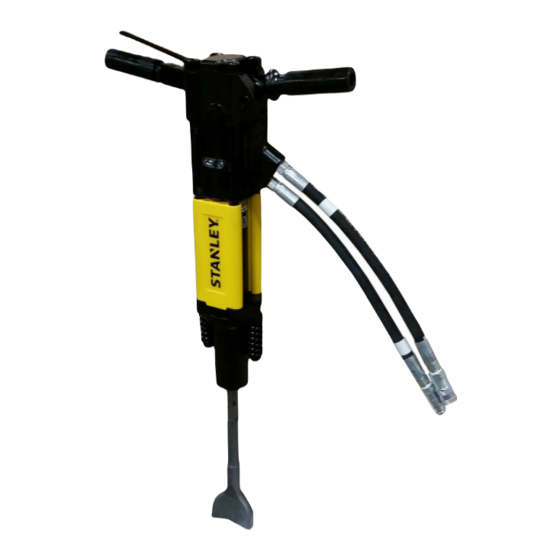

Hydraulic tie tamper
Hide thumbs Also See for TT46:

Advertisement

TT46
HYDRAULIC
TIE TAMPER
USER MANUAL
Safety, Operation and Maintenance
© 2014 Stanley Black & Decker, Inc.
New Britain, CT 06053
U.S.A.
60685 8/2017 Ver. 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT46 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stanley TT46

  • Page 1 TT46 HYDRAULIC TIE TAMPER USER MANUAL Safety, Operation and Maintenance © 2014 Stanley Black & Decker, Inc. New Britain, CT 06053 U.S.A. 60685 8/2017 Ver. 14...
  • Page 2 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA...
  • Page 3: Table Of Contents

    REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call Stanley Hydraulic Tools at (503) 659-5660 and ask for a Customer Service Representative. TT46 User Manual ◄ 3...
  • Page 4: Safety Symbols

    Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel. 4 ► TT46 User Manual...
  • Page 5: Safety Precautions

    Place the added precautions in the space provided on page 4. • Release the trigger if the power supply has been interrupted. TT46 Tie Tamper will provide safe and dependable service if • When working near electrical conductors, always assume that operated in accordance with the instructions given in this manual.
  • Page 6: Tool Stickers & Tags

    OPERATION MANUAL. OPERATION MANUAL. TAG TO BE REMOVED ONLY BY TAG TO BE REMOVED ONLY BY TOOL OPERATOR. TOOL OPERATOR. SEE OTHER SIDE SEE OTHER SIDE SAFETY TAG P/N 15875 (Shown smaller then actual size) 6 ► TT46 User Manual...
  • Page 7: Hose Types

    HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic Tools. DO NOT REMOVE THESE TAGS.
  • Page 8: Hose Recommendations

    HOSE RECOMMENDATIONS 8 ► TT46 User Manual...
  • Page 9: Htma / Ehtma Requirements

    (103 bar) (103 bar) (103 bar) System relief valve setting 2495 psi 2000 psi 2000 psi 2000 psi 2000 psi (at the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) NOTE: TT46 User Manual ◄ 9...
  • Page 10: Operation

    Damage to the hydraulic system or tie tamper can result from use with oil that is too viscous or thick. CONNECT HOSES 10 ► TT46 User Manual...
  • Page 11: Tool Protection & Care

    RETURN hose (with female quick disconnect) is connected to the opposite port. Do not reverse circuit flow. This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar. •...
  • Page 12: Troubleshooting

    Low GPM supply from power unit. Check power source for proper flow and pressure, 4-6 GPM/14-23 LPM, 1500-2000 psi/106-140 bar. TT46233 Model, 7-10 GPM/26-38 LPM. High back-pressure. Check hydraulic system for excessive back-pressure (over 200 psi/14 bar). 12 ► TT46 User Manual...
  • Page 13: Charging The Accumulator

    1. On charge valves containing 5/8 inch hex locking nuts, first loosen the locking nut 1-1/2 turns. 2. Holding the chuck end of the Stanley tester (Part Number 02835), turn the gauge fully counterclockwise to ensure the stem inside the chuck is completely retracted.
  • Page 14 Hose, Charge Fitting, 02835 Tester, and Box (not pictured) Hose Gauge 02835 TESTER Chuck Charging the Accumulator ( 45 with T-Handles) TESTER CHARGING VALVE CHUCK GAUGE ACCUMULATOR TESTER ( P/N 02835 ) LOCATION OF CHARGING VALVE Figure 2 14 ► TT46 User Manual...
  • Page 15: Specifications

    Overall Width (Anti-Vibr. models) ....................14/17 inches / 35.6/44 cm SOUND POWER AND VIBRATION DECLARATION Test conducted on BR4056801 (same as TT46),operated at standard 5 GPM input Measured A-weighted sound power level, Lwa (ref. 1pW) in decibels ............106 dBA Uncertainty, Kwa, in decibels ..........................3 dBA Guaranteed sound power level........................
  • Page 16: Tt46113/133/233 Parts Illustration

    TT46113/133/233 PARTS ILLUSTRATION TT46113/TT46113C Use Lower End Assy Shown Below. Illustration Covers Models: TT46113 TT46113C TT46133 TT46133B TT46133C TT46133 UP TT46233 TT46233B 16 ► TT46 User Manual...
  • Page 17: Tt46113/133/233 Parts List

    & TT46233B Only) 74679 Name Tag (5-GPM Models) Tie Tamper Update Kit: Part No. 33038. Includes Items 42- 43, 46-47, 49-55 74680 Name Tag (10-GPM Models) 04571 Push Pin Coupler Sets: Aeroquip 47438 / Parker 03971 TT46 User Manual ◄ 17...
  • Page 20 Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, Oregon 97267-5698 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyhydraulics.com...
