Stanley SK47 User Manual

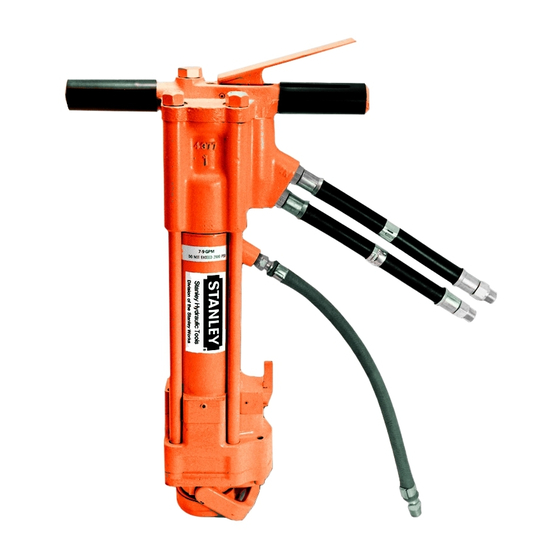

Hydraulic sinker drill
Hide thumbs
Also See for SK47:
- Safety, operation & maintenance manual (21 pages) ,
- User manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Stanley SK47
Summary of Contents for Stanley SK47

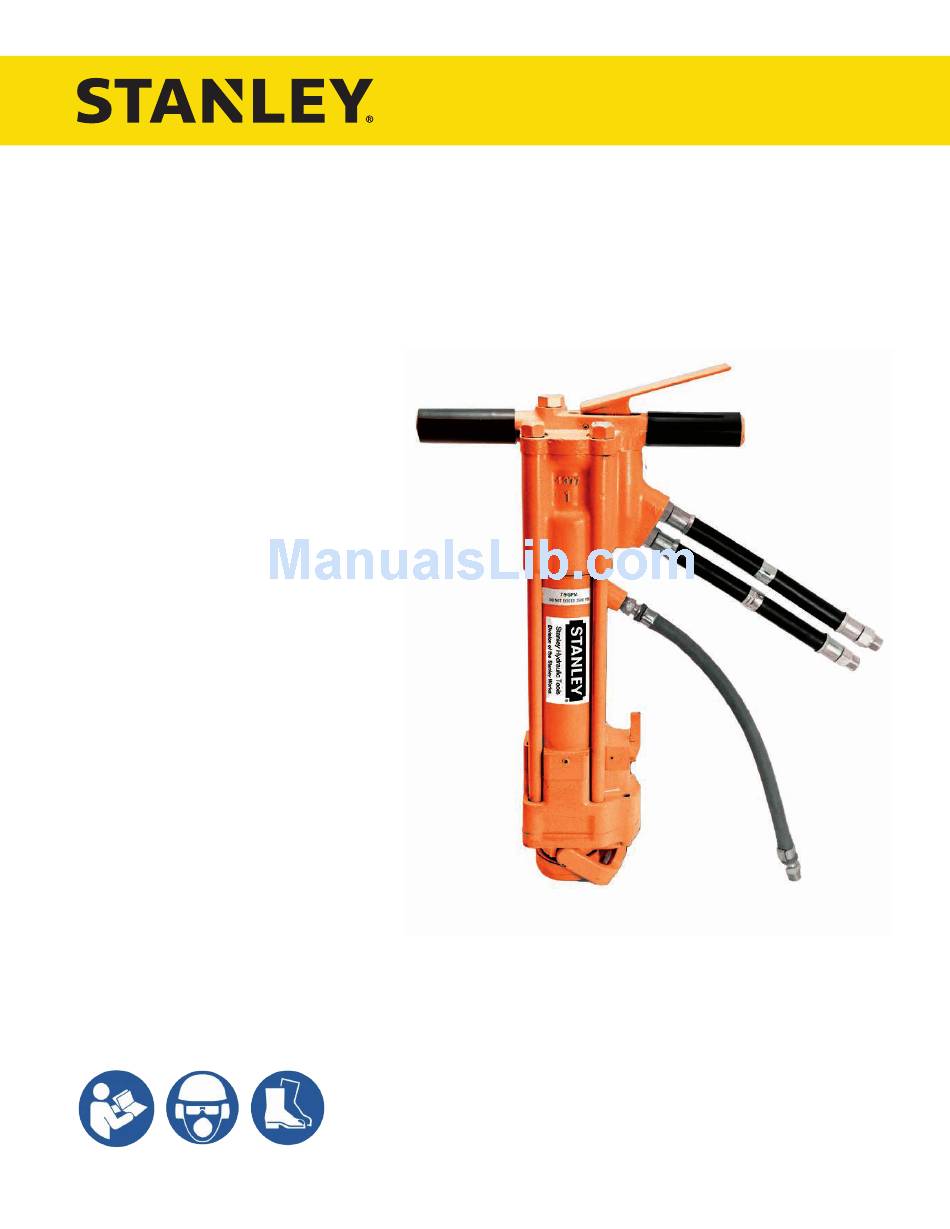

- Page 1 SK47 HYDRAULIC SINKER DRILL USER MANUAL Safety, Operation and Maintenance © 2014 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 10323 2/2018 Ver. 9...
-
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. SK47 User Manual ◄ 3... -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel. 4 ► SK47 User Manual... -
Page 5: Safety Precautions
Do not exceed the rated limits of the tool or use the performing general maintenance or repairs. tool for applications beyond its design capacity. The SK47 Hydraulic Sinker Drill will provide safe and • Always keep critical tool markings, such as labels dependable service if operated in accordance with the and warning stickers, legible. -
Page 6: Tool Stickers & Tags
OPERATION MANUAL. OPERATION MANUAL. TAG TO BE REMOVED ONLY BY TAG TO BE REMOVED ONLY BY TOOL OPERATOR. TOOL OPERATOR. SEE OTHER SIDE SEE OTHER SIDE SAFETY TAG P/N 15875 (Shown smaller then actual size) 6 ► SK47 User Manual... -
Page 7: Hose Types
This hose is not certifi ed non-conductive and must never be used near electrical conductors. HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HOSE RECOMMENDATIONS 8 ► SK47 User Manual... -
Page 9: Htma / Ehtma Requirements
2000 psi 2000 psi (At the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) NOTE: These are general hydraulic system requirements. See tool specifi cation page for tool specifi c requirements. SK47 User Manual ◄ 9... -
Page 10: Operation
If the rock bit is not rotating 10 ► SK47 User Manual... - Page 11 FLUSHING REQUIREMENTS • The SK47 is designed for air flushing only. • The minimum of CFM/7 liters per second at 75 psi/5 bar of compressed air should be used for flushing the chips out of the drilled hole.
-
Page 12: Tool Protection & Care
• Always replace hoses, couplings and other parts are installed in the pressure side of the system. with replacement parts recommended by STANLEY. • Do not use the tool for applications for which it was Supply hoses must have a minimum working not intended. -
Page 13: Charging The Accumulator
3. Adjust the regulator to the charging pressure of 600 psi/42 bar. Note: It may be necessary to set the gauge at 650- SK47 User Manual ◄ 13... - Page 14 CHARGING THE ACCUMULATOR Figure 2. Charging the Accumulator 14 ► SK47 User Manual...
-
Page 15: Troubleshooting
Provide cooler to maintain oil temperature operating pressure loss. (under 140 °F). Damage to motor clearances. Repair as required. Insufficient air or water. 15–25 cfm/7–12 liters per second minimum required. Mechanical binding during drilling. Take care to guide drill straight. SK47 User Manual ◄ 15... -
Page 16: Accessories
Accumulator Charge Assembly (includes. Liquid Filled Gauge w/ Valve, Hose, & Charge Fitting) ....15304 Accumulator Tester ............................02835 Flow and Pressure Tester ..........................04182 Accumulator Charge Kit (Includes Tester, Accumulator Charge Assembly and Charge Kit Box) ...... 31254 16 ► SK47 User Manual... -
Page 17: Sk47 Parts Illustration
SK47 PARTS ILLUSTRATION SK47 User Manual ◄ 17... -
Page 18: Sk47 Parts List
08104 O-RING PLUG 30645 MOTOR ASSEMBLY 04934 CUP SEAL 09542 SEAL KIT (INCLUDES ITEMS 11-13, 19, 20, 29, 35, 37-39, 41, 47, 50, 54, 70 & 04780 WASHER 04386 CUP SEAL 02022 O-RING 00473 O-RING 18 ► SK47 User Manual... - Page 20 STANLEY Infrastructure 6430 SE Lake Road Portland, Oregon 97222 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com...
