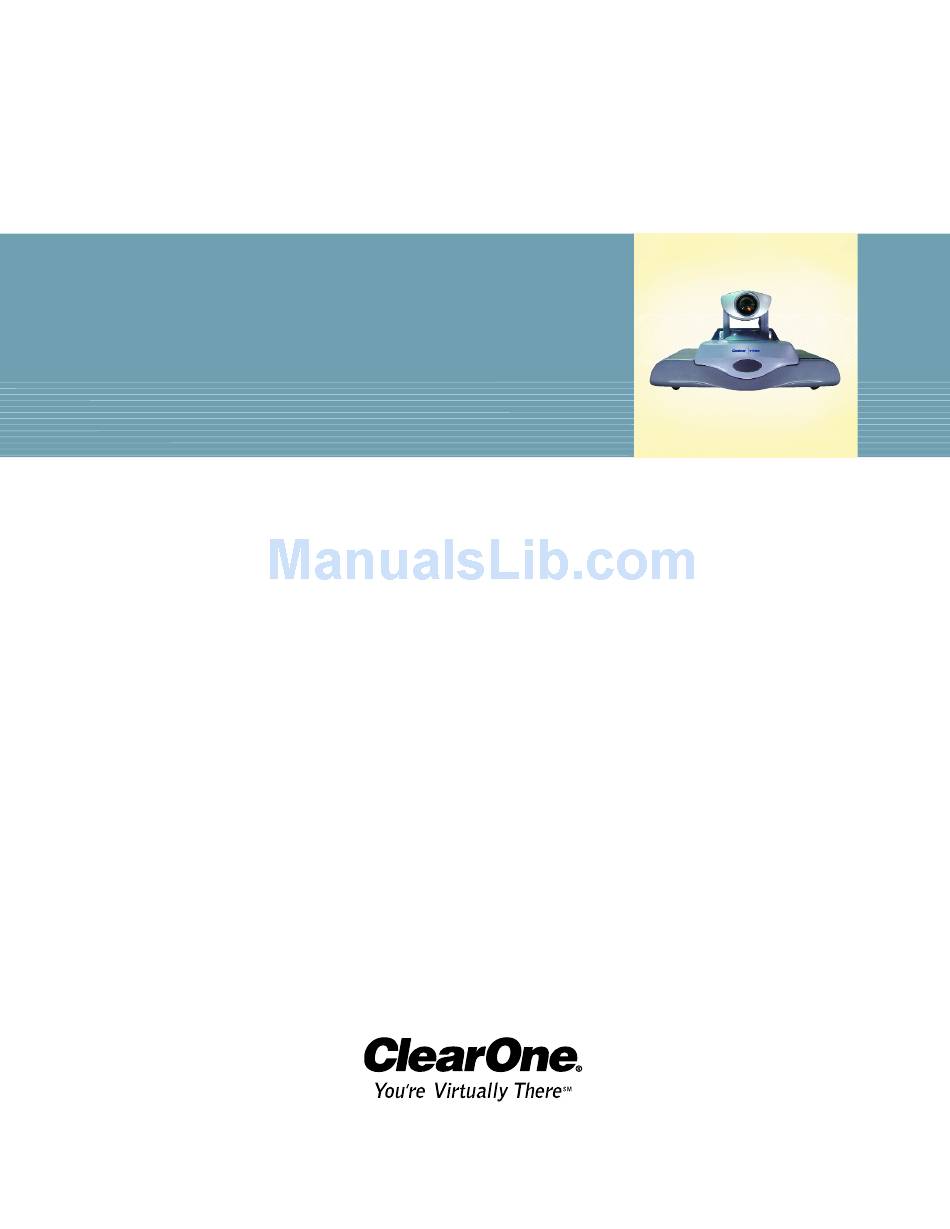

- Page 1 Audio Products V-There™ 2000, 2100, and 2200 Video Conferencing System Installation & Operation Manual...
- Page 2 © 2002 ClearOne Communications, Inc. All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne Communications, Inc. Printed in the United States of America. ClearOne Communications, Inc.
-
Page 3: Table Of Contents
Sales and Customer Service ........2 ClearOne Communications EuMEA ....... . .2 Product registration . - Page 4 To delete a presentation ......... .31 ClearOne Communications ~ www.clearone.com...
- Page 5 Service or option unavailable causes ....... .57 Service or option not implemented causes ......58 ClearOne Communications ~ www.clearone.com...
- Page 6 Index ............73 ClearOne Communications ~ www.clearone.com...
-
Page 7: Chapter 1. Introduction
Features • High-quality audio–data transfer rates to 768kbps for H.323 and 384kbps (2200 model) or 128kbps (2100 model) for H.320 calls (V-There 2000 does not support H.320). • AccuMic II delivers award-winning audio. A second mic can be added for larger venues. -
Page 8: Professional Services Group
ClearOne Technical Services Group at the number below. We welcome your comments so we can continue to improve our products and serve your needs. If you need to return your V-There unit to ClearOne for service, please call the Technical Services Group to obtain a return authorization number. -
Page 9: Using This Manual
Pressing the Enter remote control button confirms the option or icon you have highlighted and executes the required action. For example: Highlight and select the Place a Call button in the interface. The Place a Call screen is displayed. ClearOne Communications ~ www.clearone.com... - Page 10 ClearOne Communications ~ www.clearone.com...
-
Page 11: Chapter 2. Getting Started
CHAPTER 2: Getting Started Unpacking When you unpack the V-There box contents, you should have the items below. If any item is missing, please contact your supplier. Figure 2.1 Items included with V-There ClearOne Communications ~ www.clearone.com... -
Page 12: North American Users
(or optionally an NT-3, if you are using all three ISDN lines with a V-There 2200). If your ISDN switch supplies a U interface, an external NT-1 terminal adapter must be used. Please contact your ClearOne distributor for information about acquiring an external NT-1 or NT-3. -
Page 13: Hardware Setup
This connector provides power and PTZ capabilities for the main camera and connection to the IR receiver. If you want to use your V-There to make or receive calls over your local area network (LAN), connect the gray Ethernet cable to this connector. ClearOne Communications ~ www.clearone.com... - Page 14 If you are using an S-video monitor, attach the S-video cable to this connector. Connect the other end to the monitor. If you want to use an S-video-capable auxiliary camera, connect the camera to this connector. ClearOne Communications ~ www.clearone.com...
-
Page 15: Power Supply
AccuMic II microphone setup The AccuMic II mic pad features three microphone elements positioned to pick up sound in a 360-degree pattern. Each mic element features noise cancellation, automatic gating control, PA adaptive mode, adaptive ambient mode, and ClearOne’s ® ®... - Page 16 Press the button once to mute the mic pad system; press it again to unmute and resume the conference. Optionally, you can connect a second AccuMic II pad to increase the capacity of the video conferencing system (see page 11). ClearOne Communications ~ www.clearone.com...
- Page 17 8-Pin Connector First AccuMic II First AccuMic II 10' (3-meter) Mini-DIN Cable 10' (3-meter) Mini-DIN Cable Figure 2.5 Connecting a second mic pad 8-Pin Connector 8-Pin Connector Extension AccuMic II Extension AccuMic II 8-Pin Connector 8-Pin Connector ClearOne Communications ~ www.clearone.com...
- Page 18 ClearOne Communications ~ www.clearone.com...
-
Page 19: Chapter 3. Controlling V-There
Using the Keyboard section on page 15. When you navigate the screen, a white box indicates your position on the screen. When you have highlighted a field, icon, or drop-down list, press the Enter button to select your choice. ClearOne Communications ~ www.clearone.com... - Page 20 Displays the camera presets. Navigate to the preset you want to use and click Enter. During a call, this key displays the Camera Presets list. Navigate to the preset you want to use and press Enter. Figure 3.1 Remote control ClearOne Communications ~ www.clearone.com...
-
Page 21: Using The Keyboard
Present Opens a dialog box that allows you to select a web page or presentation. Figure 3.4 (B) Conference Control and Help Accesses the online help for assistance. Menu keys Menu Toggles the view between the onscreen menu and camera video. ClearOne Communications ~ www.clearone.com... - Page 22 Disconnects an ISDN or H.323 call control keys Displays the Presentations screen (Express Mode) Captures and sends a snapshot to the far end Displays the Video Source list Allows PIP on the monitor Zooms the camera in Zooms the camera out ClearOne Communications ~ www.clearone.com...
-
Page 23: Chapter 4. Camera
If they are connected, disconnect the two camera cables from the Camera Video and Camera Control +IR rear panel connectors. Remove the screw at the back of the camera housing, as shown in Fig 4.2. Figure 4.2 Remove mounting screw at back of camera housing ClearOne Communications ~ www.clearone.com... -
Page 24: Camera Control
Using the arrow keys, position the camera in the desired location. If you are in a call, refer to the picture-in-picture as you position the camera. Use the Zoom + and Zoom - keys to adjust the video magnification. ClearOne Communications ~ www.clearone.com... -
Page 25: To Manually Control The Far-End Camera
Mode button on the keyboard until the Expert Mode menu is displayed (the Expert System Setup button will be highlighted). Click the Expert System Setup button, then the Adjust Video Settings button. Select the Presets tab. ClearOne Communications ~ www.clearone.com... -
Page 26: To Name A Camera Preset
Press either the * button on the remote control or the Preset key on the keyboard. This opens the Camera Preset dialog box. Using the up and down keys, navigate to the preset you want to use and press Enter. The camera moves to the selected preset. ClearOne Communications ~ www.clearone.com... -
Page 27: Chapter 5. Configuration
• When you turn on your V-There for the first time • After a software upgrade • After resetting the V-There to factory defaults • To add or edit phone directory entries or presentations ClearOne Communications ~ www.clearone.com... -
Page 28: Lan Setup
V-There will switch duplex settings and re-check the packet loss. If the new duplex setting reduces packet loss, the new setting is retained. Under normal circumstances, the second power up on the same hub results in minimal packet loss. ClearOne Communications ~ www.clearone.com... -
Page 29: Required Information
Click the Adjust Communications Settings button. This opens the Communications Settings window, with the Network screen displayed. The Network section is where you establish the network settings your unit will use. Figure 5.2 Network screen #1 ClearOne Communications ~ www.clearone.com... -
Page 30: To Configure Lan (Non-Dhcp)
Enter the LAN name in the field provided. Press Enter to confirm changes. Click the More button to open the second Network screen. 10. Enter the network user logon name in the Logon User ID field. Figure 5.3 Network screen #2 ClearOne Communications ~ www.clearone.com... -
Page 31: Gatekeeper (H.323) Setup
Explicit (you enter the IP address of the If using a gatekeeper, both gatekeeper). E164 Alias If you selected the Gatekeeper Mode of Explicit, enter the IP address of the (H.323) IDs must be gatekeeper in the Address field. entered. ClearOne Communications ~ www.clearone.com... -
Page 32: Isdn Setup
If you do not use a gateway, these fields can remain blank. ISDN Setup Required information The V-There 2000 does not Before you begin the ISDN setup, it is recommended that you connect your V-There unit to your ISDN connection using the supplied ISDN cable(s). The number of support ISDN operation. -
Page 33: Isdn Settings
ISDN numbers in the previous screen, you can click Auto Fill to enter the SPIDs manually in the have them automatically transferred to the SPIDs number boxes. You will SPID fields. need to reboot the unit to save these changes. ClearOne Communications ~ www.clearone.com... -
Page 34: Phone Directory
Navigate to the Place a Call button in the Expert Mode toolbar and click it. This opens the Directory screen. Figure 5.7 Directory screen This screen allows you to place calls, add entries to the directory, edit entries, and delete them. ClearOne Communications ~ www.clearone.com... -
Page 35: To Place A Call
Use the right arrow button on the remote control to access the buttons on the right side of the window, then navigate to and click the Call button. Click Delete. A window will appear, asking you to confirm deletion of the entry. ClearOne Communications ~ www.clearone.com... -
Page 36: Presentation Settings
Click the Edit button in the Presentations screen. This opens a dialog box where you can change the web page address or file location. After you make changes, click Save to save the changes and return to the Presentations screen. ClearOne Communications ~ www.clearone.com... -
Page 37: To Delete A Presentation
Select Mute on Answer if you want the unit to mute your outgoing audio whenever a call is answered. You would then use the Mute button to unmute the system when you are ready to speak. Default is Off. ClearOne Communications ~ www.clearone.com... -
Page 38: To Set Compression
ISDN or LAN call. The default setting for both fields is Auto Select. ClearOne recommends that you do not change these settings because Auto Select enables the unit to detect automatically which compression algorithm is most suitable for a particular call type. -
Page 39: To Adjust Gain
If you are using the AccuMic II included with your V-there, ClearOne recommends that you do not change this value, since higher values make the V-There more sensitive to audio input and might adversely affect echo cancellation. -
Page 40: Adjust Video Preferences
Leave these at the factory settings unless you need to tailor them to suit your venue. Click the More button to view the following settings in Preferences screen Figure 5.13 Video Preferences screen #2 ClearOne Communications ~ www.clearone.com... - Page 41 If you do not have this feature selected, you can press the Snapshot button on the remote control or keyboard to display incoming images (you will be notified by an onscreen message that an image has arrived). ClearOne Communications ~ www.clearone.com...
- Page 42 Swap Display, you can display local video full-screen, allowing you to toggle between remote and local site video. Names for Video Sources Assign names for the local camera, composite camera, S-video camera, and VGA input in these fields. ClearOne Communications ~ www.clearone.com...
-
Page 43: Pip
Various Advanced Settings The Adjust Various Advanced Settings screen allows you to adjust the date and time, as well as do diagnostic calls and download new firmware. Refer to the following information to adjust these settings. ClearOne Communications ~ www.clearone.com... -
Page 44: Setting Advanced Preferences
Enable Power Save Mode if you want the unit to go into sleep mode when not in use. After selecting this check box, use the Power key to activate and deactivate this mode. ClearOne Communications ~ www.clearone.com... -
Page 45: Troubleshooting
Select the Type and Rate of the call from their respective drop-down lists. recognize a loop back call. Click Call. The unit initiates the loop-back call. Press Hang-Up to end the call. If there are problems with any settings during the call attempt, you will be notified. ClearOne Communications ~ www.clearone.com... -
Page 46: Download
When a new version of the firmware is released, obtain the URL for the location from your reseller or from ClearOne. Enter the URL in the Download LAN Address field. It is not necessary to enter the http:// prefix. - Page 47 There are two possible procedures for updating the firmware: Updating from a web site or from a flash card. To upgrade unit firmware from a web site Enter the URL in the Download LAN Address field. ClearOne Communications ~ www.clearone.com...
- Page 48 A series of message boxes is displayed, informing you of the progress of the download. Do not turn off your unit while downloading to a flash card. When the download is complete and you exit the menu, you are asked if you want to reboot the unit (answer yes). ClearOne Communications ~ www.clearone.com...
-
Page 49: Chapter 6. Making Calls
Navigate to the number you want to dial, then press the Enter button. letter of the name to jump to that (Establishing phone numbers in the Directory is accomplished in the Place a section of the directory. Call/Phone Directory section of Expert Mode; see page 28.) ClearOne Communications ~ www.clearone.com... - Page 50 To end the call, press the Hang-Up button on the remote control. To redial a call, press the Dial button again. The details of the last call are displayed by default. ClearOne Communications ~ www.clearone.com...
-
Page 51: Dtmf Tones
To terminate a call, press the Hang-Up button. The call might not terminate immediately. It might take several seconds to terminate a call. However, during this time, the audio will be muted and the video image will be frozen. ClearOne Communications ~ www.clearone.com... - Page 52 ClearOne Communications ~ www.clearone.com...
-
Page 53: Chapter 7. Sending Data And Images
Remove the cover by hand. cards. Insert the flash card horizontally in the direction the arrow on the card indicates. There are two slots; you can use either one when using just one card. Reinstall the card cover. ClearOne Communications ~ www.clearone.com... -
Page 54: Sending And Receiving Images
Annex D image will temporarily replace the video image on the monitor. To return to viewing the video image, press the Snapshot button. The video image of the party you are calling is displayed again and the Annex D image is discarded. ClearOne Communications ~ www.clearone.com... -
Page 55: Presentations
The V-There Application Conversion Wizard is a plug-in that converts Microsoft ® ® Word, PowerPoint , and Excel files into VTT (ClearOne proprietary compression) files, giving you the flexibility to share these files via the V-There Video Conferencing System. This plug-in requires the following minimum system requirements:... - Page 56 Use the Browse button to select the file you want to convert. If you opened the desired presentation when you launched PowerPoint, this file should already be selected. Click Next. The conversion wizard converts the file to VTT format and displays the Save File window (see Figure 7.3). ClearOne Communications ~ www.clearone.com...
-
Page 57: Sending Presentations
Figure 7.4 Successful File Transfer window Click Exit to close the window or click Start Over to convert another file. Sending presentations The V-There allows you to send presentations during conference calls. Presentations must be saved in HTML format. ClearOne Communications ~ www.clearone.com... -
Page 58: About The Web Browser
Select key. Menu bar The toolbar contains four buttons: Forward, Backward, Stop, and Refresh. Each menu contains several menu options. To select a button, point the cursor at the button and press the Select key. ClearOne Communications ~ www.clearone.com... -
Page 59: Appendices
2 years parts and labor H.261 Three microphone elements H.263 ® Full-duplex Gentner Distributed Echo ® Cancellation Picture Resolution Noise Cancellation FCIF, QCIF Automatic microphone gating SQCIF decode V-Meeting and V-Console available as future upgrades. Optional. ClearOne Communications ~ www.clearone.com... -
Page 60: Appendix B: Isdn Error Codes
This means that the call was placed by specifying a routing of networks. The most likely reason is that V-There is attached to a local PABX, which attempts to route calls using a “cheapest” route method, which is currently unavailable. ClearOne Communications ~ www.clearone.com... - Page 61 This means either that the user has deliberately rejected the call (V-There systems do not do this – they return a “normal termination” when a user rejects a call). Or, this occurs when the far end network has rejected the call—for example, when a PABX rejects incoming calls. ClearOne Communications ~ www.clearone.com...
-
Page 62: Resource Unavailable Causes
Cause 34: No circuit/channel available (Cause 34) This usually means that there are not enough lines to connect the call – often seen in H0 calls when the last line cannot be dialed. Remedy is to try again later. ClearOne Communications ~ www.clearone.com... -
Page 63: Service Or Option Unavailable Causes
This would occur when the call is being routed through a non-ISDN link, which is experiencing problems. Try again later. Cause 50: Requested facility not subscribed (Cause 50) Cause 57: Bearer capability not authorized (Cause 57) Cause 58: Bearer capability not presently available (Cause 58) ClearOne Communications ~ www.clearone.com... -
Page 64: Service Or Option Not Implemented Causes
Cause 83: A suspended call exists but not this identifier (Cause 83) Cause 84: Call identity in use (Cause 84) Cause 85: No call suspended (Cause 85) Cause 86: Call with this identity already been cleared (Cause 86) ClearOne Communications ~ www.clearone.com... -
Page 65: Protocol Error Causes
This procedure is required in either of the following circumstances: • A web-based download has failed during the copy to flash, rendering the V-There inoperable. • For some reason the V-There cannot access the Internet via the built-in Ethernet port. ClearOne Communications ~ www.clearone.com... -
Page 66: Appendix D: Compliance Statements And Warranty
~ Compliance Statements and Warranty The following steps need to be performed. Consult the Technical Support section at www.clearone.com for the location of latest release. Download the required file—this contains a single file called nk.bin. Unzip the file to get the nk.bin file. -
Page 67: Fcc Part 68 Requirements
Notice: The Industry Canada identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and equipment safety requirements. Industry Canada does not guarantee the equipment will operate to the user’s satisfaction. ClearOne Communications ~ www.clearone.com... -
Page 68: European Users
Production Quality Assurance (Annex I Annex III). Compliance means that this equipment can be connected to the public telecommunications infrastructure either directly or indirectly. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. ClearOne Communications ~ www.clearone.com... -
Page 69: Australian And New Zealand Users
V-There so as to maintain optimal operation. End user warranty ClearOne Communications, Inc. (Manufacturer) warrants that this product is free of defects in both materials and workmanship. Should any part of this product be defective, the Manufacturer agrees, at its option, to: A. - Page 70 An RMA (return merchandise authorization) number must be issued to the end user from ClearOne technical support. The end user must return the product to ClearOne with proof of purchase (showing purchase date) for a warranty claim, and display the RMA number on the outside of the shipping package.
-
Page 71: Appendix E: Upgrading To V-There 2.0
The V-There must be connected to an IP network capable of accessing the Internet to perform this upgrade. The upgrade takes about 10 minutes to complete. Power on the V-There if it isn’t already on. ClearOne Communications ~ www.clearone.com... - Page 72 Click OK. 10. Press the Menu button on the keyboard. 11. Select Yes when prompted to reboot the unit. 12. After the V-There reboots, the unit will operate with the upgraded software. Installation upgrade is complete. ClearOne Communications ~ www.clearone.com...
-
Page 73: Glossary
In this manual the channels are the wires in the ISDN cables. Com An interface on a computer to which you can connect a device. Composite monitor Television monitor. See also NTSC and PAL. CRC Cyclic redundancy check is a technique for detecting data transmission errors. ClearOne Communications ~ www.clearone.com... - Page 74 It also controls bandwidth usage so the network isn’t overloaded and it provides convenient address translation for the far-end conferencing system in a call. Gateway A gateway is a combination of hardware and software that links two different types of networks together. ClearOne Communications ~ www.clearone.com...
- Page 75 ISDN number A phone number for the ISDN connection. Ask your system administrator for your ISDN number. ISDN-R Integrated services digital network that is limited to 56kbps. It is sometimes used in the USA and in Saudi Arabia. See also ISDN. ClearOne Communications ~ www.clearone.com...
- Page 76 This prevents loudspeaker audio from gating on a microphone, while still allowing people in the room to gate on microphone elements as they speak. ClearOne Communications ~ www.clearone.com...
- Page 77 Directory Number. Subnet mask A filter that selectively includes or excludes certain values. It determines which part of a net the device should consider to be local. ClearOne Communications ~ www.clearone.com...
- Page 78 IP address to a client each time the machine logs on to the network. WINS uses a distributed database that is automatically updated with the names of computers currently available and the IP address assigned to each one. ClearOne Communications ~ www.clearone.com...
-
Page 79: Index
Ethernet 5, 7, 59, 68 Expert Mode 14, 15, 21, 23, 28, 30, 43, 44 Express Mode 15, 16, 43, 44, 52 navigating arrow keys 13 keyboard 13, 15 flash card inserting 47 other devices 7 ClearOne Communications ~ www.clearone.com... - Page 80 47 proxy server 71 QCIF 71 remote control 5 SCART 5, 9, 71 snapshot 14, 16, 35 SPID 71 URL 72 VGA monitor 9, 72 video out 8 web browser 52, 71 WINS 24, 72 ClearOne Communications ~ www.clearone.com...
