- Page 1 VERSA PRO CT Professional AV Solution for Huddle Rooms Quick-Start Guide...
-
Page 2: Table Of Contents
BMA CTH ..............................14 CONNECTING THE BMA CTH TO THE CONVERGE® HUDDLE ..............14 CONFIGURING THE BMA CTH USING THE CONVERGE® HUDDLE ............. 15 CONNECTING A CLEARONE BLUETOOTH MODULE ..................16 BLUETOOTH PAIRING ............................16 COMPLIANCE ..............................17 ClearOne Contacts ............................17... -
Page 3: Important Safety Information
QUICK-START GUIDE IMPORTANT SAFETY INFORMATION Read and follow all instructions. Keep these instructions. Do not use these devices near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Contents
VERSA PRO CT CAUTION WARNING: RISK OF ELECTRIC SHOCK TO PREVENT THE EXCLAMATION THE LIGHTNING FLASH Use only in DO NOT OPEN POINT WITHIN THE AND ARROWHEAD FIRE OR non-tropical TRIANGLE IS A WARNING WITHIN THE TRIANGLE AVIS RISQUE DU CHOC... -
Page 5: Introduction

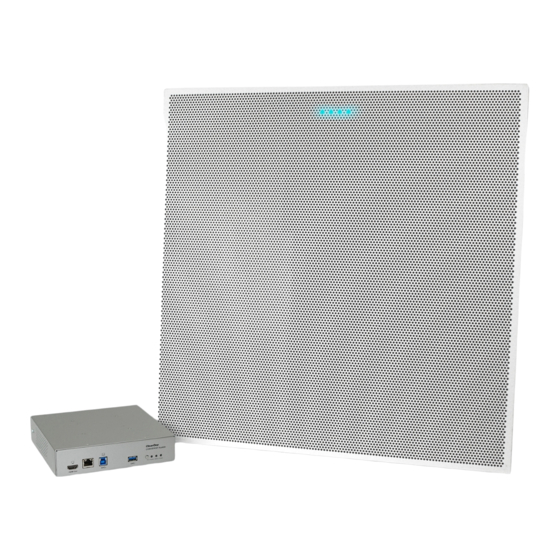

QUICK-START GUIDE INTRODUCTION VERSA PRO CT The VERSA PRO CT consists of two products: the CONVERGE® Huddle and the Beamforming Microphone Array CTH. The CONVERGE® Huddle is a professional audio DSP mixer that addresses today’s AV needs in huddle rooms and similarly sized meeting spaces. Audio and video collaboration applications can be accomplished through a single cable connection to users’... -
Page 6: System Requirements
VERSA PRO CT SYSTEM REQUIREMENTS Supported Operating Systems • Windows 7 • Windows 8 • Windows 10 Minimum System Requirements • Intel or AMD 6 with 1GHz or higher recommended • 2GB RAM (or higher recommended) • 500MB hard disk space (additional space is required to store site files and other project files) •... -
Page 7: Unpacking
Verify that you have received the following components. Inspect your shipment carefully. If the shipment shows obvious signs of damage, retain original boxes and packing material for inspection by the carrier, and contact them immediately. ClearOne is not responsible for product damage incurred during shipment. CONVERGE® Huddle Item No. -
Page 8: Bma Cth
VERSA PRO CT BMA CTH Item No. Description Quantity BMA CTH Plenum shield Phoenix Connectors (not shown) -
Page 9: Mounting
QUICK-START GUIDE MOUNTING CONVERGE® Huddle Your CONVERGE® Huddle product comes with mounting ears. The ears fit a rack mounting kit that can be used to mount 1 to 2 units in a 1RU rack (sold separately from the Huddle). There are 5 mounting options: •... -
Page 10: Bma Cth
VERSA PRO CT BMA CTH The BMA CTH mounts in a 24” x 24” or 600mm x 600mm ceiling tile space. There is also an adapter that converts the 600mm version to 625mm. There is no mounting hardware provided with the BMA CTH. -
Page 11: Controls And Connections
HDMI Out: Provides connectivity to room display devices (i.e. monitors). LAN Ethernet port: Provides network pass-through to the USB-connected laptop. USB Type B port: Used to configure Versa Pro CT. Also provides connectivity to laptops, Macs, and PCs. NOTE: Machines require DisplayLink driver. - Page 12 VERSA PRO CT Locate button: Indicates or highlights a device in Pro Console. Shows model number, unit name, and IP address. Locate LED: Blinking blue indicates that the “Locate” command has been received. Status LED: • Off (no light): unit still initializing •...
-
Page 13: Converge® Huddle Rear Panel
WARNING: Power over Ethernet (PoE) equipment used with CONVERGE® Huddle must meet the IEEE 802.3af or 802.3at standards. A 56V 640mA ClearOne PoE Power Injector (Part No. 910-3200-202) should be used. Power sourcing equipment complying with these standards follow a procedure for negotiating whether power should be supplied. Non- compliant power sourcing equipment may apply power immediately and could damage the CONVERGE®... -
Page 14: Bma Cth
PoE In: Connects PoE Injector to provide power to the BMA CTH. WARNING: Power over Ethernet (PoE) equipment used with CONVERGE® Huddle must meet the IEEE 802.3af or 802.3at standards. A 56V 640mA ClearOne PoE Power Injector (Part No. 910-3200-202) should be used. Power sourcing equipment complying with these standards follow a procedure for negotiating whether power should be supplied. -
Page 15: Configuring The Bma Cth Using The Converge® Huddle
The unit comes with default configuration for plug-and-play operation; however, Pro CONSOLE software can be used to configure CONVERGE® Huddle units. Configuration instructions for the BMA CTH can be found in the user manual, located at www.clearone.com. The default BMA CTH matrix is defined below. -
Page 16: Connecting A Clearone Bluetooth Module
In your Bluetooth-enabled device, navigate to your Bluetooth settings (e.g. for iOS users, Settings > Bluetooth). Select “ClearOne Bluetooth XXXX” (XXXX indicates the last 4 digits of the MAC address). When a device is paired, a short beep plays followed by a higher frequency beep. -
Page 17: Compliance
QUICK-START GUIDE COMPLIANCE Details on compliance for the CONVERGE® Huddle and the BMA CTH can be found on the ClearOne website under “Resource Library.” ClearOne Contacts Headquarters Sales 5225 Wiley Post Way Tel: 801.975.7200 Suite 500 e-mail: sales@clearone.com Salt Lake City, UT 84116 US &...
