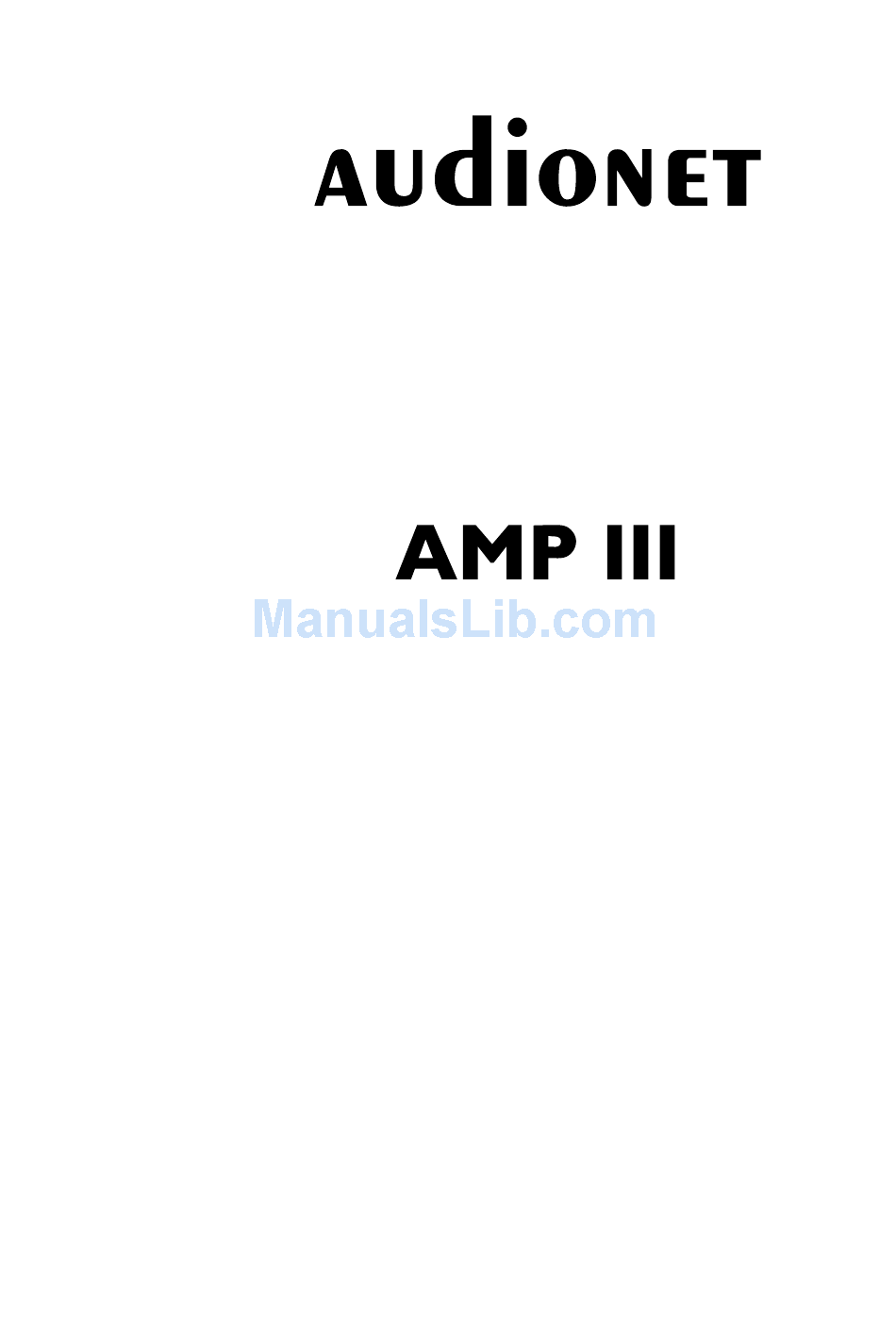

- Page 1 Three Channel Power Amplifier User's Manual...
-
Page 3: Table Of Contents
Orientation of mains plug ............. 9 Inputs and outputs..............10 Line inputs .................. 10 Speaker terminals ............... 11 Operating................... 11 Switching on/off ................. 11 Mains phase detection ..............12 Audionet Link................12 Protection system..............13 Security notes ................15 Technical data ......Fehler! Textmarke nicht definiert. -
Page 4: Preface

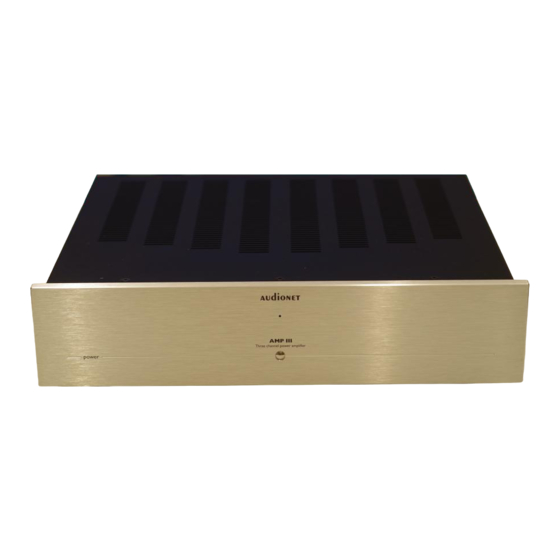

Providing three power amplifier channels, AMP III is primarily de- signed to drive the Center and Rear speakers making it easy to extend your stereo setup to a 5-channel home cinema application: AMP III is our home cinema expansion unit for stereo amplifiers. -
Page 5: Included
· Always use the plastic bag to prevent scratches on the housing. · Please allow the AMP III to adapt to the climatic conditions in your listening room before you switch on the unit for the first time after transport. -
Page 6: Overview Control Elements
Overview control elements 2.1 Front panel... -
Page 7: Overview Connections
Overview connections 3.1 Back panel... -
Page 8: Installation And Power Supply
It is recommended to place the AMP III into a high quality rack or onto a stable table. Do not expose the unit to direct sunlight. Do not place the unit in close range to heat sources like radiators. -
Page 9: Orientation Of Mains Plug
Note · Your Audionet AMP III is able to detect a wrong polarization of the mains plug. The LED in the front panel will flash quickly while pow- ering up from stand-by mode using the power key. In this case, power done the unit and flip the mains plug (see section 'Mains phase detection'). -
Page 10: Inputs And Outputs
Broken shields or short-cut loudspeaker cables could damage speakers and/or amplifiers. Line inputs At first, connect your pre amplifier to the line inputs 3 , 8 and 11 of the AMP III. Go by the names of the channels printed above the input jacks. Note ·... -
Page 11: Speaker Terminals
Operating Switching on/off First switch on the AMP III using the mains switch 5 on the back panel. For about 2 seconds the LED will flash rapidly while the unit is initial- ized. Afterwards, the AMP III is in stand-by mode; the LED is off. -
Page 12: Mains Phase Detection
· Independently from the 'Audionet Link' interface, you can switch on/off your AMP III at any time by using the power key on the front plate. -
Page 13: Protection System
Your Audionet AMP III is equipped with a powerful protection system that safeguards your speakers and itself. In case of an error the AMP III will report the cause in two steps. First, the LED on the front panel will flash the number of the error occurred. - Page 14 Example An error occurred. The AMP III switches off the speakers, and the LED on the front panel flashes: Ä_Ä______Ä_Ä______Ä_Ä______Ä_Ä ... According to the table above 2 flashes denote 'High Frequency Error'. Now, press the power key. The AMP III will report the channel number.
-
Page 15: Security Notes
Do not short circuit the outputs! · For connecting or removing loudspeakers and/or the pre amplifier your AMP III must be switched off to prevent damage to the ampli- fier or the connected units. · Use dry cloth for cleaning! We would like to wish you many exciting listening experiences with your new Audionet product. -
Page 16: Technical Data
LED red or blue Processor controlled protection circuit for HF, DC, temperature and overload Features Remote control by Audionet Link (optical) Automatic mains phase detection Errors and omissions excepted. Specifications and design are subject to changes without prior notice. audionet is a trademark of Idektron GmbH &...
