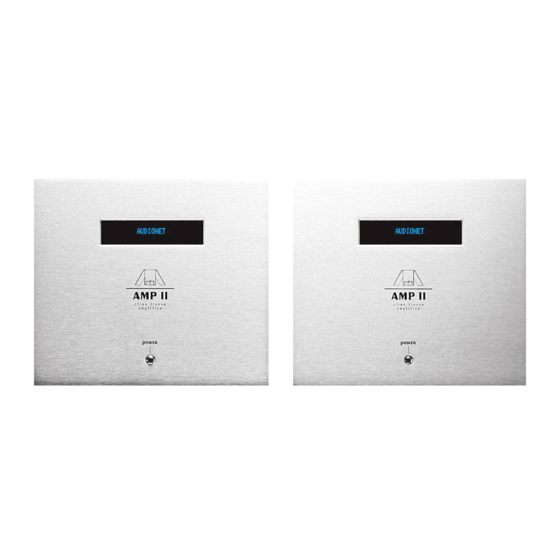

Audionet AMP II MAX Owner's Manual
  1. Manuals
  2. Brands
  3. Audionet Manuals
  4. Amplifier
  5. AMP II MAX
  6. Owner's manual

Audionet AMP II MAX Owner's Manual

Hide thumbs Also See for AMP II MAX:
Table of Contents

Advertisement

Quick Links

audionet
am
max
P II
Mono - Amplifier
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMP II MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audionet AMP II MAX

Summary of Contents for Audionet AMP II MAX

  • Page 1 P II Mono - Amplifier Owner's Manual...
  • Page 2 Owner's manual The Audionet-Team would like to congratulate you to purchasing the Audionet AMP II MAX! Your Audionet AMP II MAX is designed for absolutely natural music reproduction at highest user comfort embedding total system security. Please read this manual before first use to make sure that you are able to use all provided functions of your new amplifier.

  • Page 3: Setting Up Your System

    Please connect the power jack at the rear to your wall outlet using the provided Audionet Power Cord (APC). The voltage specified at the rear of your AMP II MAX must match your mains specifications. The AMP II MAX is a Class I unit and has to be earthed. Mains phase recognition The correct polarization of the mains is important for reasons of audio clarity and stability.

  • Page 4: Inputs And Outputs

    Bi-Wiring Your Audionet AMP II MAX supports bi-wiring of loudspeakers. Con- nect your speaker with two separate cables to each AMP II MAX. Using the bi-wiring method to connect your speakers can lead to enhanced sound quality.
  • Page 5 For switching on and off please press the “power” button at the front of the AMP II MAX. The main switch at the back is only to be used if you are absent for a longer time and must only be operated while the AMP II...
  • Page 6 "Warm Up" Countdown While you are absent your AMP II MAX can switch on automatically and will be pre-heated for use when you get back. To activate this feature please use a long key press on the "power" button at the front. The display changes to show the countdown timer.

  • Page 7: Protection System

    Protection system Your Audionet AMP II MAX and your loudspeakers are protected by a complex protection circuitry. The display will report in clear every de- tected error: § Overload: Shorted loudspeaker cables or defective loudspeaker. § Temp Failure: Do not cover the ventilation slots.
  • Page 8 To change settings use short or long key presses on the "power" button at the front of the AMP II MAX. Switch on your AMP II MAX and hold the button pressed for at least 2 seconds to enter the menu.
  • Page 9 OFF IN 5 MIN automatic power down OFF IN 15 MIN OFF IN 60 MIN OFF IN 120 MIN SET OFF TEXT AUDIONET Select text to be displayed in stand by mode  EXIT... Legend: long key press...

  • Page 10: Technical Information

    MOS-FETs. Peak level meter In order to determine the impulse peak level the AMP II MAX detects a voltage maximum and measures the current flowing at that point of time. By that, impedance critical loudspeakers are processed automatically and according to that a higher peak level is displayed.

  • Page 11: Security Advice

    Security advice ¨ Avoid packaging material, especially plastic bags, to get into children’s hands. ¨ Store and operate the unit in a dry room at a reasonable room temperature. ¨ Avoid moisture or any liquid to get into the unit. ¨...

  • Page 12: Technical Data

    Power 400 Watt in 8W 700 Watt in 4W 1100 Watt in 2W Bridged operations 2000 Watt in 8W, two AMP II MAX per channel Frequency response 0 - 300.000Hz (-3dB) Damping factor > 1.800 at 10kHz, (8W) > 10.000 at 100Hz, (8W) Intermodulation <...
