Summary of Contents for Audionet AMP III

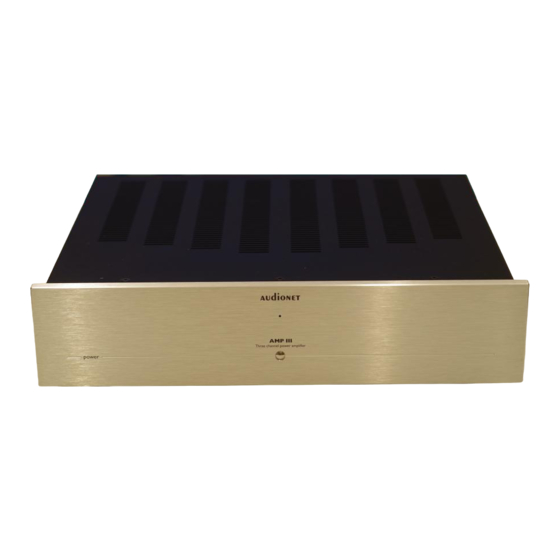

- Page 1 P III Stereo - Amplifier Owner's Manual...
- Page 2 Congratulations! Audionet is proud to welcome you in the world of german high-end au- dio! Your Audionet AMP III is designed for natural and audiophile music reproduction in conjunction with safe operation and perfect long-term stability. The AMP III combines excellent high-frequency capabilities with total control of your loudspeakers.
-
Page 3: Installation And Power Supply
Please ensure a stable earth connection. Mains phase detection Your Audionet AMP III is able to detect a wrong polarizing of the mains. If you see the front lamp flashing quickly when powering on, flip the plug in your wall outlet (also see below). -
Page 4: Inputs And Outputs
D.C., which are not unlikely especially with active crossovers. By con- necting the source to these inputs you prevent a DC-current flowing through the loudspeaker woofers decreasing sound dynamic and quality. In extreme cases the AMP III might even shut down showing the "DC" flash code (see below). Loop output The Audionet AMP III can be connected to other power amplifiers for "multi"-amping. - Page 5 "bass" cable from the side. In doubt please ask your dealer for assistance. Headphones A 6.3mm headphone jack is located on the rear of your AMP III. The signal on this socket is permanently active and cannot be switched off.
- Page 6 Bi-Amping The AMP III is the ideal partner for bi-amping. In combination with a second amplifier (e.g. Audionet SAM), the low range and the mid/high range section of your speakers can be driven by separate amplifiers.
- Page 7 "Audionet Link" with the "Link" input of your AMP III. Now the AMP III power follows the preamplifier. Length of the "Tos- link" cable is not critical - so you can place the AMP III next to the speakers if you prefer!
-
Page 8: Protection System
Protection system Your Audionet AMP III is equipped with one of the most powerful pro- tection circuits available on the market. Six errors are distinguished and indicated by the front LED using a "morse" like code: • • • Overload left ¾... - Page 9 (2x41.000µF). All 16 rectifying diodes are ultra-fast "schottky"-types. Microcontroller The AMP III is controlled and supervised by a powerful Infineon micro- controller. It checks the mains phase, detects errors of the power stages in time and indicates the cause unambiguously. Of course it is driven by an oversized power supply of its own.
-
Page 10: Precautions And Care
¨ Do not short-circuit the output terminals. ¨ Please use a dry cloth for cleaning We wish you many exciting listening experiences with your Audionet products! If you need further information about our products please do not hesitate... -
Page 11: Technical Data
430mm, h 110mm, d 360mm Weight 15kg Finish Steel Chassis: black, 2mm Front: 10mm aluminum, natural or black elox Top: brushed aluminum , black Engineered and produced by: Idektron GmbH & Co. KG, Herner Str. 299, Gebäude 6, 44809 Bochum www.audionet.de contact@audionet.de...
