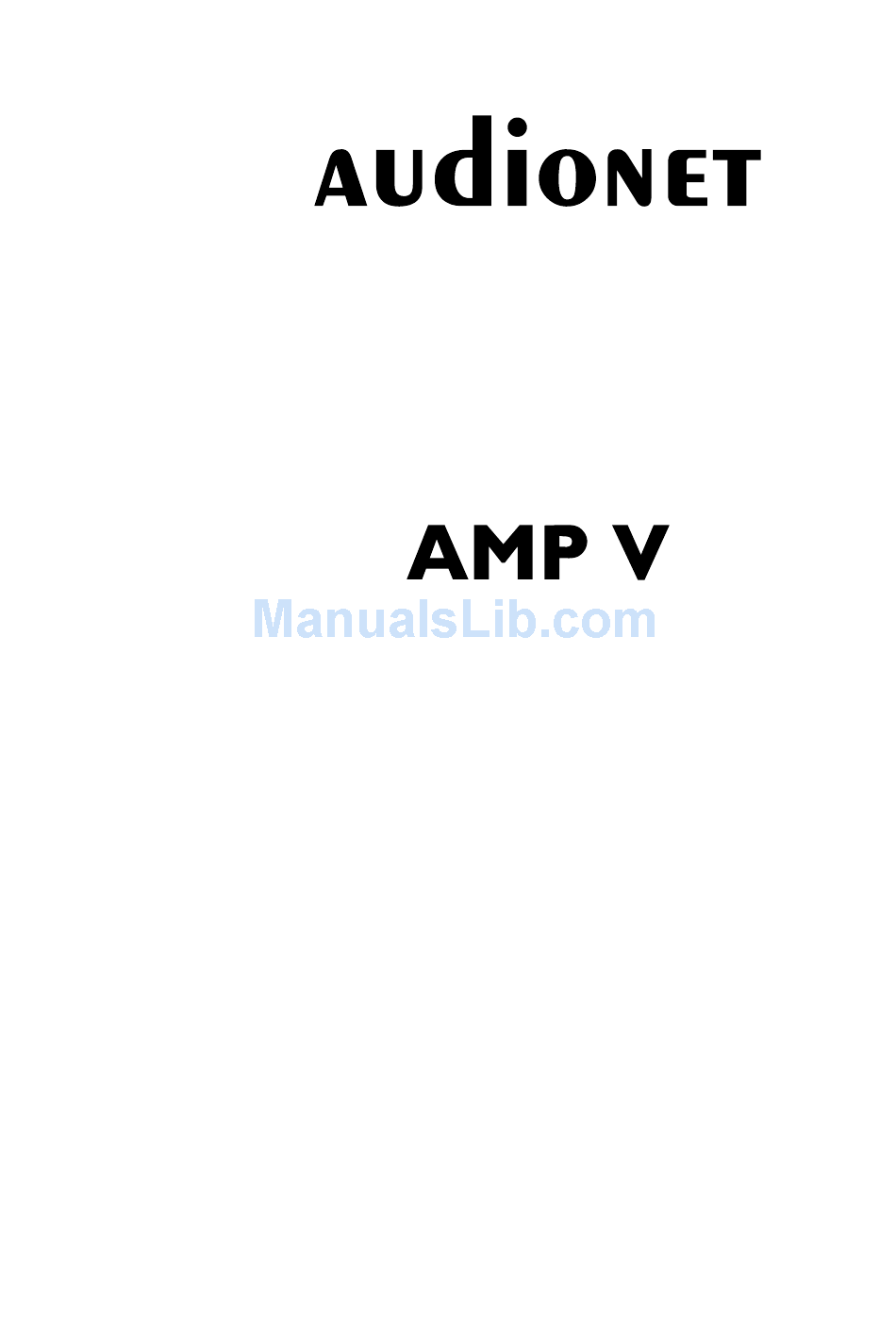

- Page 1 Multichannel Power Amplifier User's Manual...
-
Page 3: Table Of Contents
Orientation of mains plug ............. 9 Inputs and outputs..............10 Line inputs .................. 10 Speaker terminals ............... 11 Operating................... 11 Switching on/off ................. 11 Mains phase detection ..............12 Audionet Link................12 Protection system..............13 Security notes ................15 Technical data ................16... -
Page 4: Preface
AMP V is predestined for home theater solutions in particular suitable for your living space and primarily convincing in sound. Wether it is Mozart or King Kong, AMP V masters all its tasks with dedication and captivates its audience with an authenticity rarely to be experienced. -
Page 5: Included
· Always use the plastic bag to prevent scratches on the housing. · Please allow the AMP V to adapt to the climatic conditions in your listening room before you switch on the unit for the first time after transport. -
Page 6: Overview Control Elements
Overview control elements 2.1 Front panel... -
Page 7: Overview Connections
Overview connections 3.1 Back panel... -
Page 8: Installation And Power Supply
It is recommended to place the AMP V into a high quality rack or onto a stable table. Do not expose the unit to direct sunlight. Do not place the unit in close range to heat sources like radiators. -
Page 9: Orientation Of Mains Plug
Note · Your Audionet AMP V is able to detect a wrong polarization of the mains plug. The LED in the front panel will flash quickly while pow- ering up from stand-by mode using the power key. In this case, power done the unit and flip the mains plug (see section 'Mains phase detection'). -
Page 10: Inputs And Outputs
Line inputs At first, connect your pre amplifier to the line inputs 4 , 10 , 11 , 14 and 15 of the AMP V. Go by the names of the channels printed above the input jacks. Note ·... -
Page 11: Speaker Terminals
Operating Switching on/off First switch on the AMP V using the mains switch 7 on the back panel. For about 2 seconds the LED will flash rapidly while the unit is initial- ized. Afterwards, the AMP V is in stand-by mode; the LED is off. -
Page 12: Mains Phase Detection
· If you see the LED flashing rapidly: Ä_Ä_Ä_Ä_Ä… please switch off the unit and flip the mains plug. If you now switch on the AMP V again, the unit should show the correct mains polarization by a slowly flashing LED. -
Page 13: Protection System
Your Audionet AMP V is equipped with a powerful protection system that safeguards your speakers and itself. In case of an error the AMP V will report the cause in two steps. First, the LED on the front panel will flash the number of the error occurred. Just... - Page 14 Example An error occurred. The AMP V switches off the speakers, and the LED on the front panel flashes: Ä_Ä______Ä_Ä______Ä_Ä______Ä_Ä ... According to the table above 2 flashes denote 'High Frequency Error'. Now, press the power key. The AMP V will report the channel number.
-
Page 15: Security Notes
Do not short circuit the outputs! · If you use 2 or more amplifiers of your AMP V for bi-amping, please make absolutely sure, that you removed any jumpers at the terminals of your speakers (please consult the user's manual of your speakers), before you switch on the system. -
Page 16: Technical Data
LED red or blue Processor controlled protection circuit for HF, DC, temperature and overload Features Remote control by Audionet Link (optical) Automatic mains phase detection Errors and omissions excepted. Specifications and design are subject to changes without prior notice. audionet is a trademark of Idektron GmbH &...
