INFOSEC M4T User Manual page 7

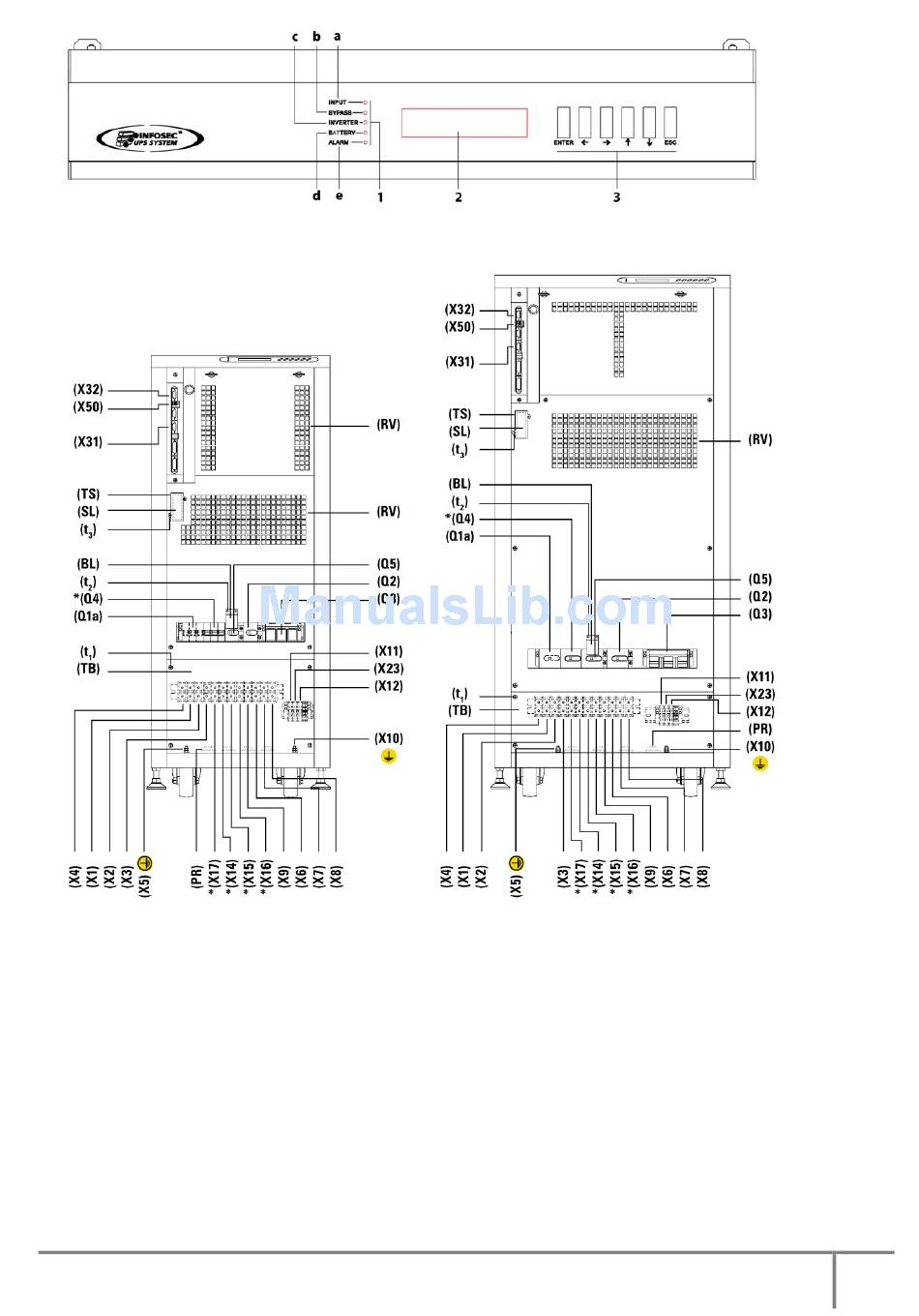

Fig.3. Control panel view.
Only in optional version -B (Independent Static Bypass line).
Fig.4.
Cabinet front view for UPS devices up to 20kVA with front door
opened and configuration of three phase input and output.
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 03 11 AA AA 201 18
Fig.5.
Cabinet front view for UPS devices from 30 to 80kVA with front door
opened and configuration of three phase input and output.
