6.3 Screen description.

6.3.1
Main level (screen menu 0.0).
M4T
11:19:35 10/2009
screen 0.0

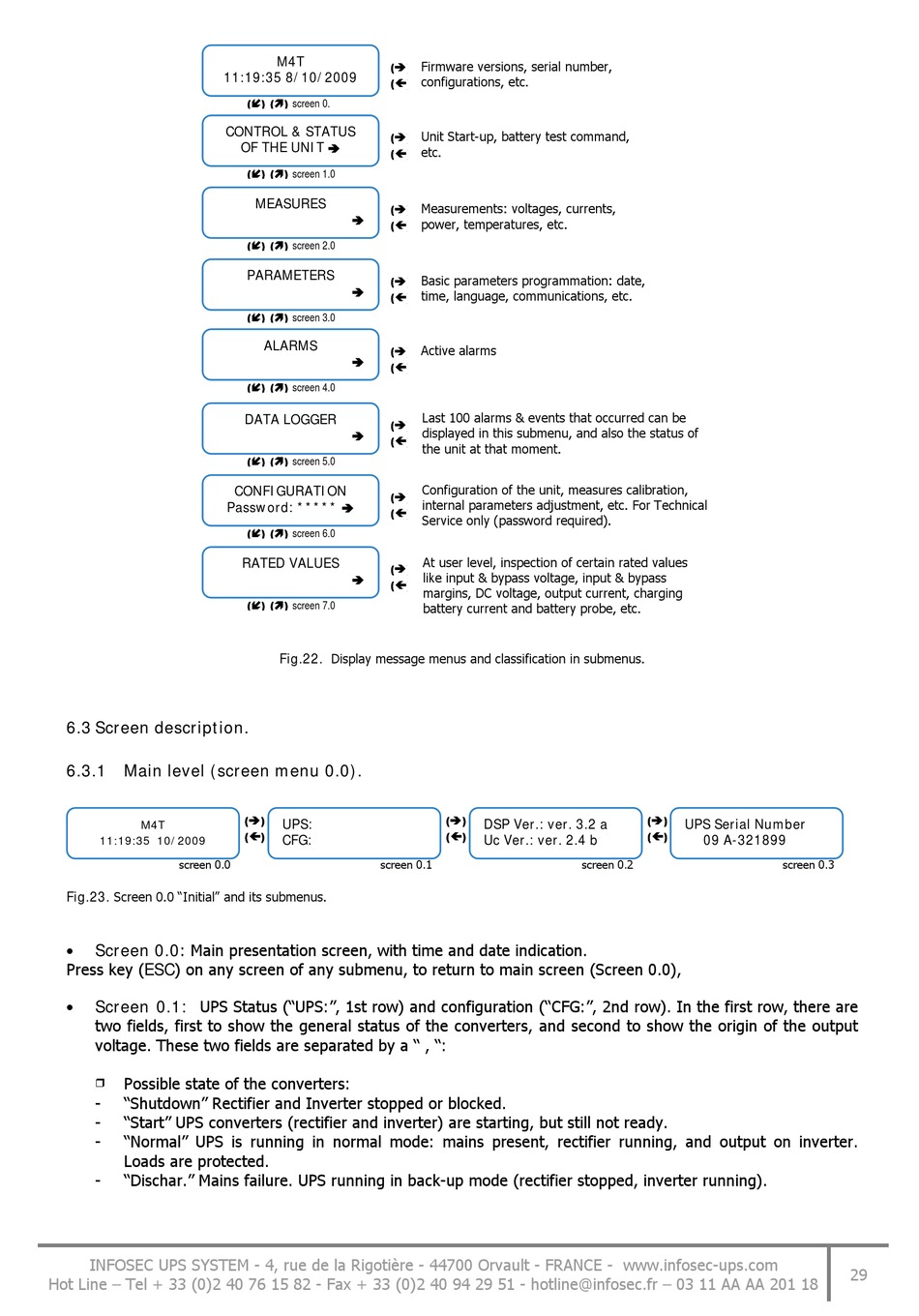

Fig.23. Screen 0.0 "Initial" and its submenus.
Screen 0.0: Main presentation screen, with time and date indication.
Press key (ESC) on any screen of any submenu, to return to main screen (Screen 0.0),
Screen 0.1: UPS Status ("UPS:", 1st row) and configuration (''CFG:", 2nd row). In the first row, there are
two fields, first to show the general status of the converters, and second to show the origin of the output
voltage. These two fields are separated by a " , ":
Possible state of the converters:
-
"Shutdown" Rectifier and Inverter stopped or blocked.
-
"Start" UPS converters (rectifier and inverter) are starting, but still not ready.
-
"Normal" UPS is running in normal mode: mains present, rectifier running, and output on inverter.
Loads are protected.
-
"Dischar." Mains failure. UPS running in back-up mode (rectifier stopped, inverter running).
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 03 11 AA AA 201 18
M4T
()
11:19:35 8/10/2009
()
() () screen 0.
CONTROL & STATUS
()
OF THE UNIT
()
() () screen 1.0
MEASURES
()
()
() () screen 2.0
PARAMETERS
()
()
() () screen 3.0
ALARMS
()
()
() () screen 4.0
DATA LOGGER
()
()
() () screen 5.0
CONFIGURATION
()
Password: *****
()
() () screen 6.0
RATED VALUES
()
()
() () screen 7.0
Fig.22. Display message menus and classification in submenus.
()
UPS:
()
CFG:
screen 0.1
Firmware versions, serial number,
configurations, etc.
Unit Start-up, battery test command,
etc.
Measurements: voltages, currents,
power, temperatures, etc.
Basic parameters programmation: date,
time, language, communications, etc.
Active alarms
Last 100 alarms & events that occurred can be
displayed in this submenu, and also the status of
the unit at that moment.
Configuration of the unit, measures calibration,
internal parameters adjustment, etc. For Technical
Service only (password required).
At user level, inspection of certain rated values
like input & bypass voltage, input & bypass
margins, DC voltage, output current, charging
battery current and battery probe, etc.
()
DSP Ver.: ver. 3.2 a
()
Uc Ver.: ver. 2.4 b
screen 0.2
()
()
UPS Serial Number
()
()
09 A-321899
screen 0.3
