6.3.3 ''MEASURES'' level (screen menu 2.0).
MEASURES
screen 2.0
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 03 11 AA AA 201 18
I.VOLTAGE V12=398.3
()
V23=397.7 V31=400.2
()
screen 2.1
()
OUT. VOLT V1N=230.1
()
V2N=229.8 V3N=230.0
screen 2.4
()
INV. CURR. I1=42.3
()
I2=40.8 I3=41.9
screen 2.7
()
DC BUS VOLTAGES
()
P=420.3V N=421.0V
screen 2.10
()
DISC. BAT. CURRENTS
() P=0.0A N=0.0A
screen 2.13
()
INP. APPARENT POW.
()
L3=9.4KVA
screen 2.16
INPUT ACTIVE POWER
L3=9.4KW
screen 2.19
()
OUTPUT APPARENT
()
POW L1=9.4KVA
screen 2.22
OUTPUT ACTIVE
POWER L1=8.2KW
screen 2.25
OUTPUT TOTAL POWER
27.1KVA 25.1KW
Screen2.28
TOTAL LOAD
IN:53.8% OUT:52.3%
screen 2.31
ESTIMAT. BACKUP TIME
16 minutes
screen 2.34

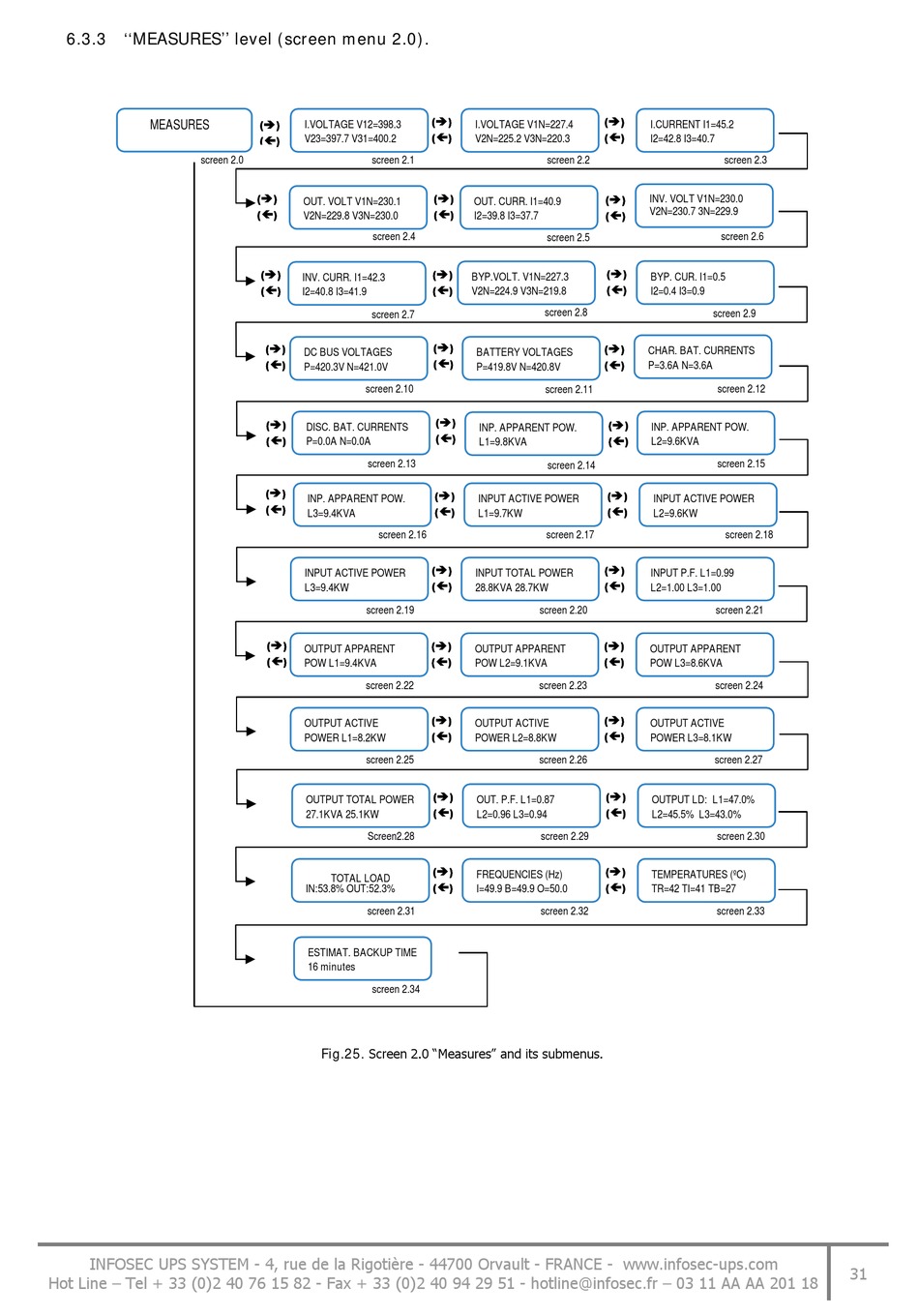

Fig.25. Screen 2.0 "Measures" and its submenus.
()
I.VOLTAGE V1N=227.4
()
V2N=225.2 V3N=220.3
screen 2.2
()
OUT. CURR. I1=40.9
()
I2=39.8 I3=37.7
screen 2.5
()
BYP.VOLT. V1N=227.3
()
V2N=224.9 V3N=219.8
screen 2.8
()
BATTERY VOLTAGES
()
P=419.8V N=420.8V
screen 2.11
()
INP. APPARENT POW.
()
L1=9.8KVA
screen 2.14
()
INPUT ACTIVE POWER
()
L1=9.7KW
screen 2.17
()
INPUT TOTAL POWER
()
28.8KVA 28.7KW
screen 2.20
() ()
OUTPUT APPARENT
() ()
POW L2=9.1KVA
screen 2.23
() ()
OUTPUT ACTIVE
() ()
POWER L2=8.8KW
screen 2.26
()
OUT. P.F. L1=0.87
()
L2=0.96 L3=0.94
screen 2.29
()
FREQUENCIES (Hz)
()
I=49.9 B=49.9 O=50.0
screen 2.32
()
I.CURRENT I1=45.2
()
I2=42.8 I3=40.7
screen 2.3
INV. VOLT V1N=230.0
()
V2N=230.7 3N=229.9
()
screen 2.6
()
BYP. CUR. I1=0.5
() I2=0.4 I3=0.9
screen 2.9
()
CHAR. BAT. CURRENTS
() P=3.6A N=3.6A
screen 2.12
()
INP. APPARENT POW.
() L2=9.6KVA
screen 2.15
()
INPUT ACTIVE POWER
()
L2=9.6KW
screen 2.18
()
INPUT P.F. L1=0.99
()
L2=1.00 L3=1.00
screen 2.21
OUTPUT APPARENT
POW L3=8.6KVA
screen 2.24
OUTPUT ACTIVE
POWER L3=8.1KW
screen 2.27
()
OUTPUT LD: L1=47.0%
()
L2=45.5% L3=43.0%
screen 2.30
()
TEMPERATURES (ºC)
()
TR=42 TI=41 TB=27
screen 2.33
