Screen 5.5: This is a screen for technical service, to know the state of the different parts of the UPS at the
moment the registered alarm was activated.

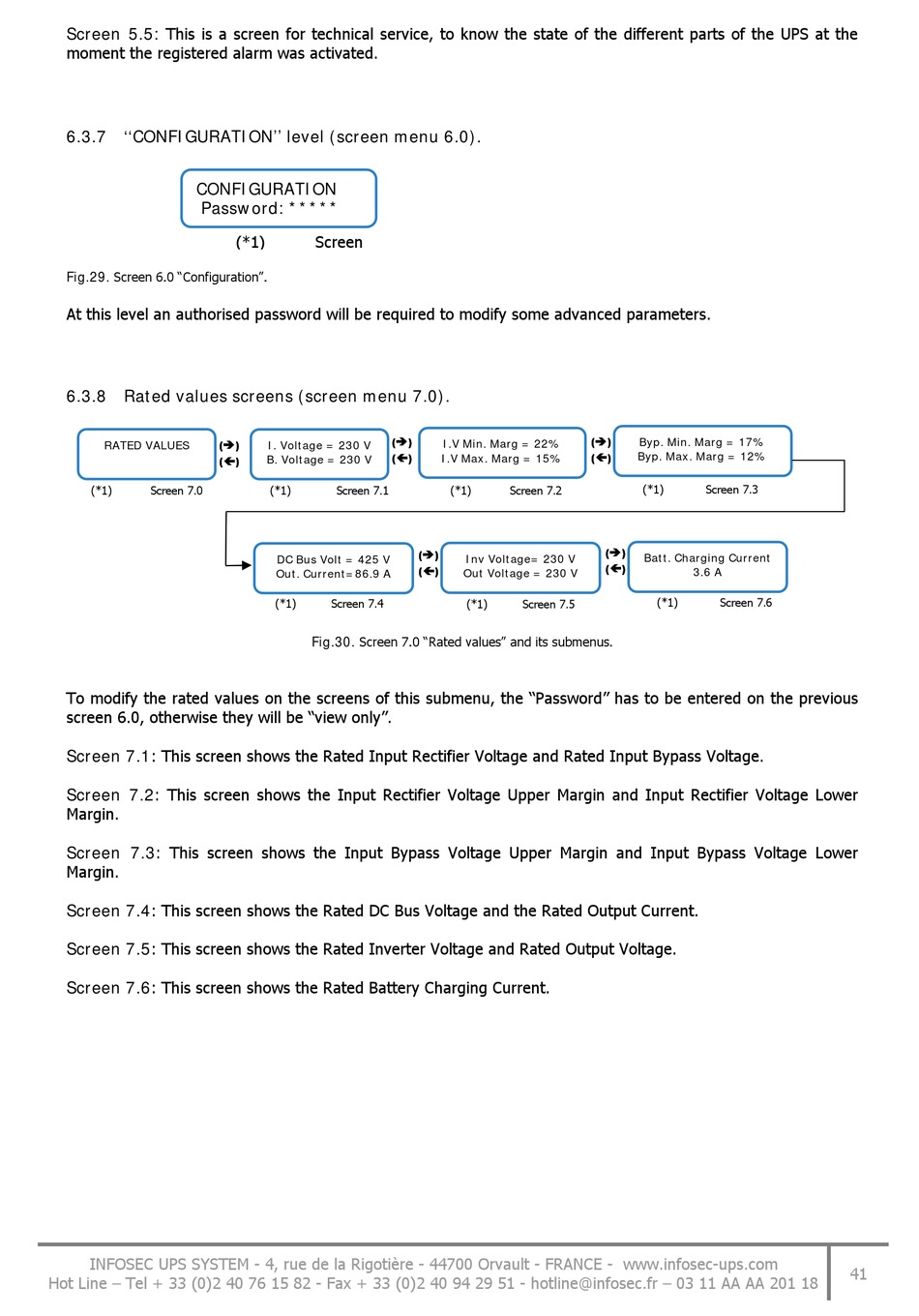

6.3.7 ''CONFIGURATION'' level (screen menu 6.0).
CONFIGURATION
Password: *****
Fig.29. Screen 6.0 "Configuration".
At this level an authorised password will be required to modify some advanced parameters.
6.3.8 Rated values screens (screen menu 7.0).
RATED VALUES
()
()
(*1) Screen 7.0
To modify the rated values on the screens of this submenu, the "Password" has to be entered on the previous
screen 6.0, otherwise they will be "view only".
Screen 7.1: This screen shows the Rated Input Rectifier Voltage and Rated Input Bypass Voltage.
Screen 7.2: This screen shows the Input Rectifier Voltage Upper Margin and Input Rectifier Voltage Lower
Margin.
Screen 7.3: This screen shows the Input Bypass Voltage Upper Margin and Input Bypass Voltage Lower
Margin.
Screen 7.4: This screen shows the Rated DC Bus Voltage and the Rated Output Current.
Screen 7.5: This screen shows the Rated Inverter Voltage and Rated Output Voltage.
Screen 7.6: This screen shows the Rated Battery Charging Current.
