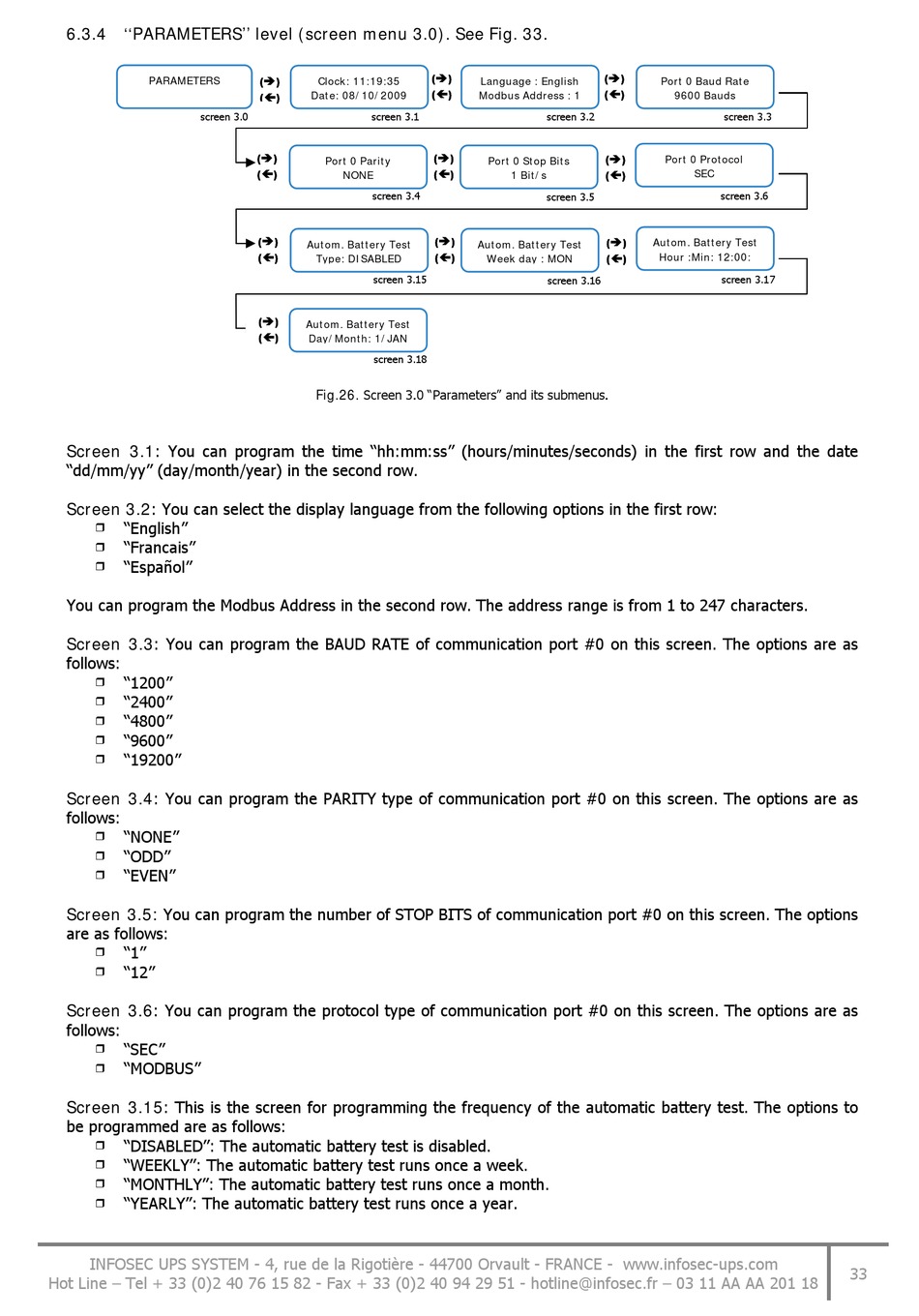

''PARAMETERS'' level (screen menu 3.0). See Fig. 33.

PARAMETERS
screen 3.0
Screen 3.1: You can program the time "hh:mm:ss" (hours/minutes/seconds) in the first row and the date
"dd/mm/yy" (day/month/year) in the second row.
Screen 3.2: You can select the display language from the following options in the first row:
"English"
"Francais"
"Español"
You can program the Modbus Address in the second row. The address range is from 1 to 247 characters.
Screen 3.3: You can program the BAUD RATE of communication port #0 on this screen. The options are as
follows:
"1200"
"2400"
"4800"
"9600"
"19200"
Screen 3.4: You can program the PARITY type of communication port #0 on this screen. The options are as
follows:
"NONE"
"ODD"
"EVEN"
Screen 3.5: You can program the number of STOP BITS of communication port #0 on this screen. The options
are as follows:
"1"
"12"
Screen 3.6: You can program the protocol type of communication port #0 on this screen. The options are as
follows:
"SEC"
"MODBUS"
Screen 3.15: This is the screen for programming the frequency of the automatic battery test. The options to
be programmed are as follows:
"DISABLED'': The automatic battery test is disabled.
"WEEKLY'': The automatic battery test runs once a week.
"MONTHLY'': The automatic battery test runs once a month.
"YEARLY'': The automatic battery test runs once a year.
