Message Menus And Classification In Submenus - INFOSEC M4T User Manual

Setting values. Press key (ENT) to activate the function setting, the figures in the screen flash. With
 
keys ( ) the character to set is selected and with keys (
)-(
press (ENT). The next field will flash. To continue with the settings proceed in the same way or press
(ESC) to return to no-setting situation.
Validation of orders or commands.
 Press key (ESC) on any screen of any submenu, to return to main screen (Screen 0.0), unless on a screen
of a "Parameters" menu and setting any of them. If so, the first pulsation of key (ESC) will stop the
flashing value, and a second time to return to main screen.
 Notes related to the screen map (see figure 21):
Some screens have a certain number of "–" characters. Each one represents a character so the
maximum length of the field will be determined by their number.
Each screen is labelled with a number located to the right bottom corner. It is only included as a simple
reference for the next description and explanation.
Note (*1): means the hidden programming screens through the password (*****) in "screen 1...".
This safety level prevents unauthorised staff from altering or modifying setting.

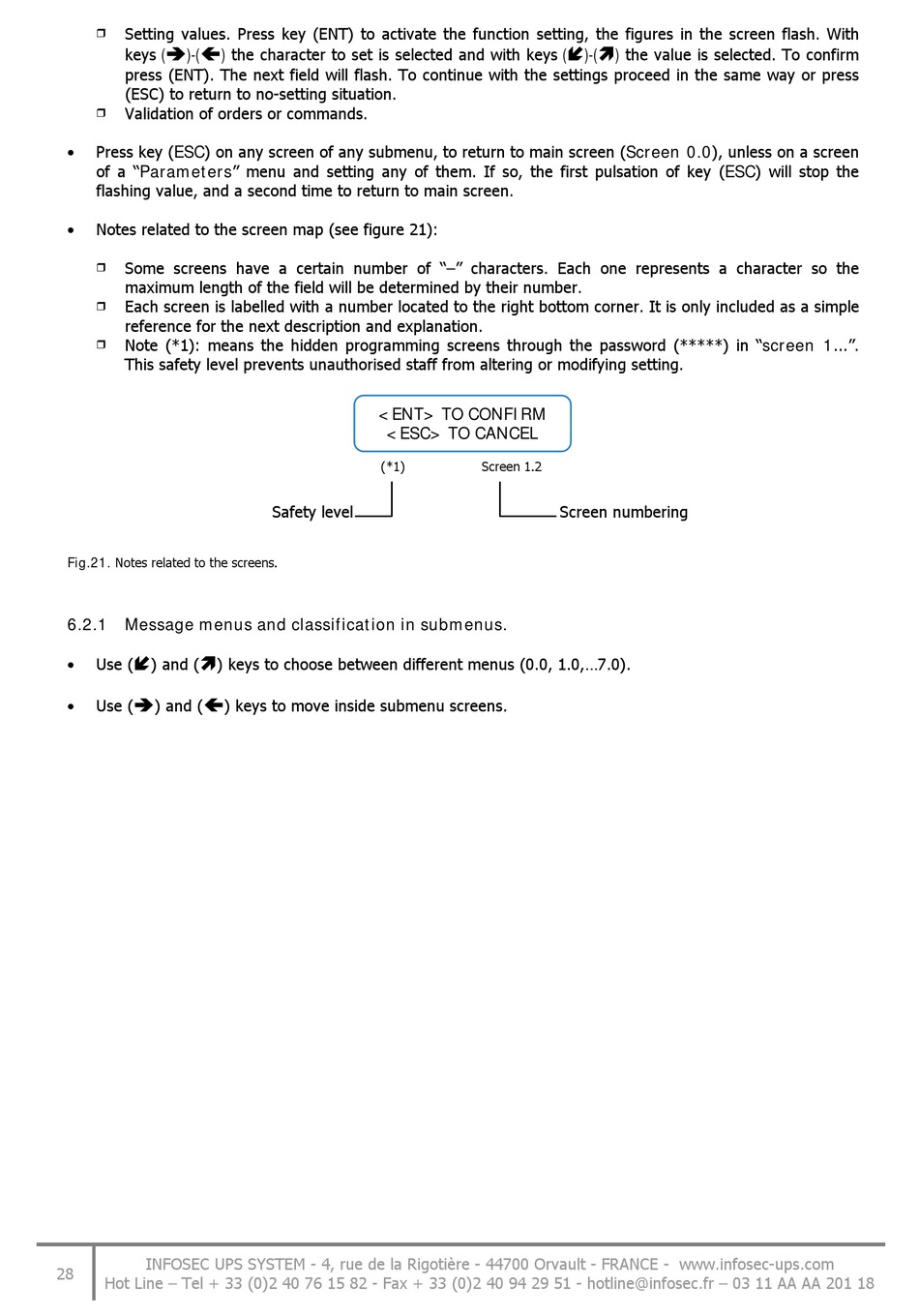

Fig.21. Notes related to the screens.
6.2.1

Message menus and classification in submenus.

 
 Use ( ) and ( ) keys to choose between different menus (0.0, 1.0,...7.0).
 
 Use ( ) and ( ) keys to move inside submenu screens.
