- Page 1 PCI Express Serial Cards User’s Manual PCI Express Serial Cards (ID-E20011-S1/ID-E20111-S1/ID-E40011-S1/ID-E80011- S1/IC-E20211-S1/ID-E80111-S1) User’s Manual - 1 - REV: 1.2...
-
Page 2: Safety Instructions
PCI Express Serial Cards User’s Manual Copyright Statement No part of this publication may be reproduced in any form by any means without the prior written permission. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. -
Page 3: Table Of Contents
PCI Express Serial Cards User’s Manual Table of Contents Introduction ..........................4 Hardware Specification........................5 ID-E20111-S1 Specifications..................... 5 ID-E20111-S1 Dimensions ......................5 ID-E20211-S1 Specification ...................... 6 ID-E20211-S1 Dimensions ......................6 ID-E20011-S1 Specifications..................... 7 ID-E20011-S1 Dimensions ......................7 ID-E40011-S1 Specifications..................... 8 ID-E40011-S1 Dimensions ...................... -
Page 4: Introduction

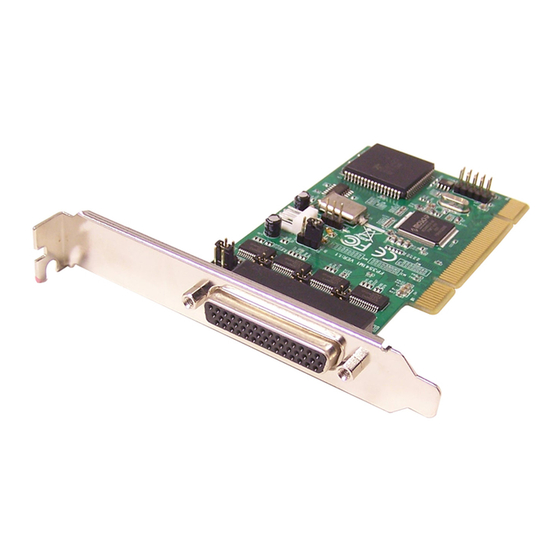

PCIe (or PCI-E, as it is commonly called), is a computer expansion card standard. The PCI Express serial cards meet the PCIe standard to work with any PCI Express slot. The boards have multiple RS-232/422/485 serial ports for connecting data acquisition devices and other serial devices to your computer. -
Page 5: Hardware Specification
PCI Express Serial Cards User’s Manual Hardware Specification ID-E20111-S1 Specification Ports 2xRS-232 Connector 8-pin RJ-45 FIFO 256 byte ESD Protection 15KV ESD Serial Communication Speed 300 bps ~ 921.6 Kbps Bus Interface PCI Express 0~55 ℃ Operating Temperature Operating Humidity... -
Page 6: Id-E20211-S1 Specification
PCI Express Serial Cards User’s Manual ID-E20211-S1 Specification Ports 2xRS-422/485 Connector 8-pin RJ-45 FIFO 256 bytes ESD Protection 15KV ESD Serial Communication Speed 300 bps ~ 921.6 Kbps Bus Interface PCI Express 0~55 ℃ Operating Temperature Operating Humidity 5~95% RH Dimensions (LxH) 73.9x66.8mm... -
Page 7: Id-E20011-S1 Specifications
PCI Express Serial Cards User’s Manual ID-E20011-S1 Specifications Ports 2xRS-232 Connector DB9 male FIFO 256 bytes ESD Protection 15KV ESD Serial Communication Speed 300 bps ~ 921.6 Kbps Bus Interface PCI Express 0~55 ℃ Operating Temperature Operating Humidity 5~95% RH Dimensions (LxH) 86.0x92.7mm... -
Page 8: Id-E40011-S1 Specifications
PCI Express Serial Cards User’s Manual ID-E40011-S1 Specifications Ports 4xRS-232 Connector DB44 female FIFO 256 bytes ESD Protection 15KV ESD Serial Communication Speed 300 bps ~ 921.6 Kbps Bus Interface PCI Express 0~55 ℃ Operating Temperature Operating Humidity 5~95% RH Dimensions (LxH) 73.9x61.7mm... -
Page 9: Id-E80011-S1 Specifications
PCI Express Serial Cards User’s Manual ID-E80011-S1 Specifications Ports 8xRS-232 Connector SCSI VHDI68 female FIFO 128 byte ESD Protection 15KV ESD Serial Communication Speed 300 bps ~ 921.6 Kbps Bus Interface PCI Express 0~55 ℃ Operating Temperature Operating Humidity 5~95% RH Dimensions (LxH) 73.9x66.8mm... -
Page 10: Id-E80111-S1 Specifications
PCI Express Serial Cards User’s Manual ID-E80111-S1 Specifications Ports 8xRS-232/422/485 Connector SCSI VHDI68 female FIFO 128 bytes ESD Protection 15 KV ESD Serial Communication Speed 300 bps ~ 921.6 Kbps Bus Interface PCI Express 0~55 ℃ Operating Temperature Operating Humidity... -
Page 11: Software Installation
PCI Express Serial Cards User’s Manual Software Installation The board MUST be plugged in before installing the driver software. Windows XP and Windows 7 driver installations are given below. The software installation for all other Windows versions will be similar. - Page 12 After selecting Search for the best driver in these locations, check the Include this location in the search checkbox, and then use the browse button to navigate the CD to find the folder matching the SIIG part number of your serial card, and click Next. - 12 -...
- Page 13 PCI Express Serial Cards User’s Manual Click Continue Anyway in response to any warnings that the software hasn’t passed Windows Logo testing. - 13 - REV: 1.2...
- Page 14 PCI Express Serial Cards User’s Manual After the driver has been installed, the installation wizard will guide you through the port installation procedure, start with port0. - 14 - REV: 1.2...
- Page 15 PCI Express Serial Cards User’s Manual - 15 - REV: 1.2...
- Page 16 PCI Express Serial Cards User’s Manual Use the Device Manager to check if the installation of the board and ports was successful. Click on the + sign next to Hardware, and then check under Multifunction adapters and Ports (COM & LPT). If there are any special marks, such as a question mark or exclamation point, in front of the board or port icons, shutdown the computer and make sure that the serial card is solidly connected to the PCI Express bus connector.
-
Page 17: Windows 7 Driver Installation
PCI Express Serial Cards User’s Manual Windows 7 Driver Installation After powering on your PC, Windows 7 will detect the board automatically. Insert the Driver CD in your CD-ROM drive. Select Update Driver Software in Device Manager. - 17 -... - Page 18 Select “Browse my computer for driver software”. After selecting Browse for driver software on your computer, use the browse button to navigate the CD to find the folder matching the SIIG part number of your serial card. Then click Next.
- Page 19 PCI Express Serial Cards User’s Manual Click Install this driver software anyway in response to any warnings that the software hasn’t passed Windows Logo testing. After the driver has been installed, the installation wizard will guide you through the port installation procedure, start with port0.
- Page 20 PCI Express Serial Cards User’s Manual Use the Device Manager to check if the installation of the board and ports was successful. Click on the +sign next to Hardware, and then check under Multifunction adapters and Ports (COM & LPT). If there are any special marks, such as a question mark or exclamation point, in front of the board or port icons, shutdown the computer and make sure that the serial card is solidly connected to the PCI Express bus connector.
-
Page 21: Jumper & Pin Assignments
PCI Express Serial Cards User’s Manual JUMPER & PIN Assignments ID-E20011-S1/ ID-E20111-S1/ ID-E40011-S1/ ID-E80011-S1 Pin Assignment - 21 - REV: 1.2... -
Page 22: Id-E80111-S1 Jumper & Pin Assignment
PCI Express Serial Cards User’s Manual ID-E80111-S1 Jumper & Pin assignment RS-232 Mode Setting - 22 - REV: 1.2... - Page 23 PCI Express Serial Cards User’s Manual RS-422/485 Mode Setting - 23 - REV: 1.2...
- Page 24 PCI Express Serial Cards User’s Manual ID-E80111-S1: VHDCI68 (female) RS-232 RS-422/485(4-wire) - 24 - REV: 1.2...
- Page 25 PCI Express Serial Cards User’s Manual - 25 - REV: 1.2...
-
Page 26: Id-E20211-S1 Jumper & Pin Assignment
PCI Express Serial Cards User’s Manual ID-E20211-S1 Jumper & Pin Assignment - 26 - REV: 1.2... - Page 27 PCI Express Serial Cards User’s Manual - 27 - REV: 1.2...
- Page 28 • Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton.
- Page 29 Fremont, CA 94538-3152, USA Phone: 510-657-8688 PCI Express Serial Cards is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
