Holland Grill Epic BH421-AG4 Instruction Manual

Holland epic grill instruction manual
Hide thumbs Also See for Epic BH421-AG4:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual

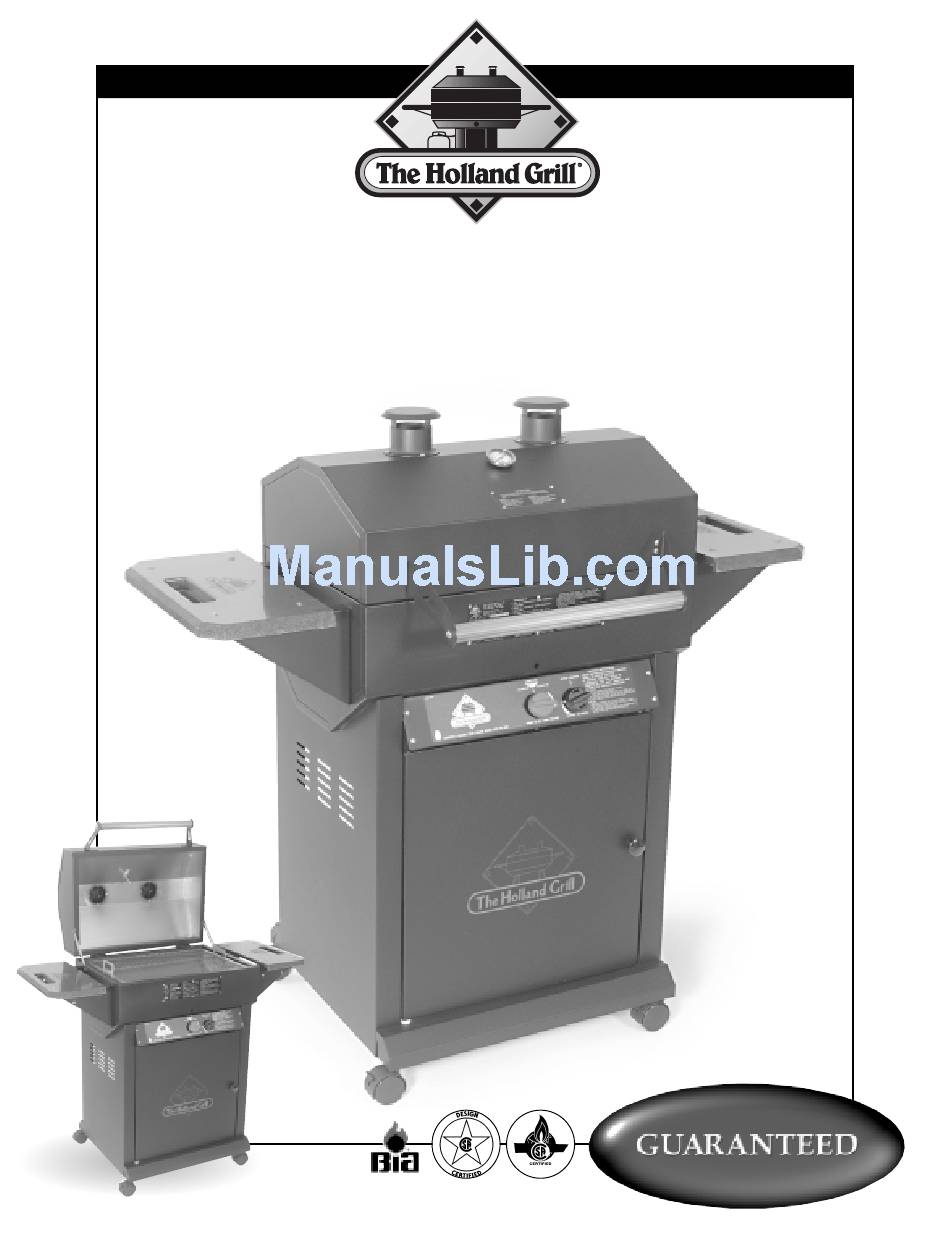

READ THIS
Instruction Manual
The
Epic
Epic
TM
BARBECUE INDUSTRY
ASSOCIATION MEMBER
BOOK FIRST
By Holland
BH421-AG4
L.P. Tank
not included.
L.P. NOTICE: This grill shall
be connected only to a 20 lb.
L.P. cylinder that is equipped
with a Sherwood Valve
#PV3349 AND an overfill
protection device (OPD).
The only Grill
not to flare up!
TM
©The Holland Grill Co., Inc. V2007 PN SG5-002
ANSI Z21.58b-2006/CSA 1.6b-2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Epic BH421-AG4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Holland Grill Epic BH421-AG4

Summary of Contents for Holland Grill Epic BH421-AG4

  • Page 1 20 lb. L.P. cylinder that is equipped with a Sherwood Valve #PV3349 AND an overfill protection device (OPD). The only Grill not to flare up! ©The Holland Grill Co., Inc. V2007 PN SG5-002 ANSI Z21.58b-2006/CSA 1.6b-2006...

  • Page 2: If You Smell Gas

    DANGER IF YOU SMELL GAS: 1. SHUT OFF GAS TO APPLIANCE. 2. EXTINGUISH ANY OPEN FLAME. 3. OPEN LID. 4. IF ODOR CONTINUES, KEEP AWAY FROM THE APPLIANCE AND IMMEDIATELY CALL YOUR GAS SUPPLIER OR YOUR FIRE DEPARTMENT. WARNING 1. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE LIQUIDS OR VAPORS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
  • Page 3 Not only will you be able to enjoy time with friends and family while you grill worry-free, you’ll be able to do so for years to come. All Holland grills are made of top quality materials which give them a sturdiness that will last for years. We use only the best materials to ensure your new grill will look like new and cook like new well into the future.

  • Page 4: Safety Information

    IN A BUILDING, GARAGE OR ANY OTHER ENCLOSED AREA. • EXCESSIVELY WINDY OR COLD CONDITIONS MAY AFFECT GRILL COOKING PERFORMANCE. • CHOOSE ONLY A LEVEL LOCATION FOR GRILL OPERATION. THE HOLLAND GRILL MUST BE SITTING SECURELY ON A LEVEL SURFACE FOR PROPER OPERATION AND EVEN HEAT DISTRIBUTION.
  • Page 5 NATURAL GAS: If natural gas is used, contact your local supplier to set it up properly. The N.G. Holland Grill is set to operate at 7 inches water column pressure, using an orifice with a #48 drill size.
  • Page 6 FIGURE 2b Cabinet side, RIGHT Cabinet side, LEFT FIGURE 2a Cabinet side, RIGHT 8-32 x 3/8 Screw Magnetic Catch 8-32 x 3/8 Hex Nut and Lock Washer 1/4 - 20 Hex Bolt and Lock Washer (typ 8 plcs) Tank Support Lower Valance Heavy Duty Caster ASSEMBLY INSTRUCTIONS...
  • Page 7 FIGURE 4a Bottom Assembly Route electrode wire through obround hole 1/4 - 20 Hex Nut 1/4 Lock Washer (both sides) Secure right side first 1/4 - 20 x 5/8” Hex bolt (both sides) Cabinet Assembly Step 3. Refer to Figure 3. Select the following items: 1.
  • Page 8 FIGURE 5a 10 - 24 Carriage Bolt bolt must be inserted in slot of Lid Stop Flat Washer and “Top Lock” Nut FIGURE 5b 10 - 24 x 1/2 Carriage Bolt 10 - 24 Top Lock Nut and flat Washer Insert Lid Stop into slot in Lid Lid Stop...
  • Page 9 FIGURE 6 10 -24 x 1” Carriage bolt 10 -24 Hex Nut and Lock Washer Shelf Bracket Step 8. Refer to Figure 8. Select the following items: 1. drip pan 4. cooking grid 2. drain pipe 5. drip bucket 3. drain valve ❍...

  • Page 10: Lighting Instructions

    There should be no need for re-adjustment for the life of your Holland Grill, but it is wise to check the flame color each time you light your grill. When proper setting is obtained be sure to re-tighten the lock nut against the valve.

  • Page 11: Turning Grill Off

    Following these instructions will improve the longevity and quality of cooking. To assure safe operation of your Holland Grill, the area for cooking should always be kept free of combustible materials of any type, such as gasoline or other flammable vapors or liquids.

  • Page 12: Cooking Instructions

    ALLOW GRILL TO WARM UP WITH LID CLOSED FOR 20 - 30 MINUTES PRIOR TO COOKING. • It is important to realize cooking on a Holland Grill uses a different process in order for the grill to perform correctly. It is essential that the lid remain closed while grilling.

  • Page 13: Replacements Parts List

    TANK SUPPORT SS5-914C LID STOP If you have a question about the warranty or want to order parts or accessories, please contact your local Holland Grill dealer or call 800-880-9766 or visit us on the web at hollandgrill.com Stock No.

  • Page 14: Grilling Instructions

    Oysters, clams, crab legs, etc. NOTE: Remember, the Holland Grill needs to warm up completely. Temperature will remain about 400 degrees F. All grilling times are approximate depending on size, weight and individual taste preference. Grill needs to remain closed at all times during grilling to be accurate with this time chart. Each time grill is opened during the grilling process, increase grilling time by approximately 10 minutes.
  • Page 15 STEP 8 Replace the No. 48 Natural gas orifice with the No. 55 LP (propane) gas orifice. Installation is the reverse. STEP 9 Use only a Holland Grill factory authorized LP (propane) hose and regulator assembly. STEP 10 Attach the regulator hose to the gas valve inlet and then attach big black plastic nut to LP tank.
  • Page 16 The Holland Grill Company, Inc. 121 Thomas Mill Road Holly Springs, NC 27540 Call 1-800-880-9766 or visit www.hollandgrill.com for a dealer near you. ©The Holland Grill Co., Inc. V2007...
