Holland Grill Patriot Instruction Manual

Charcoal grill
Hide thumbs Also See for Patriot:
Table of Contents

Advertisement

Quick Links

Download this manual

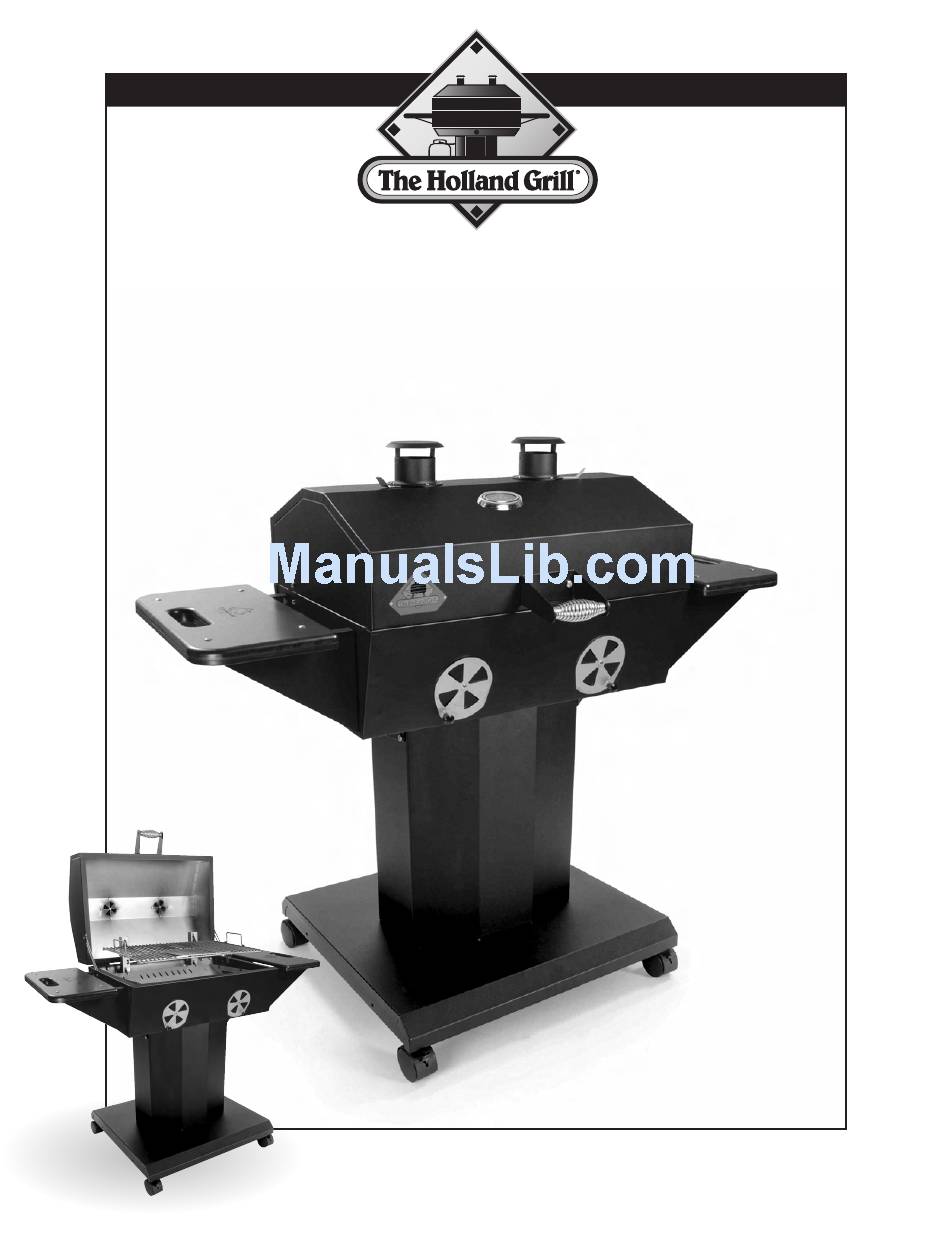

READ THIS
BOOK FIRST
Instruction Manual
The Holland
Patriot
Patriot

Charcoal Grill

BH421CG1
GRILL INSTALLER - LEAVE THIS INSTRUCTION
BOOKLET FOR THE GRILL OWNER.
GRILL OWNER - SAVE THIS INSTRUCTION
BOOKLET FOR FUTURE REFERENCE.
©The Holland Grill Co. V2010 PN CG1-MAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Patriot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Holland Grill Patriot

Summary of Contents for Holland Grill Patriot

  • Page 1: Charcoal Grill

    READ THIS BOOK FIRST Instruction Manual The Holland Patriot Patriot Charcoal Grill BH421CG1 GRILL INSTALLER - LEAVE THIS INSTRUCTION BOOKLET FOR THE GRILL OWNER. GRILL OWNER - SAVE THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE. ©The Holland Grill Co. V2010 PN CG1-MAN...

  • Page 3: Care And Maintenance

    CARE AND MAINTENANCE OF YOUR HOLLAND CHARCOAL GRILL There is very little care and maintenance needed. The Holland Grill is designed and made of materials that will last many years with normal use. Following these instructions will improve the longevity and quality of cooking.
  • Page 4 WARNING SAFETY INFORMATION PLEASE READ CAREFULLY! • Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the grill. Never use on surfaces that could burn. • DO NOT use grill without charcoal ash tray in place. DO NOT attempt to remove charcoal ash tray while tray contains hot coals.
  • Page 5 • When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen close lid to suffocate the flame. Do not use water to extinguish grease fires. • Use caution since flames can flare-up when fresh air suddenly comes in contact with fire. When opening the lid, keep hands, face and body a safe distance from hot steam and flame flare-ups.

  • Page 6: Charcoal Tray

    PATRIOT CHARCOAL GRILL ASSEMBLY INSTRUCTIONS MODEL BH421CG1 HANDLE SPRING/BRACKET ADJUSTABLE ADJUSTABLE COOKING GRID STACK VENTS GRILL TOP/LID CHARCOAL TRAY LID STOP SHELF SHELF ADJUSTABLE SUPPORT AIR VENTS BRACKET GRILL BODY BOTTOM BASE PEDESTAL GRILL BASE WHEEL CASTERS Fasteners Guide FIGURE 1 (2) #8-32 x 3/8”...
  • Page 7 CORNER BRACES FIGURE 2 Step 1. Open Boxes A. Attach the four casters. Lay grill base on its back. Place one each 3/8” flat washer onto a caster stud, insert then secure with another 3/8” flat washer, 3/8” locking washer and 3/8” nut. Tighten securely. Repeat On a flat surface (table or floor), OPEN AND EMPTY ALL BOXES.
  • Page 8 SHELF SHELF GRILL BOTTOM BRACKETS AND TOP ASSEMBLY FIGURE 3 Step 3. Attach Grill Base to Grill Bottom Shell C. Attach the (4) shelf brackets using eight 1/4 - 20 x 5/8” bolts and lock washers. Make sure that the top flange of the brackets face each other. Correct alignment will allow the shelf bracket holes to line up.
  • Page 9 FIGURE 4 STACK VENT CONTROL STACK VENT SPACER Step 5. Install the Lid Stacks Step 6. Install Charcoal Tray & Cooking Grid Refer to Figure 4. Refer to Figure 4. Select the following parts for assembly: Select the following parts for assembly: 1.

  • Page 10: Flavoring Wood

    PATRIOT CHARCOAL GRILL ASSEMBLY INSTRUCTIONS GRILLING/SEARING FLAVORING WOOD Step 1 To obtain your favorite smoke flavor, experiment by using chunks, Lightly coat all interior surfaces of the Grill including cooking grid with sticks or chips of flavor producing wood such as hickory, pecan, apple, vegetable oil or vegetable oil spray.

  • Page 11: Replacements Parts List

    HOLLAND CHARCOAL GRILL REPLACEMENT PARTS Model BH421CG1 REPLACEMENTS PARTS LIST Part No. Description Fastners CG1-100 Grill Bottom Replacements can be found at most hardware stores. SG2-301 Smoke Stacks (2) Hex Head Bolt, 1/4-20x5/8” CG1-302 Stack Spacers (2) Lockwasher, 1/4” CG1-303 Stack Vent Control (2) Hex Nut, 1/4-20 SG5-202...
  • Page 12 PATRIOT CHARCOAL GRILL ASSEMBLY INSTRUCTIONS Notes:...
  • Page 13 PATRIOT CHARCOAL GRILL ASSEMBLY INSTRUCTIONS Notes: P-10...
  • Page 14 The Holland Grill Company, Inc. 121 Thomas Mill Road Holly Springs, NC 27540 Call 1-800-880-9766 or visit www.hollandgrill.com for a dealer near you.
  • Page 15 Your Holland grill, when subjected to normal residential use, is warranted to the original purchaser to be free from factory defects in workmanship and materials. • All parts of the Holland Patriot Charcoal Grill are warranted against rust-through or burn-out to the original purchaser, for one-year from the date of purchase.
  • Page 16 (please consult your use & care manual), or failure to follow local codes. Product repair or parts replacement at the option of the Holland Grill Co. is the exclusive remedy under this warranty. The Company shall not be liable for any incidental or consequential damages resulting from the use or transportation of any Holland grill, or for breach of any express or implied warranty on the Holland grill.

This manual is also suitable for:

Patriot bh421cg1
