Hootoo IP Wireless / Wired Camera User Manual page 20

terminal
Output terminals
Touch switch
External shell
Size/ Weight 106mm x 92mm x 29mm 170G
Supply Power DC +12V/0.3A
LED display

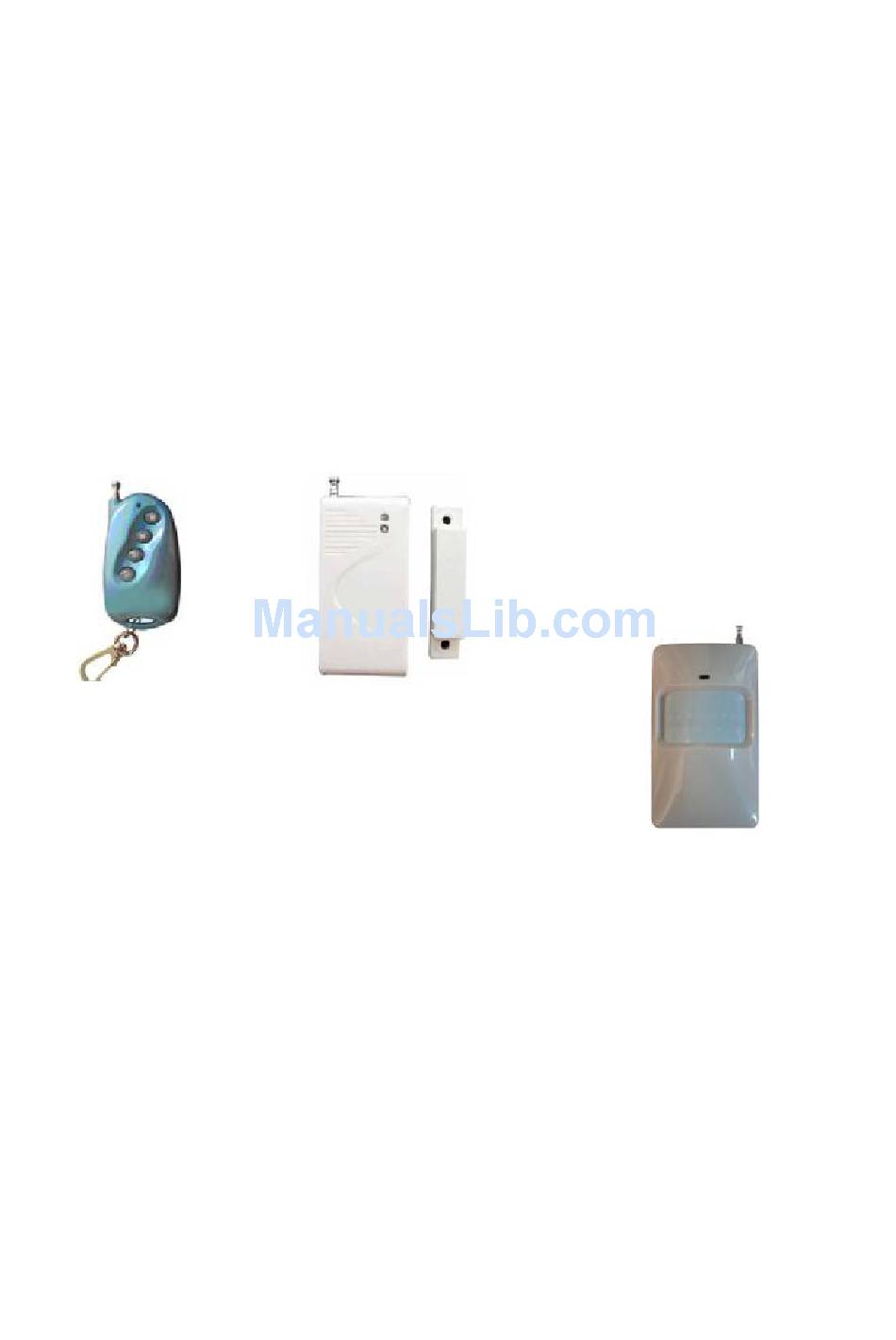

Matching alarm device：
Matching alarm device：
Arm and withdraw garrison remote controller
Concrete settings please refer to linkage alarm host help instruction
No.4pin， No.5pin connect12V or 5V （selected） No.2pin
connect low-level input current， No.5pin connection output
Relay output 1 Router + 12V/0.3A，External
connection siren
Code use
aluminum alloy
Code display
Wireless Magnetic Door Infrared detector
20
