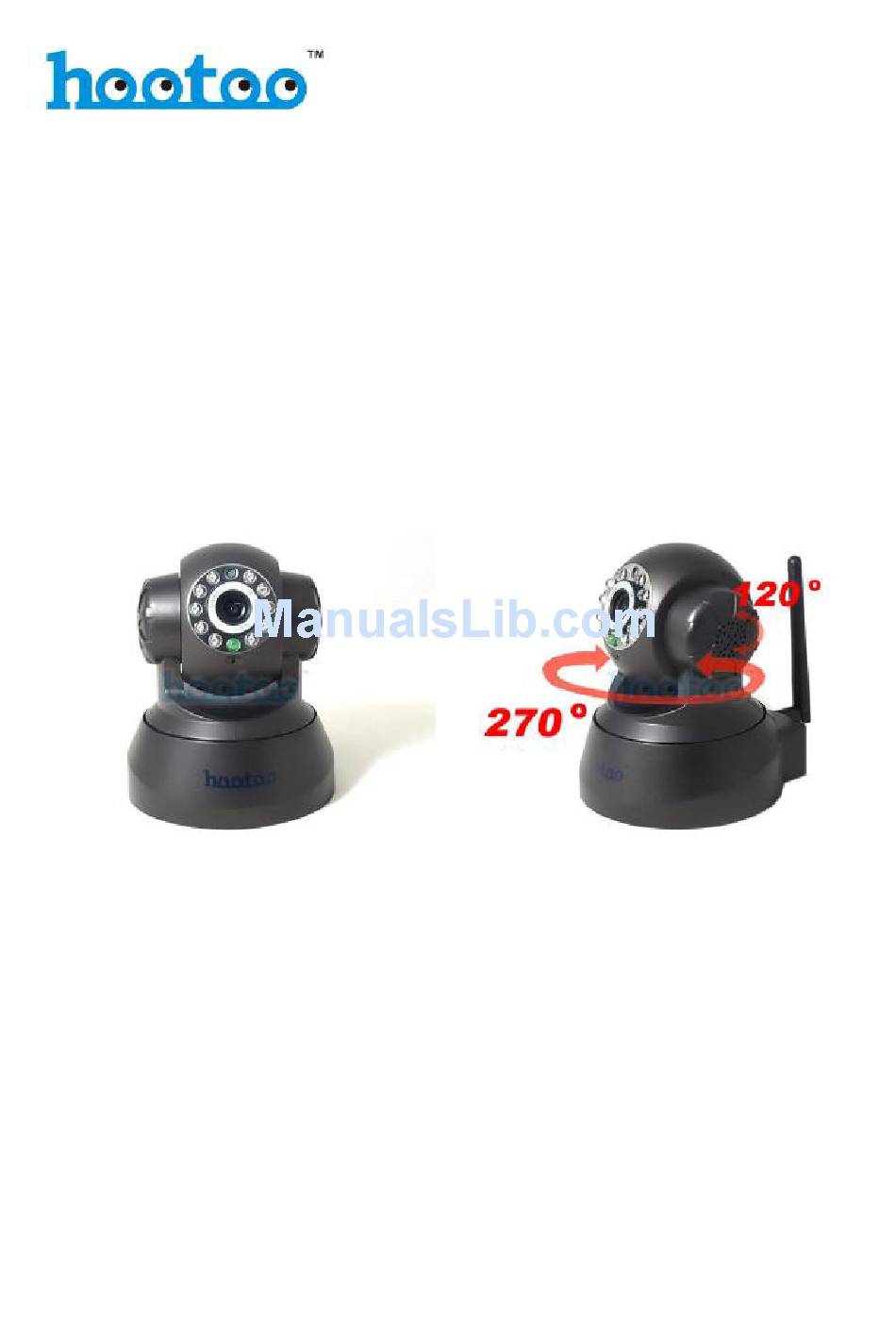

Hootoo IP Wireless / Wired Camera
Product Components and Features
IP camera ------------------------------------------------------------------1 PC
Bracket（optional）-----------------------------------------------------1 PC
Power adapter------------------------------------------------------------ 1 PC
Warranty-Card------------------------------------------------------------------------1PC
CD--------------------------------------------------------------------------------------1PC
REMOTE PAN/TILT ROTATE
User Manual
:
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hootoo IP Wireless / Wired Camera
Summary of Contents for Hootoo IP Wireless / Wired Camera
-
Page 1: User Manual
Hootoo IP Wireless / Wired Camera REMOTE PAN/TILT ROTATE User Manual Product Components and Features IP camera ------------------------------------------------------------------1 PC Bracket（optional）-----------------------------------------------------1 PC Power adapter------------------------------------------------------------ 1 PC Warranty-Card------------------------------------------------------------------------1PC CD--------------------------------------------------------------------------------------1PC... -
Page 2: Table Of Contents
Table of CONTENTS ¾ General Introduction ....................3 1.1. Product Specifications ..................... 3 1.2. Applications ..................... . . … …. . . 4 1.3. System Requirements....................5 ¾ 2. Interface & Installation ..................5 2.1. Interface ......................…. . … . 5 2.2. -
Page 3: ¾ General Introduction
5.1. Warranty Terms ..................... …. 2 1 5.2. Warranty Card....................22 General Introduction IP Camera is a new generation product with the combination of analog camera & IP video technology. Despite all functions which analog cameras have, IP camera can compress and encrypt video and audio signal then send it to remote terminals through internet with its built-in processor and web server. -
Page 4: Applications
Parameters Form Image Compression Format Standard M-JPEG Sensor CMOS，300,000 pixel Image Resolution Rate VGA（640x480）/QVGA（320x240） RJ-45/10-100 Base T ，802.11b/g Network interface Network protocol TCP/IP,FTP,SMTP,HTTP,UDP,DHCP,NTP,DDNS,UPNP,D NS,PPPOE 30 frame/second（QVGA）, 15 frame/second（VGA） Image Max Transmission Rate Output： 1 router（5VDC， 0.1A） ； input： 1 router（closure Trigger） Alert control Motion Detection Support... -
Page 5: System Requirements
1.3. System Requirements Minimum Hardware Configuration CPU: Pentium 1.6 GHz Memory: 256MB Audio card: need audio monitor, two way talkback essential Hard Disk : if it need video image，no less favorable than 40G Operation System: 32 bit simple/ English Windows2000、WindowsXP、 Windows2003、 Windows Vista &... -
Page 6: Installation
Power Supply Light: constant on after power up Network light: constant sparkle after power up data transmission. Ethernet interface: RJ-45 interface. I/O interface: 1 router alarm input, accept 3, 4 two terminals (input terminal grounding, low level effective trigger); 1 router TTL control input, connect 1,2 two terminals (1,2 terminals short connections). -
Page 7: Pppoe Installation
2.2.2. PPPoE Installation Under the condition, users need set PPPoE dialing parameter on IP Camera: input the username and password ISP supplier’ offer permit IP Camera dialing connects to Internet. As to set the PPPoE dialing parameter, you can connect device to network through the first way, then write parameter to the device, also through following third way, direct process parameter written to device. -
Page 8: ¾ 3. Ie Browse To Ip Camera
minute modification of IP camera, video could be connected by internet cable to IP camera; under the normal condition, yellow light is on, green light flickers, now physical connection of IP camera finish at this time (in order to connect successfully, we advise to set camera IP as the stable IP at the same net range of PC in LAN , how to set, please refer to 8 frequent questions answer). -
Page 9: Logging And Active X Installation
If the internet cable power connect is correct, it appears device styles, name, and IP address in the device list, (if it doesn’t appear, please confirm power & internet cable work normally). As the interface, left side is the current computer configuration information; right side is the selected device network configuration information. - Page 10 After this done, the icon “IP Camera Tool” will be displayed on desktop automatically . 2. Open web page，you can click open button behind inner visit address or outer visit address in the search bar directly, also directly input relatively inner and outer visit address in web page address bar, like the above photo address http://192.168.1.128 （LAN），http://aodn.aipcam.com（WAN）...
-
Page 11: Operation Button
Select the needed language, enter log in information, click OK to enter, an installation pop-up will appear, after installation and you can use it. If it is blocked and requires plug-in installation by antivirus software, please remove block Note： 1. Default device account is admin，no password. 2.M series IP camera doesn’t support Firefox browser，but F series support. -
Page 12: Operation
3.3.3. Operation 1. Image mirror indicates a reverse image. 2. Resolution, mode, brightness, contrast default setting are： 320*240、 50HZ、 6、 4， mode is mainly for the adjustment of Light strength, please adjust to 60HZ when light is poor or in dark. 3. -
Page 13: Device Information
1）the right interface will indicate the parameter setting operation is successful, please click OK then refresh. 2) the right interface will indicate the parameter setting operation is successful, and need restart to finish setting, please click OK. If system indicates to restart (as right photo), please single click yes (Y) and then enter again. -
Page 14: Device User Settings
From this interface, you can adjust time through NTP server or PC. 3.4.4. Device User Settings User can proceed with setting according to the interface below. The system is available for administrator, operator, visitor, and the authority will in turn. Note: At least one administrator is needed for the device;... -
Page 15: Adsl Settings
In the wireless networking setting, there are 5 security modes: None、 WEP、 WPA Personal （ TKIP） 、 WPA Personal （ AES） 、WPA2 Personal （ AES） 、WAP2 （TKIP+AES）. Note： 1. T o connect internet through wireless network, the camera SSID must be the same with the wireless router and other AP device SSID number, 2. -
Page 16: Ftp Service Settings
The above setting is a preparation for the alarm function, the sender should be entered the sender’s email address， recipient 1、 2、 3、 4 is filled with recipient E-mail address；SMTP server should be filled with the sender email SMTP server ， e.g. the sender email address is abc@163.com，... -
Page 17: Reset/Firm Ware Upgrade
When triggered, there are 3 alarm modes：one is IO alarm linkage, camera connects with ； the linkage alarm through GPIO, sound siren second email notification, send email with images captured； the last is upload pictures alarm， as the way mentioned before FTP upload pictures alarm, Upload pictures interval（second） keeps consistent with the mentioned upload pictures interval of Ftp service settings. -
Page 18: Reboot Equipment
3.4.15 Reboot Equipment Click restart, it appears the above picture, click ok, wait for 1 minute and you can use it normally. 4. Others 4.1. Port Forwarding Settings in router When a remote access via internet visit, port forwarding in router is a must, different brands routes have different name, but the operation is the same. -
Page 19: Linkage Alarm Host
“80” 4. fill under right port start or port end, Server address fill "192.168.1.50", protocol select "TCP/UDP"OR”“TCP”, finally don’t forget click under “"save/apply” Detailed information please refer to following photo: When complete port forwarding, you can visit camera through device code in outer net remotely; Common router default visit address 1. - Page 20 No.4pin， No.5pin connect12V or 5V （selected） No.2pin terminal connect low-level input current， No.5pin connection output Relay output 1 Router + 12V/0.3A，External Output terminals connection siren Touch switch Code use External shell aluminum alloy Size/ Weight 106mm x 92mm x 29mm 170G Supply Power DC +12V/0.3A LED display Code display...
-
Page 21: Frequently Asked Questions
4.3．Frequently Asked Questions Asked：Why I can not find our camera when using search bar ? Answer: 1. Please checks whether IP camera and search bar locate in the same LAN network; 2. Internet cable or power connection problem also leads to 【under normal phenomenon, power light (yellow) constant on, network light (green) constant sparkle】... - Page 22 5. Warranty Under normal use condition, products resulting from its own Failures in the warranty period will be free maintenance 5.1. Warranty Terms a) Charge-free maintenance of the product is one year. We can repair it for free during the guarantee period (Damages not caused by misuse or vandalism).
- Page 23 5.2. Warranty Card Manufacturing Date： Product Specification： Inspector： ： Version number Product Model Sale Dates User Company User name Customer Address Contact Number Results of Maintain Date Failure Conditions Maintenance Remark： Note：Please fill the card and offer it with products if guarantee of repair...
