In the wireless networking setting, there are 5 security modes: None、 WEP、 WPA Personal
（ TKIP） 、 WPA Personal （ AES） 、WPA2
Note：
1. T o connect internet through wireless network, the camera SSID must be the same
with the wireless router and other AP device SSID number,
2. Our default camera SSID is dink.

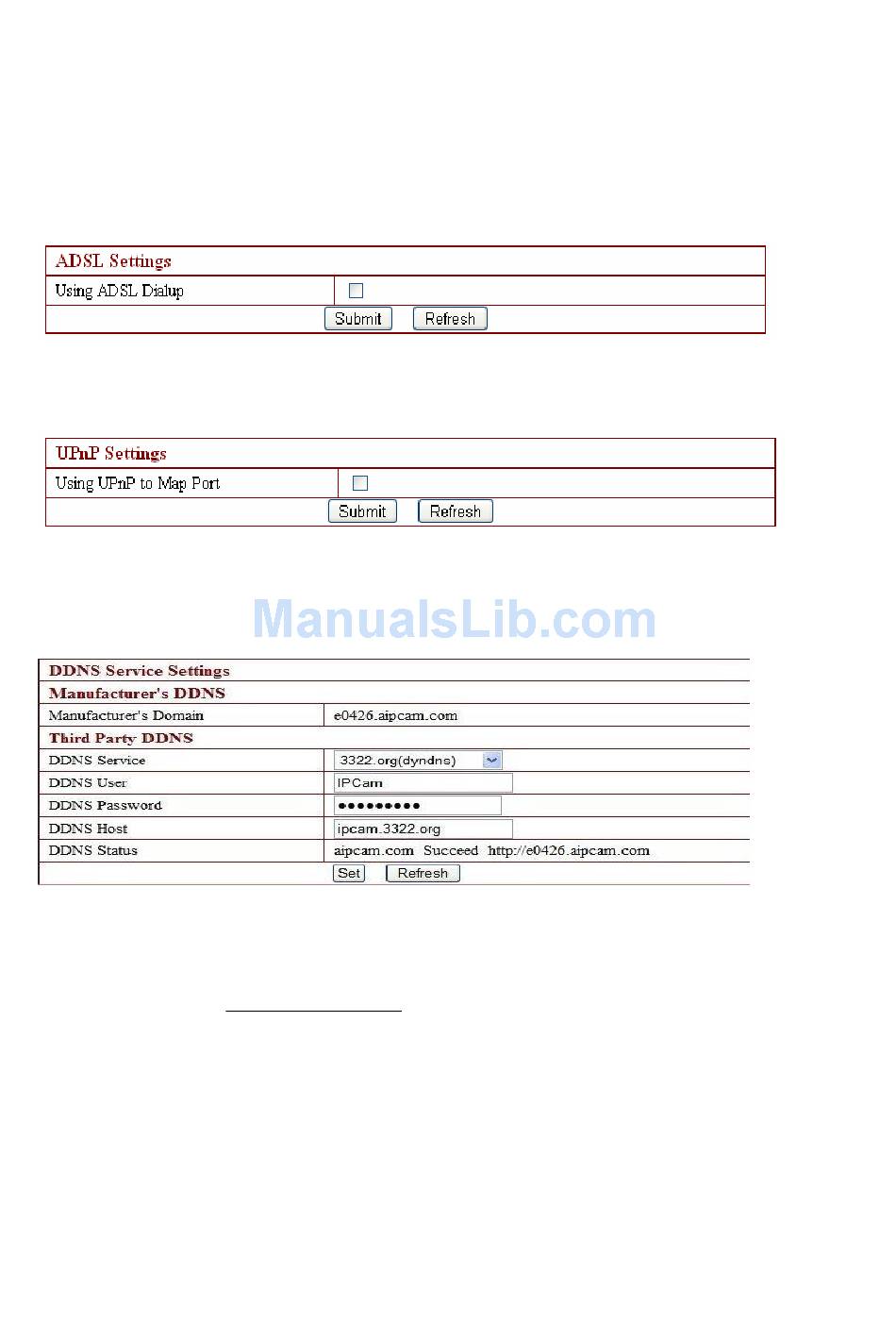

3.4.7. ADSL Settings

When camera needs to connect with ADSL directly, just tick the ADSL box to run, then enter the
ADSL user and ADSL password that provided by ISP (network suppliers), and click to save;

3.4.8. UPnP Settings

The full name of UPnP is Universal Plug and Play，just plug and play, it refers to automatic
port forwarding. If users need to use this function, router must support this function and run it, just
tick the box;

3.4.9. DDNS Settings

All the above information is set up when the device is ready to deliver; users generally do not
need to change. In case of any accidental loss, user needs to re-obtain the domain name, and fill it
himself, juts do as the above, the user's name is just the first four characters, and this is for remote
access. For example, http://abcd.ipcam.hk, the user's name is abcd. The password is DDNS. (The
password can be obtained on the device body or contact the supplier). When connected, it
displays "xxxxx is OK" on DDNS state; it means that it was successfully set. If you need to use
your own Dynamic DNS, please select the appropriate service providers (on DDNS service)
then enter the following information, then save it;.
3.4.10

SMTP Settings

.
Personal （ AES） 、WAP2 （TKIP+AES）.
15
